Installation Procedure

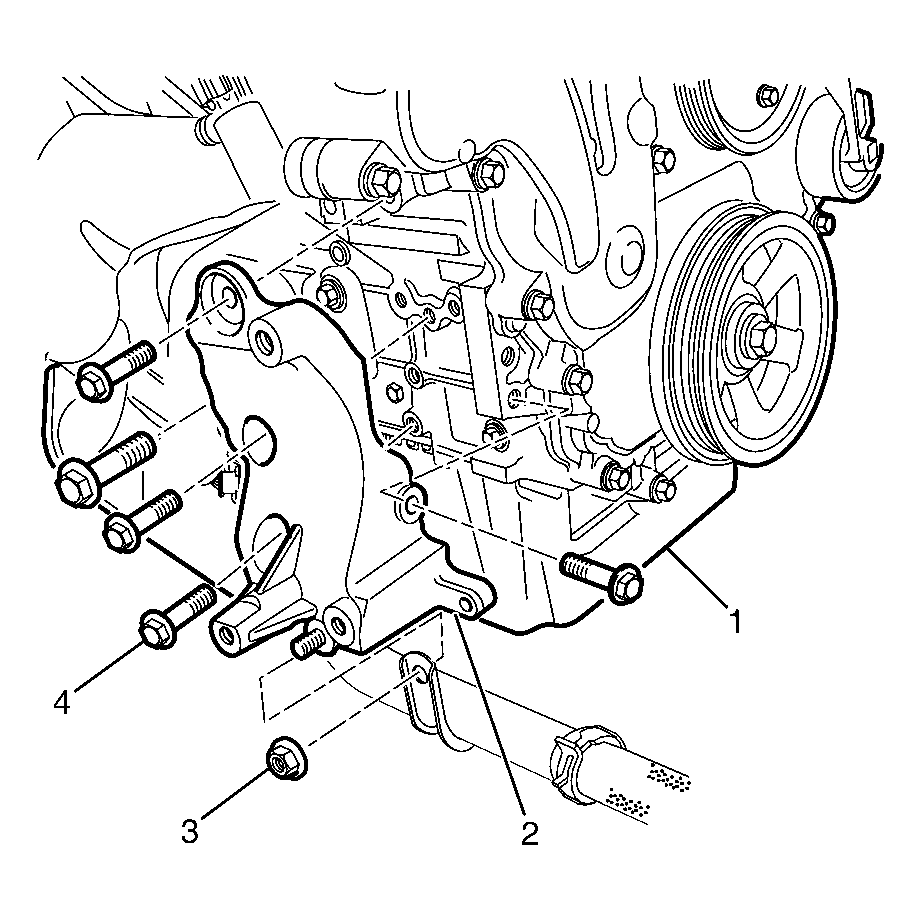

    Fig 1: Identifying Alternator Mounting Bracket To Cylinder Block Retaining Bolts
    GM1958079Courtesy of GENERAL MOTORS CORP.
  1. Install the alternator bracket (2) to the engine block.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the alternator bracket to engine block retaining bolts and tighten to 50 N.m (37 lb ft).
  3. Install the coolant inlet pipe to alternator mounting bracket retaining nut (3) and tighten to 22 N.m (16 lb ft).
