Removal Procedure

  1. Remove the cargo area centre carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .
  2. Remove the left-hand cargo area carpet side. Refer to Rear Compartment Side Trim Panel Replacement .
    3. Fig 1: Identifying Battery Positive & Negative Cables
    GM1949822Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
    NOTE: Clean any existing corrosion from the battery terminal and the battery cable end.
  3. Remove the battery negative cable to battery terminal retaining nut (1) from the battery terminal.
  4. Remove the battery negative cable (1) from the battery terminal.

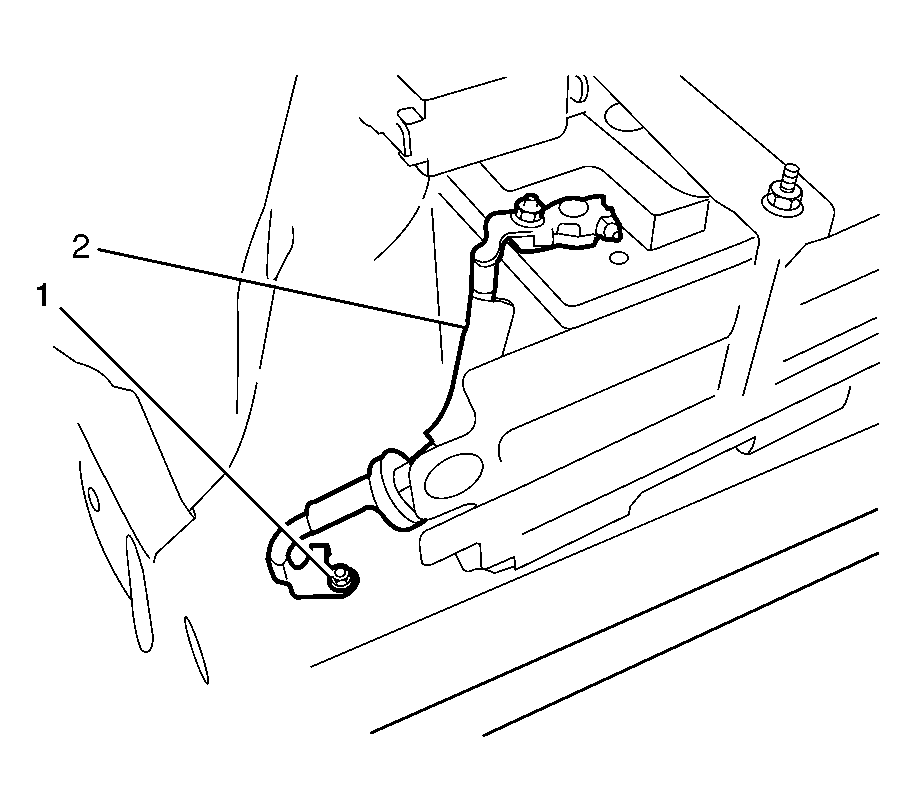

    5. Fig 2: Identifying Battery Negative Cable To Chassis Retain Bolt
    GM1949824Courtesy of GENERAL MOTORS CORP.
  5. Remove the negative battery cable to chassis retaining bolt (1).
  6. Remove the negative battery cable from the vehicle (2).
