Removal Procedure

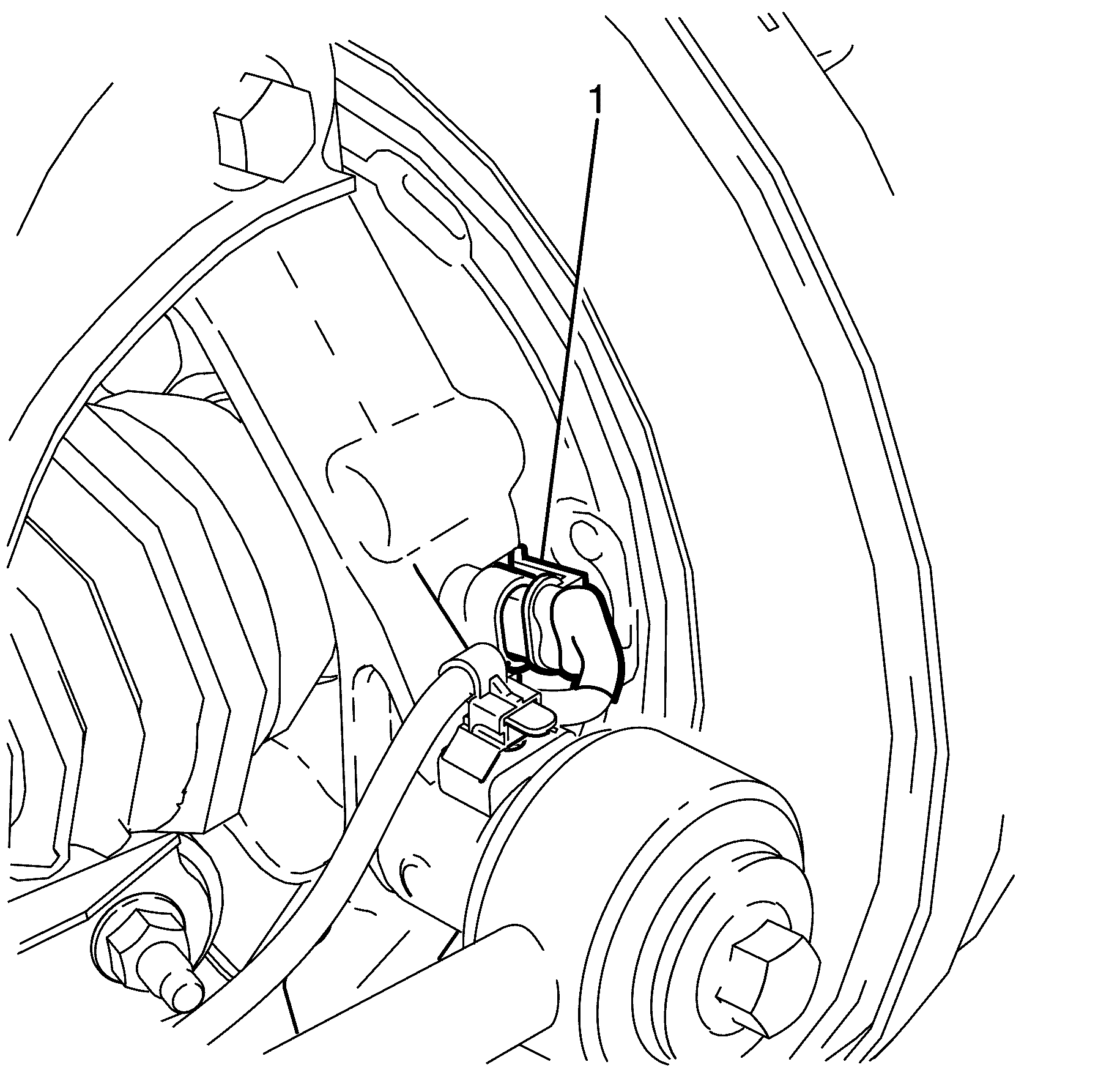

    Fig 1: Identifying Wheel Speed Sensor Jumper Harness Electrical Connector
    GM1943660Courtesy of GENERAL MOTORS CORP.
    WARNING: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.
    WARNING: Refer to Safety Glasses Warning .
    WARNING: Refer to Brake Dust Warning .
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear wheels. Refer to Tire and Wheel Removal and Installation .
  3. Disconnect the wheel speed sensor electrical connector (1).

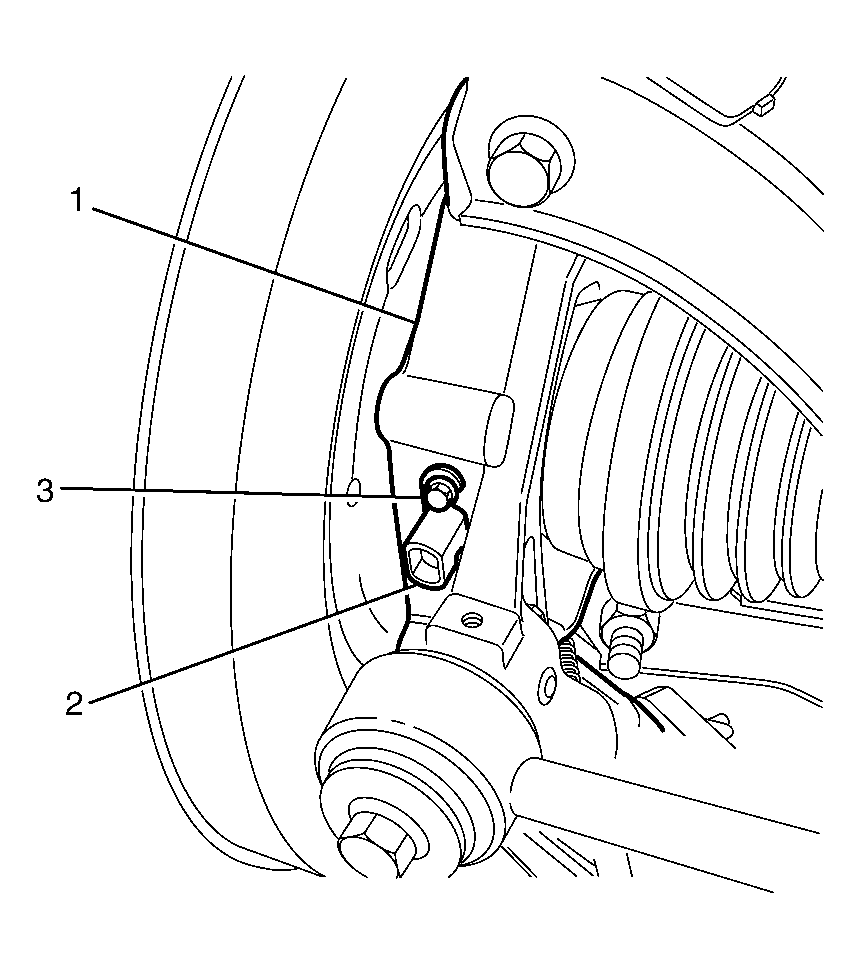

    4. Fig 2: Identifying Wheel Speed Sensor
    GM1943659Courtesy of GENERAL MOTORS CORP.
  4. Remove the wheel speed sensor to knuckle retaining bolt (3).
  5. Remove the wheel speed sensor (2) from the knuckle (1).
