Installation Procedure

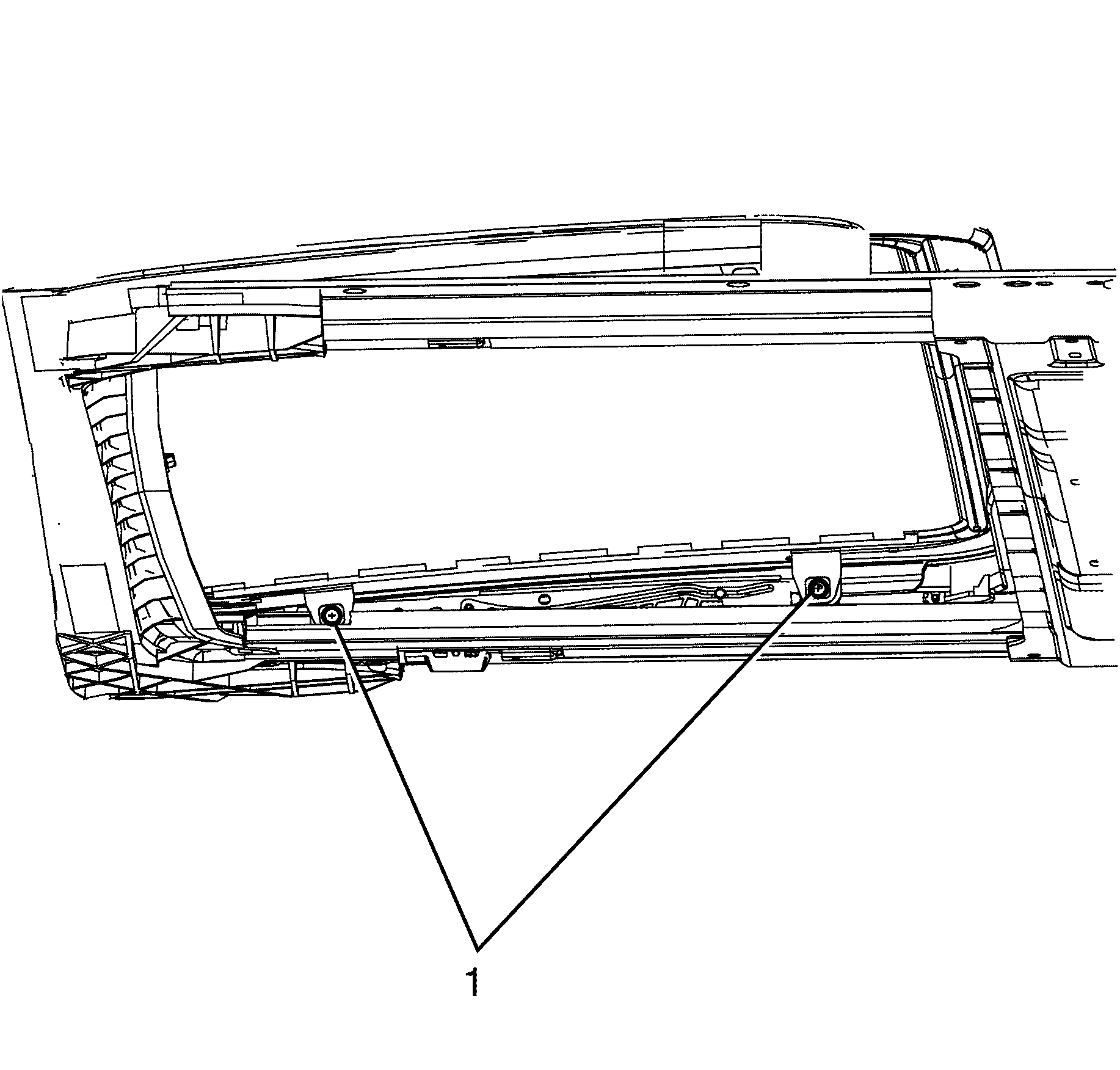

    Fig 1: Identifying Sunroof Window To Sunroof Module Retaining Screws
    GM1939015Courtesy of GENERAL MOTORS CORP.
  1. Position the sunroof window (3) into the opening, with the window trade mark pointing rearward.
    2. NOTE: Do not fully tighten the sunroof window to sunroof module retaining screws (1) at this stage.
  2. Install the sunroof window to sunroof module retaining screws (1).

    Do not fully tighten at this stage.

  3. Carefully close the sunroof window from the vent position to the fully closed position.
  4. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment .
  5. Install the sunroof panel side opening covers. Refer to Sunroof Panel Side Opening Closeout Cover Replacement .
  6. Close the sunshade.
  7. Cycle the sunroof window to make sure proper operation and fit.
