Installation Procedure

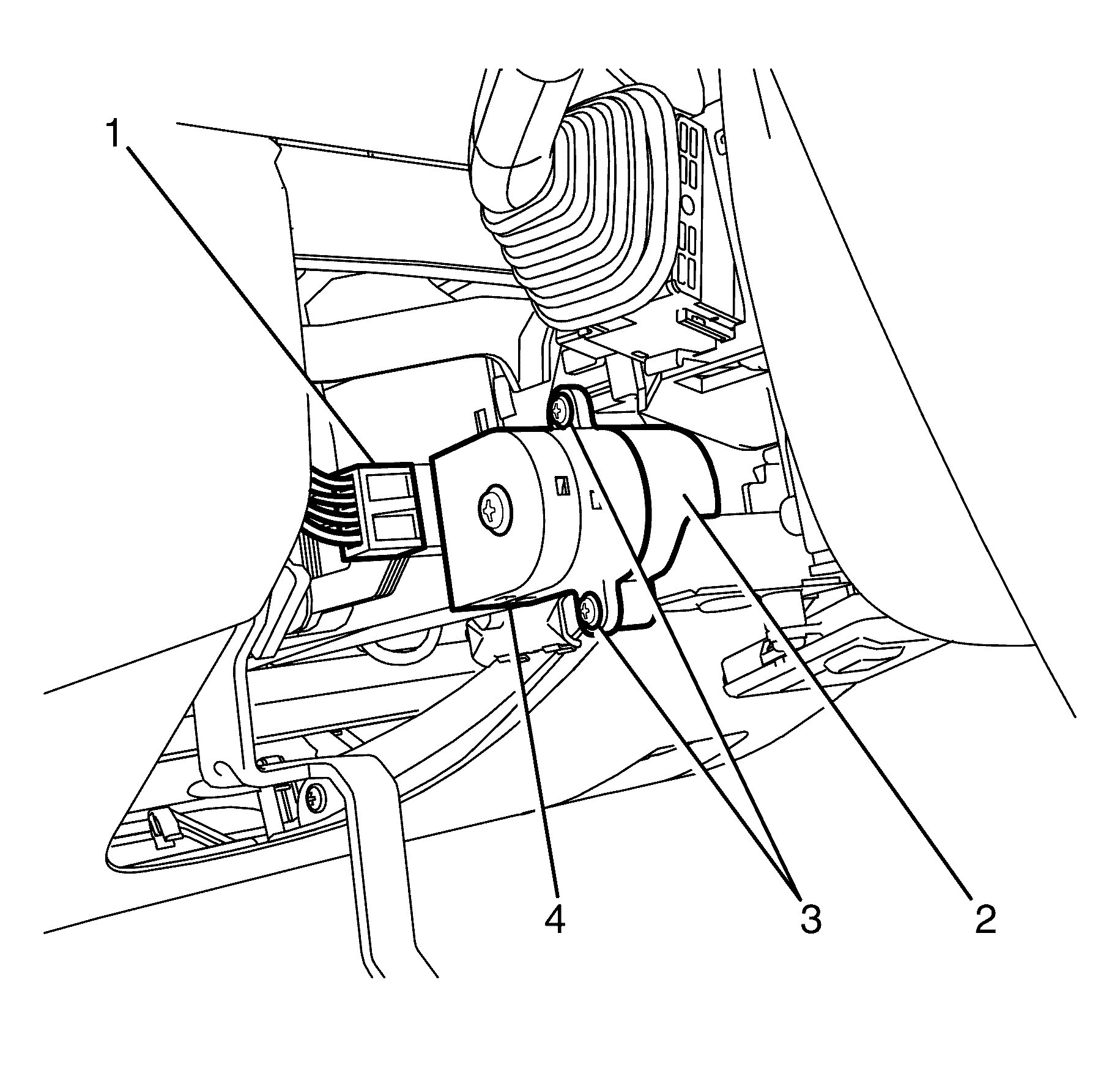

    Fig 1: Identifying Ignition Switch With Electrical Connector & Steering Column Assembly
    GM1959842Courtesy of GENERAL MOTORS CORP.
    NOTE: The ignition switch groove must be correctly aligned with the ignition lock cylinder tongue.
  1. Install the ignition switch (4) to the steering column assembly (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ignition switch using the steering column assembly retaining screws (3) and tighten to 3 N.m (27 lb in).
  3. Connect the ignition switch electrical connector (1).
  4. Install the Steering Column Trim Covers. Refer to Steering Column Trim Cover Replacement .
  5. Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
  6. Enable the SIR system. Refer to SIR Disabling and Enabling Disabling the SIR in SIR.
