Installation Procedure

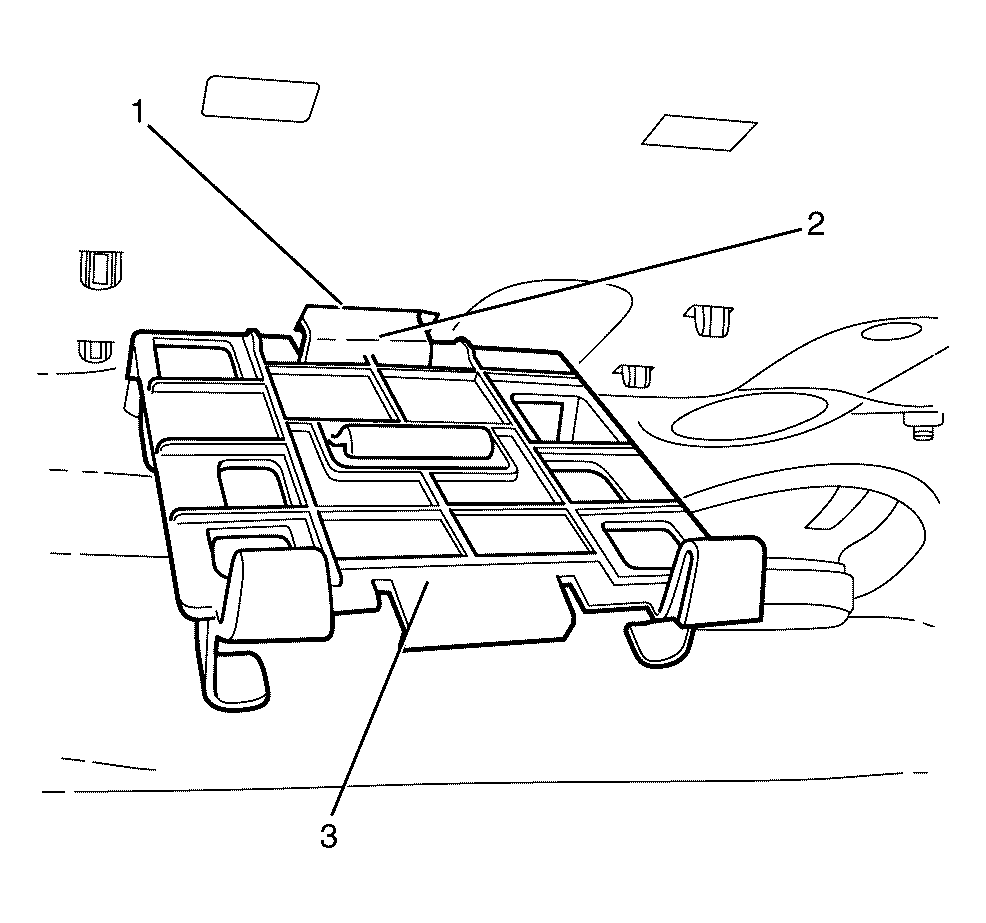

- Install the digital radio receiver bracket (3) to the vehicle.
- Slide the digital radio receiver bracket retainer (2) into the body slot (1).
- Apply suitable upward pressure to the digital radio receiver bracket (3) to engage the digital radio receiver bracket to body retaining clips (2).
- Install the digital radio receiver module. Refer to Digital Radio Receiver Replacement .
NOTE:
Listen for an audible click to confirm correct installation of the digital radio receiver bracket to body retaining clips (2).
