Powertrain Component Views (L76)

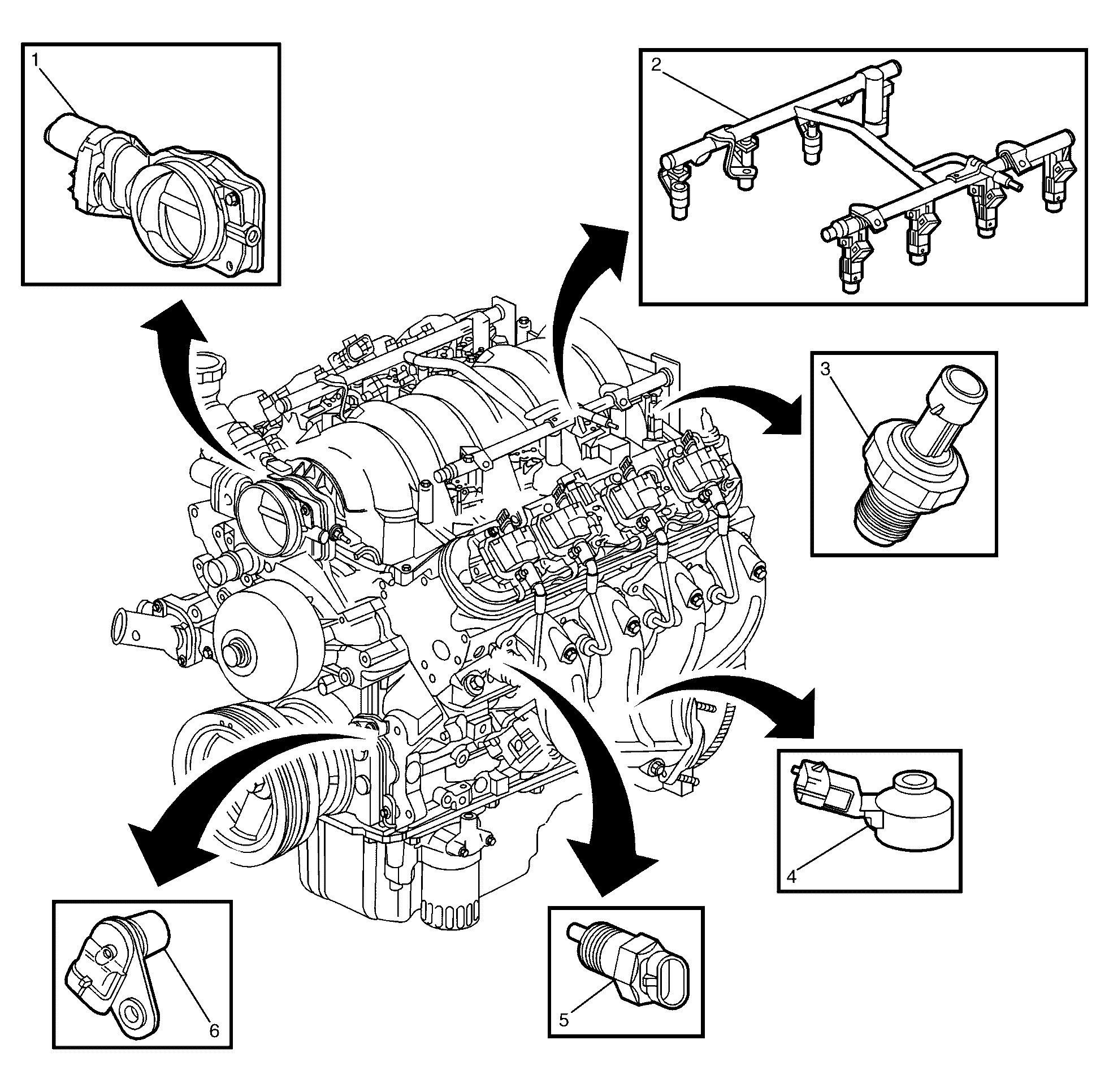

Fig 1: Left Front Of Engine
GM1962322Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Body Assembly
2 Fuel Injectors
3 Oil Pressure Sensor
4 Knock Sensor-Left
5 Engine Coolant Temperature Sensor
6 Camshaft Position Sensor

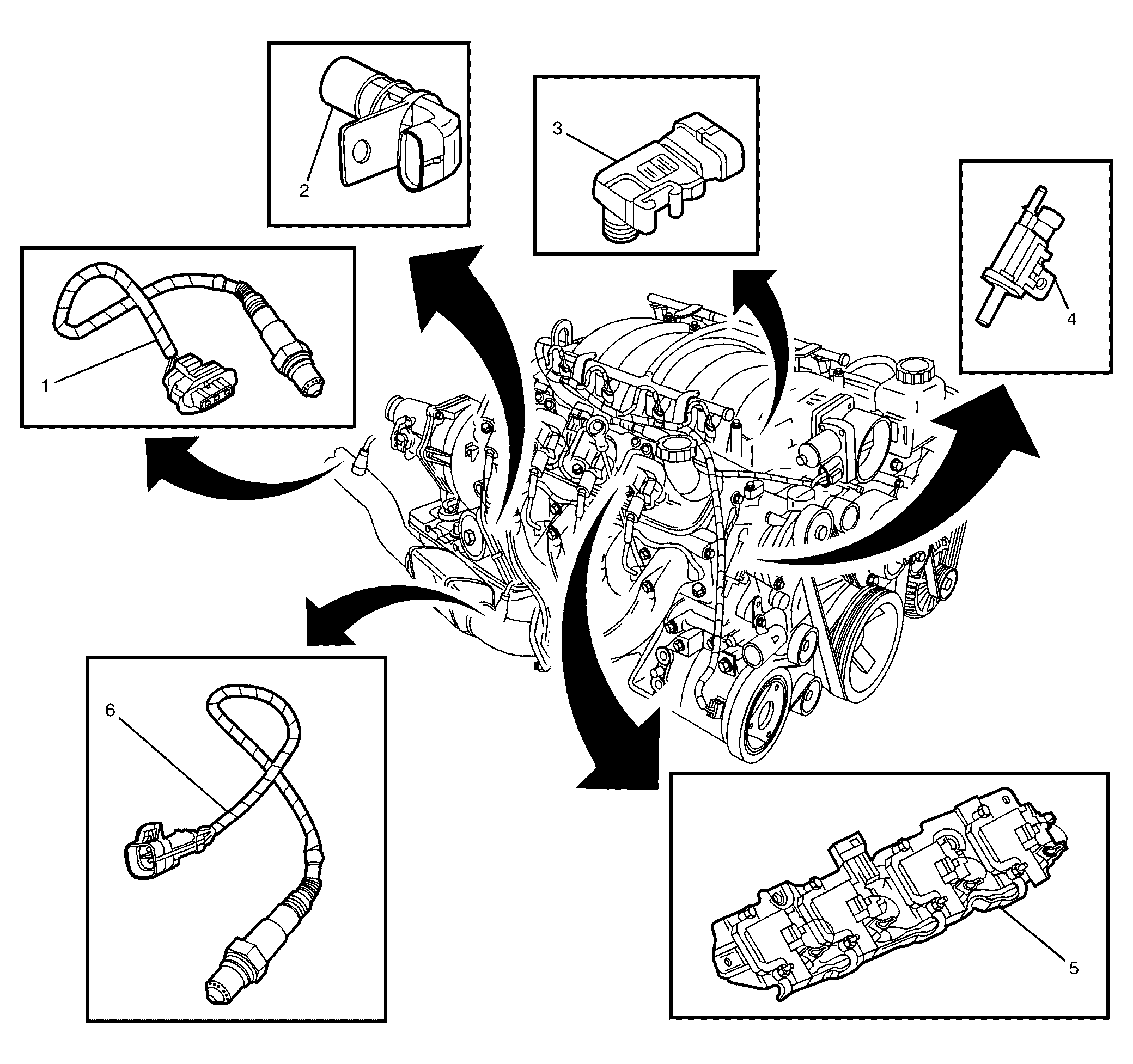

Fig 2: Right Front Of Engine
GM1962326Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HO2S Sensor Bank 2
2 Crankshaft Position Sensor
3 MAP Sensor
4 EVAP Canister Purge Valve
5 Ignition Coil Assembly
6 HO2S Sensor Bank 1

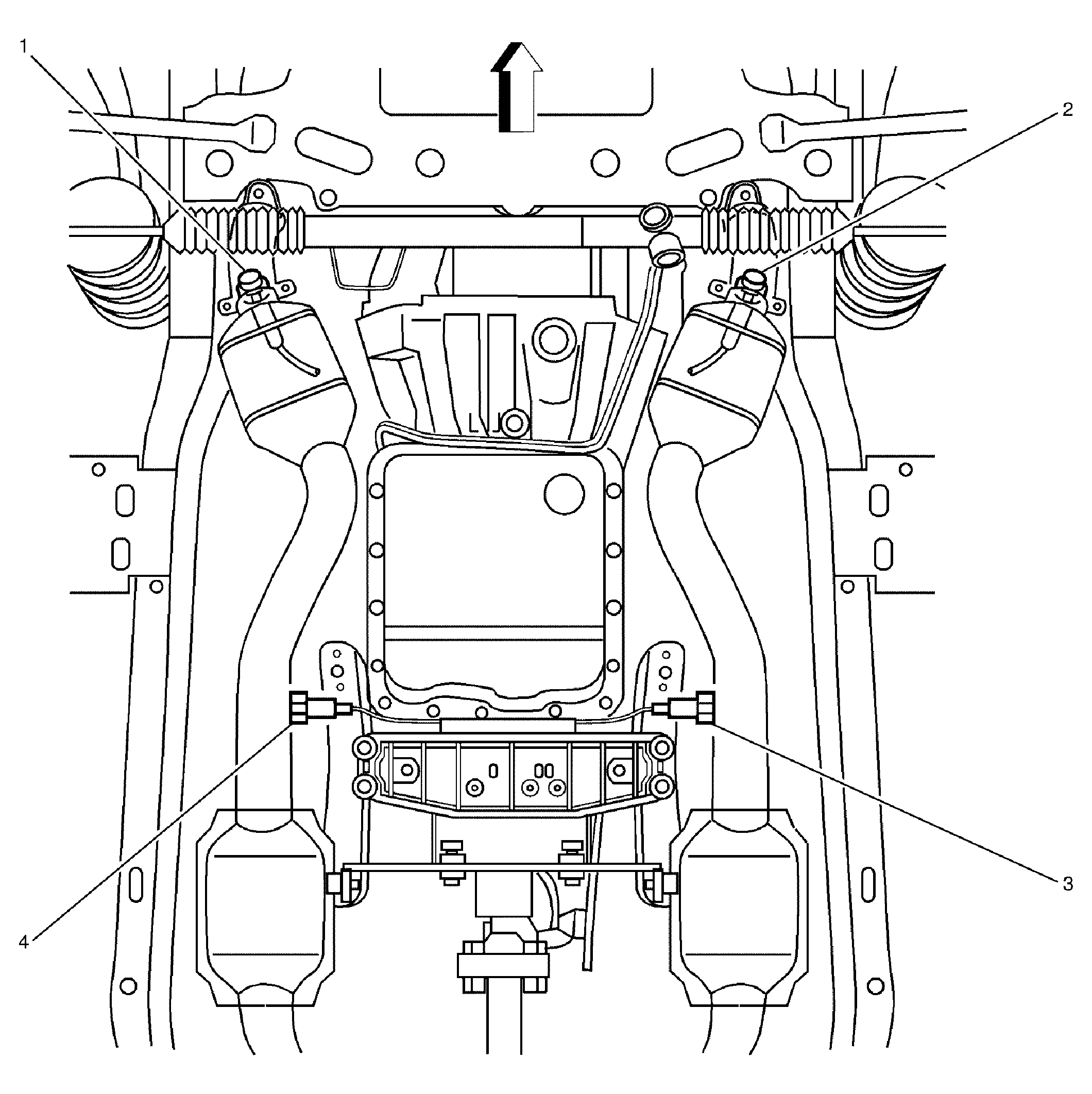

Fig 3: Heated Oxygen Sensors
GM1962323Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor Bank 1 Sensor 1
2 Heated Oxygen Sensor Bank 2 Sensor 1
3 Heated Oxygen Sensor Bank 2 Sensor 2
4 Heated Oxygen Sensor Bank 1 Sensor 2
