Passenger Compartment/Roof Component Views

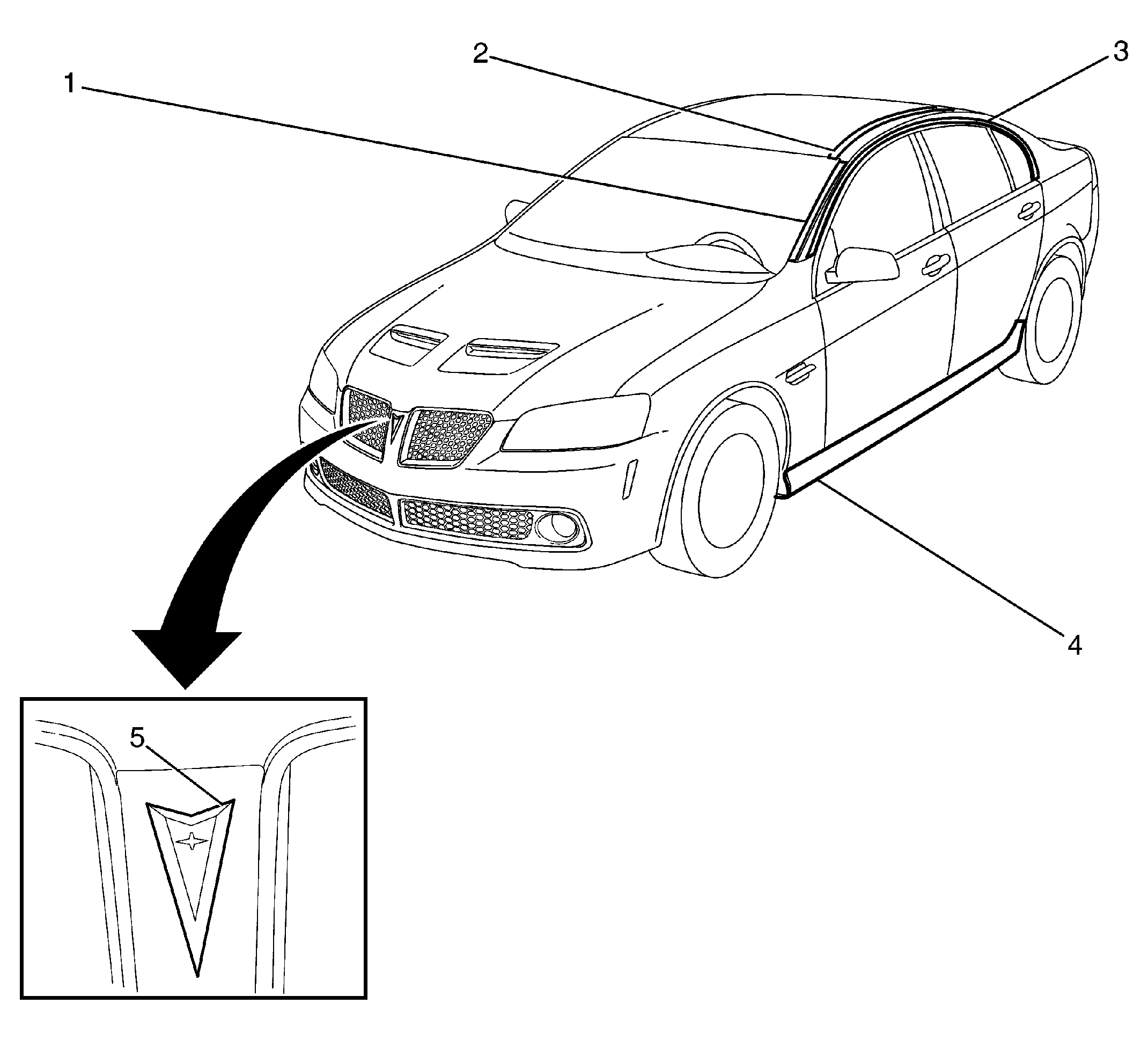

Fig 1: Exterior Trim G8

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Pillar Garnish Molding
2	Roof Weld Joint Reveal Molding
3	Body Side Roof Drip Molding
4	Rocker Panel Molding
5	Front Emblem/Nameplate

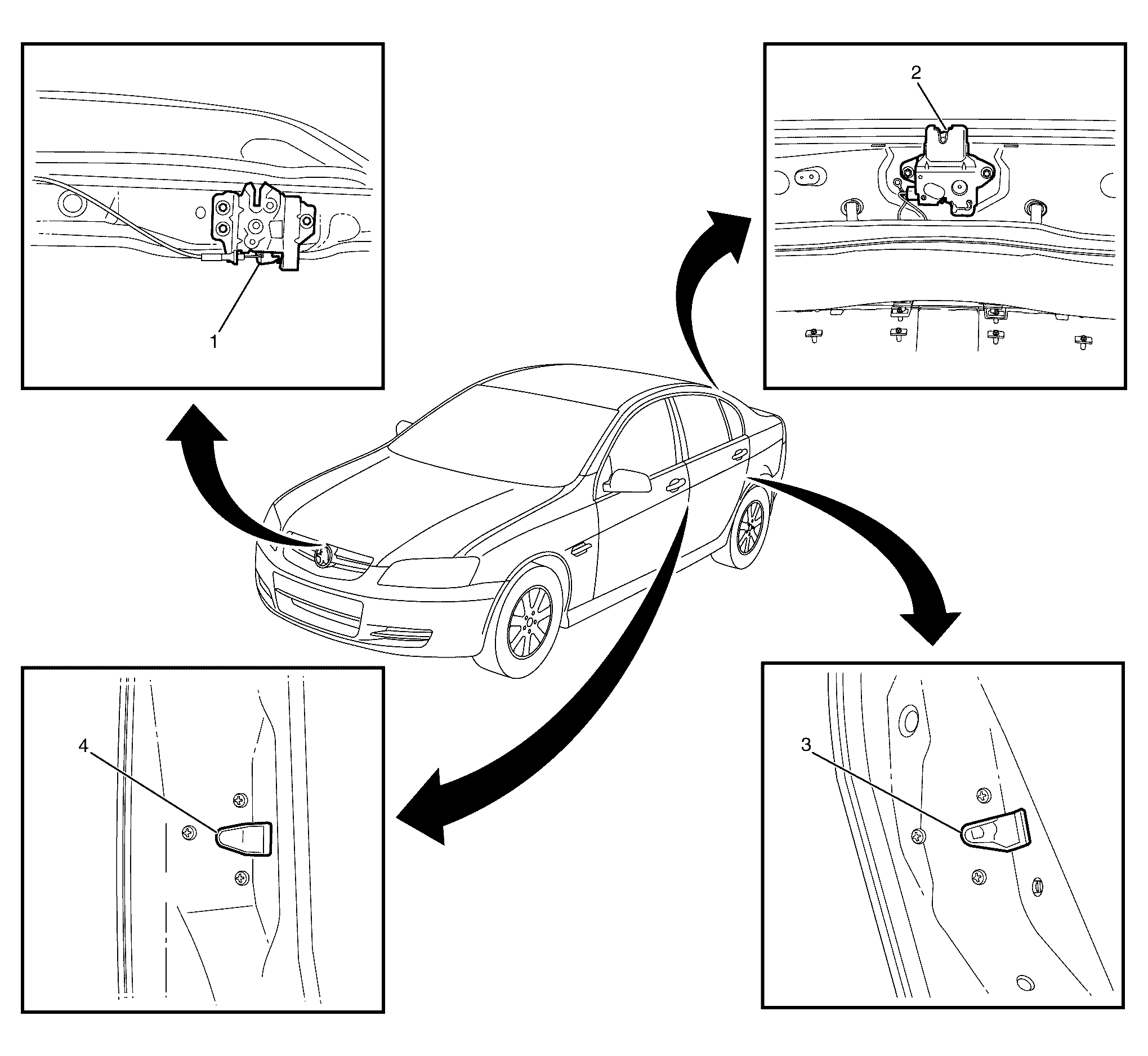

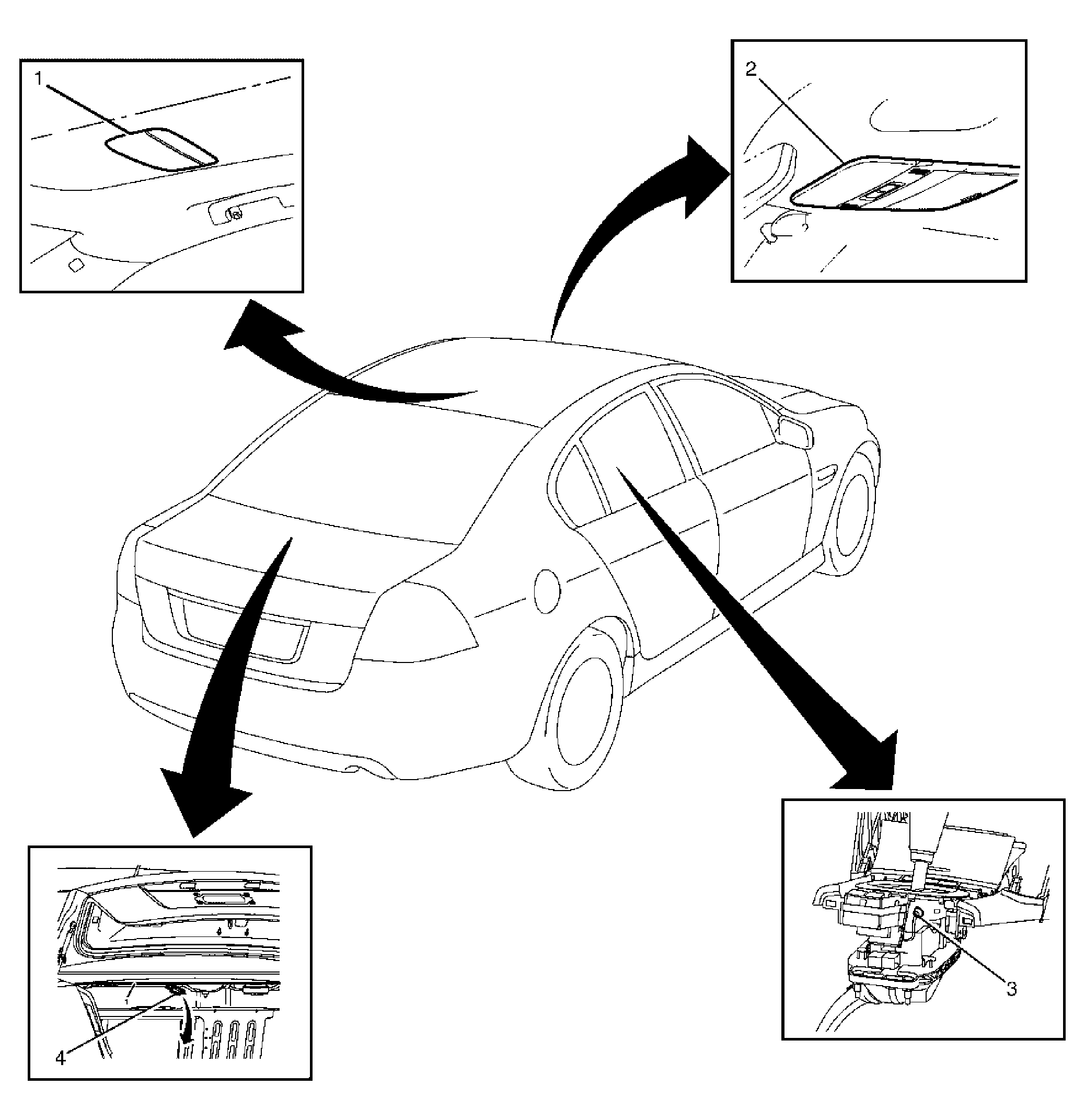

Fig 2: Hood Latch Assembly, Trunk Latch Assembly, Front Door Latch Assembly and Rear Door Latch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Latch Assembly
2	Trunk Latch Assembly
3	Front Door Latch Assembly
4	Rear Door Latch Assembly

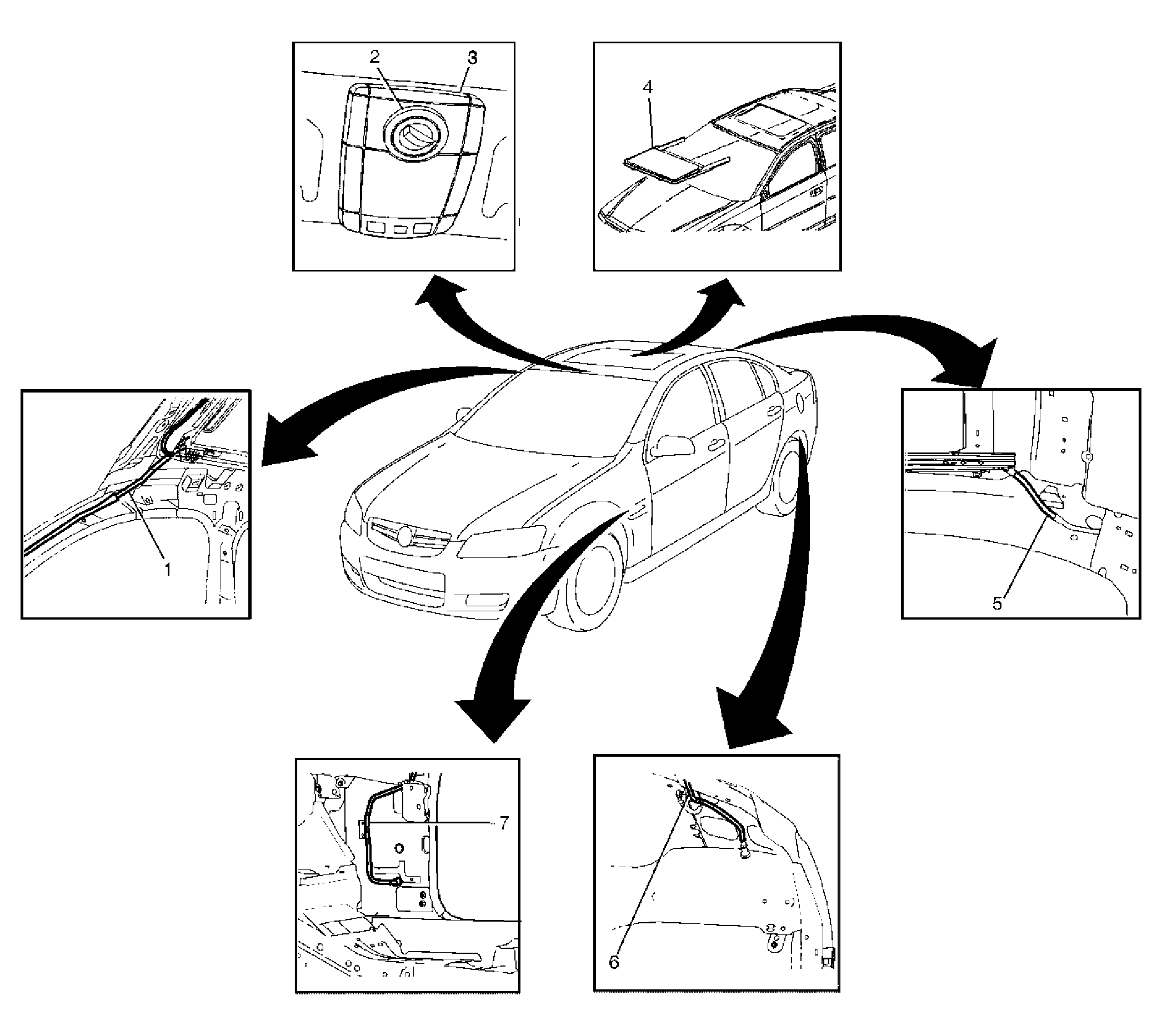

Fig 3: Roof Subsystem Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Housing Front Drain Hose (Upper)
2	Sunroof Control Switch
3	Overhead Console
4	Sunroof Module
5	Sunroof Housing Rear Drain Hose (Upper)
6	Sunroof Housing Rear Drain Hose (Lower)
7	Sunroof Housing Front Drain Hose (Lower)

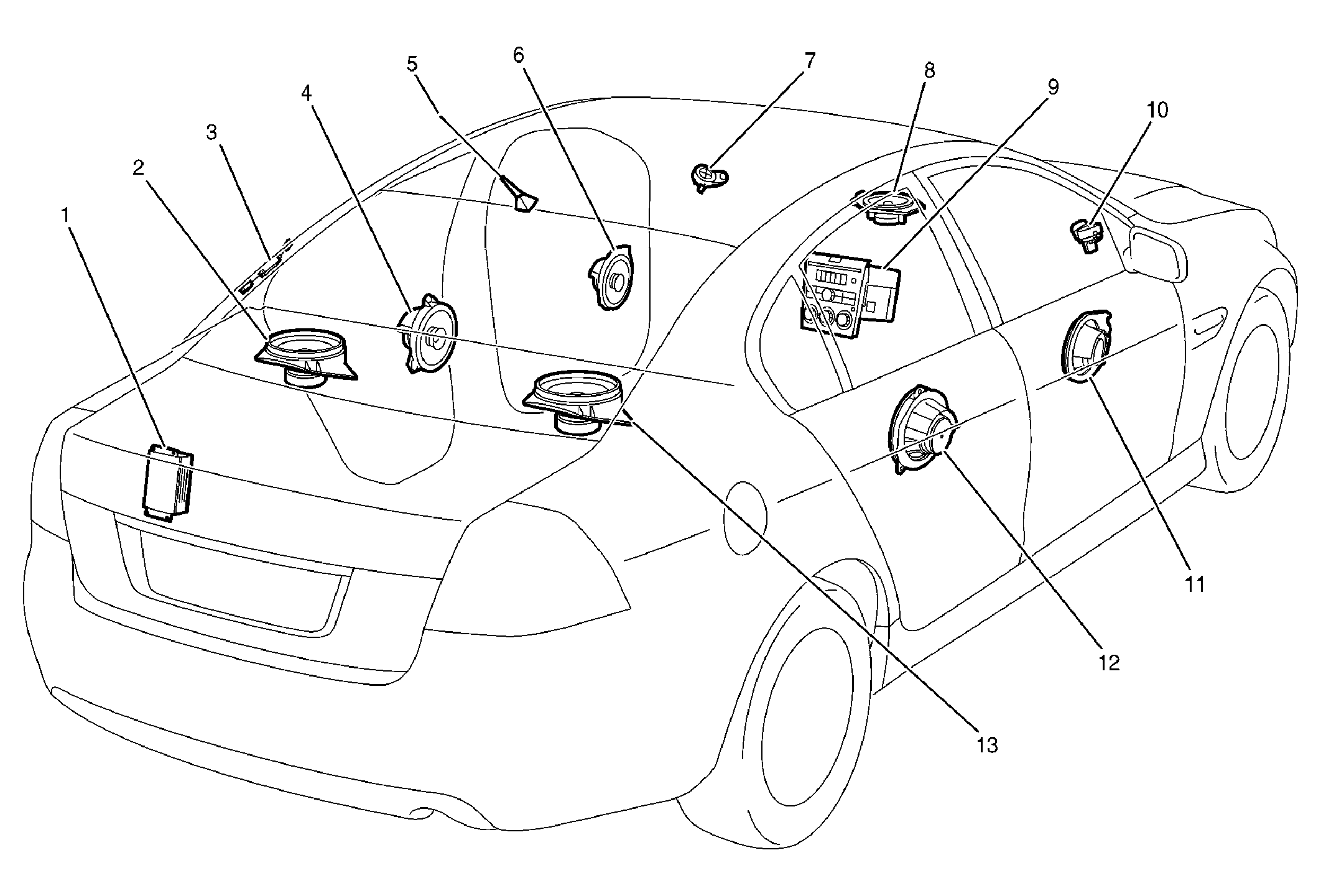

Fig 4: Infotainment Unit, Amplifier, Antenna and Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Subwoofer Amplifier
2	Speaker - LR Subwoofer
3	Diversity Antenna Module
4	Speaker - LR Door
5	Roof Antenna
6	Speaker - LF Door
7	Speaker - LF I/P Tweeter
8	Speaker - I/P Centre
9	Infotainment Assembly
10	Speaker - RF I/P Tweeter
11	Speaker - RF Door
12	Speaker - RR Door
13	Speaker - RR Subwoofer

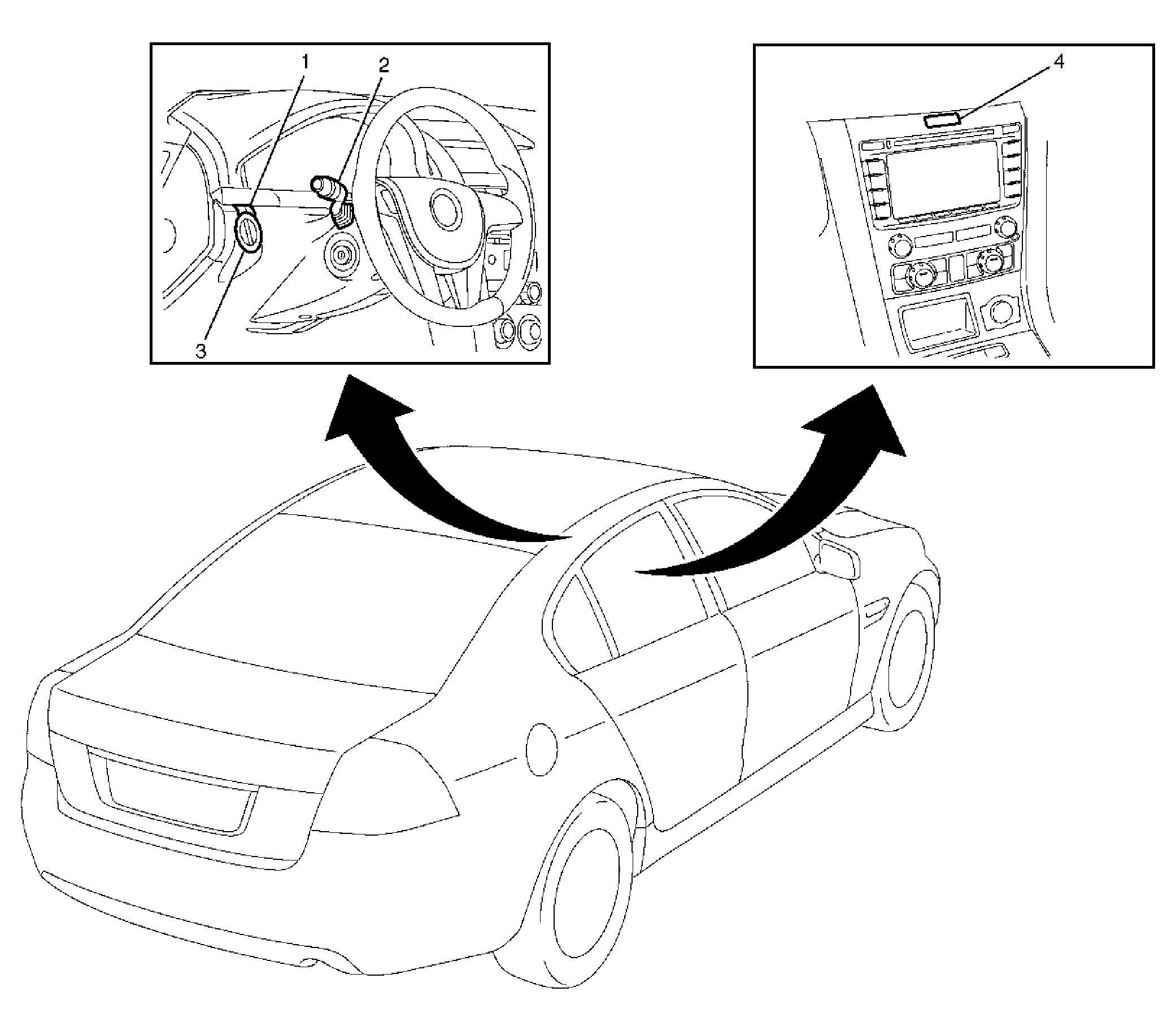

Fig 5: Lamp Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Dimmer Switch
2	Turn Signal Switch
3	Headlamp Switch
4	Hazard Warning Switch

Fig 6: Interior Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Dome Lamp Assembly
2	Front Dome Lamp Assembly
3	Transmission Floor Shift Control Indicator Lamp
4	Rear Compartment Lamp Assembly

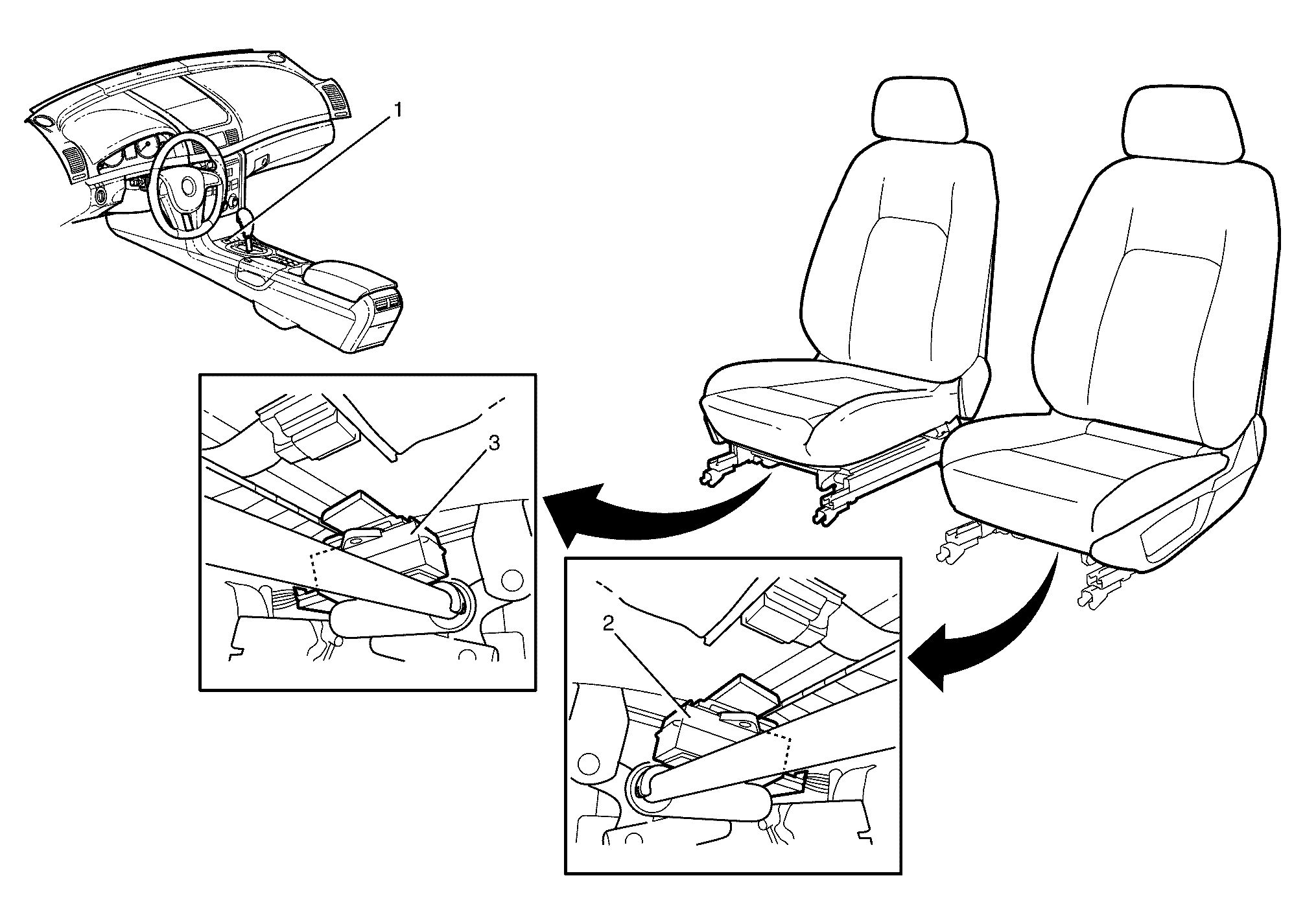

Fig 7: Heated Seat Component Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch (Multi Function)
2	Heated Seat Control Module - Driver
3	Heated Seat Control Module - Passenger

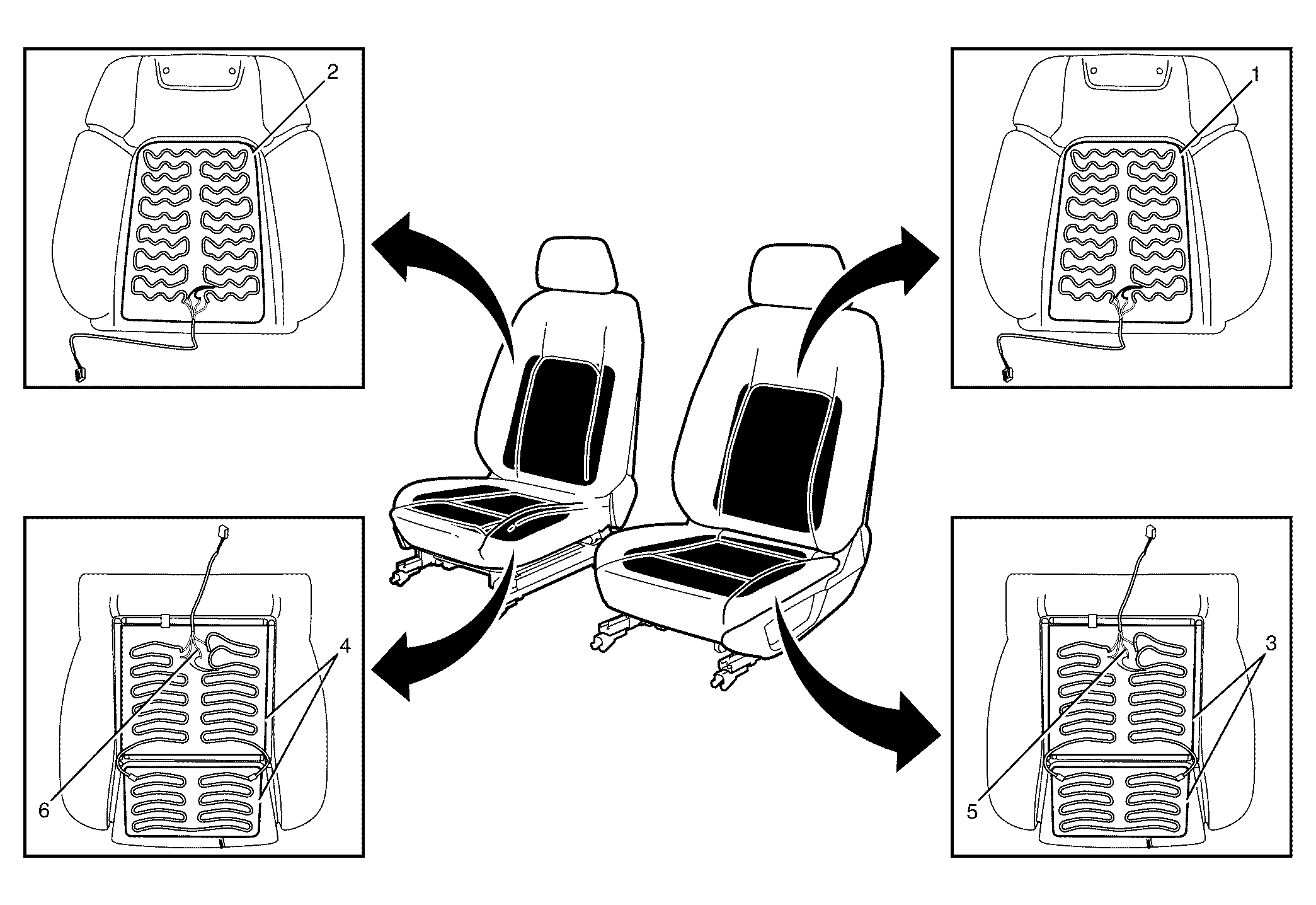

Fig 8: Heated Seat Component Views (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Seat Back Heating Element
2	Left Seat Back Heating Element
3	Right Seat Cushion Heating Element
4	Left Seat Cushion Heating Element
5	Right Seat Heating Temperature Sensor
6	Left Seat Heating Temperature Sensor

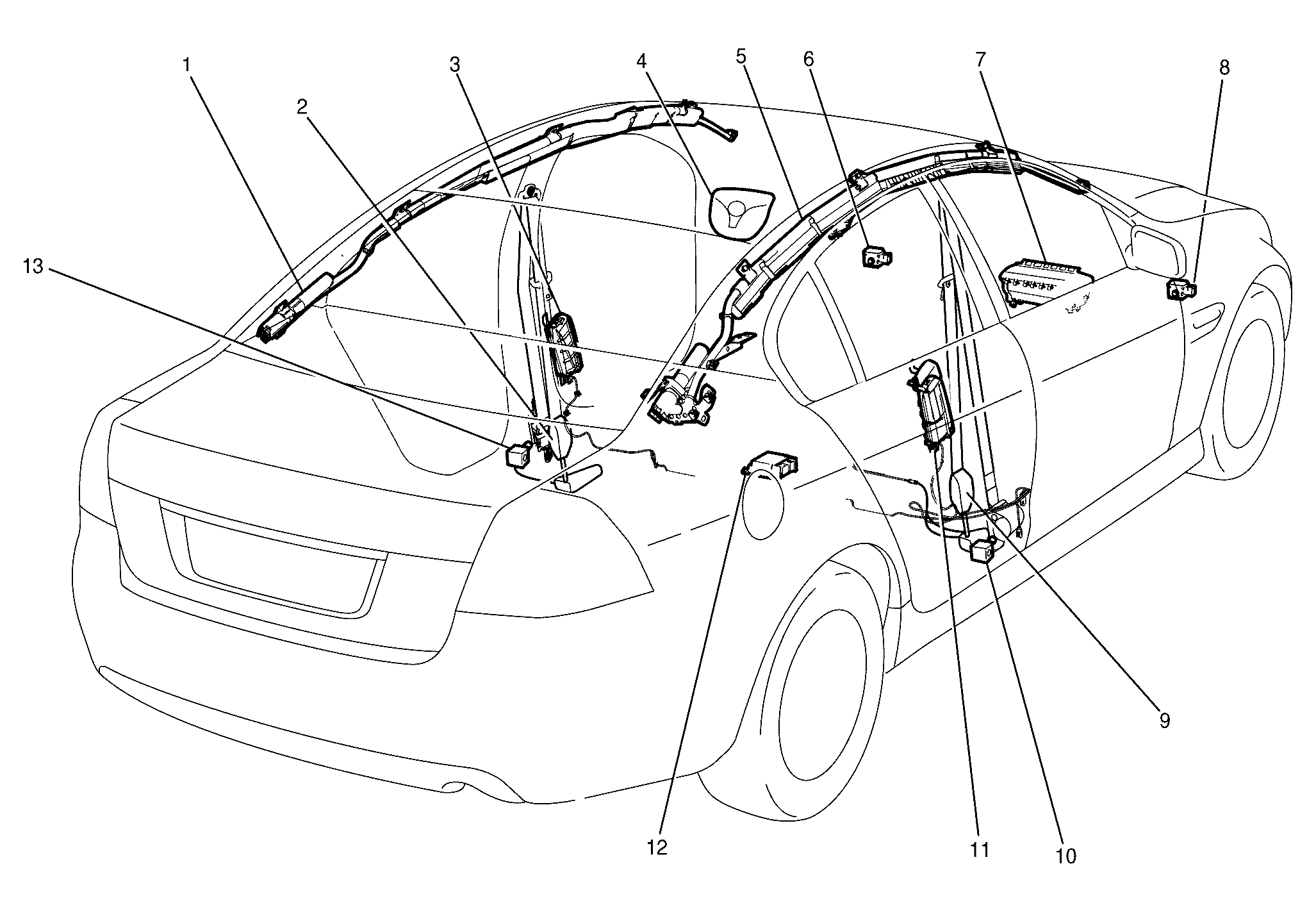

Fig 9: SIR Component Location

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module (Left Side)
2	Seat Belt Anchorage Pretensioner (Left Side)
3	Inflatable Restraint Side Impact Module (Left Side)
4	Inflatable Restraint Steering Wheel Module
5	Inflatable Restraint Roof Rail Module (Right Side)
6	Inflatable Restraint Front End Sensor (Left Side)
7	Inflatable Restraint Instrument Panel Module
8	Inflatable Restraint Front End Sensor (Right Side)
9	Seat Belt Anchorage Pretensioner (Right Side)
10	Seat Belt Retractor Pretensioner (Right Side)
11	Inflatable Restraint Side Impact Sensor (Right Side)
12	Inflatable Restraint Side Impact Module (Right Side)
13	Sensing and Diagnostic Module (SDM)
14	Inflatable Restraint Side Impact Sensor (Left Side)
15	Seat Belt Retractor Pretensioner (Left Side)

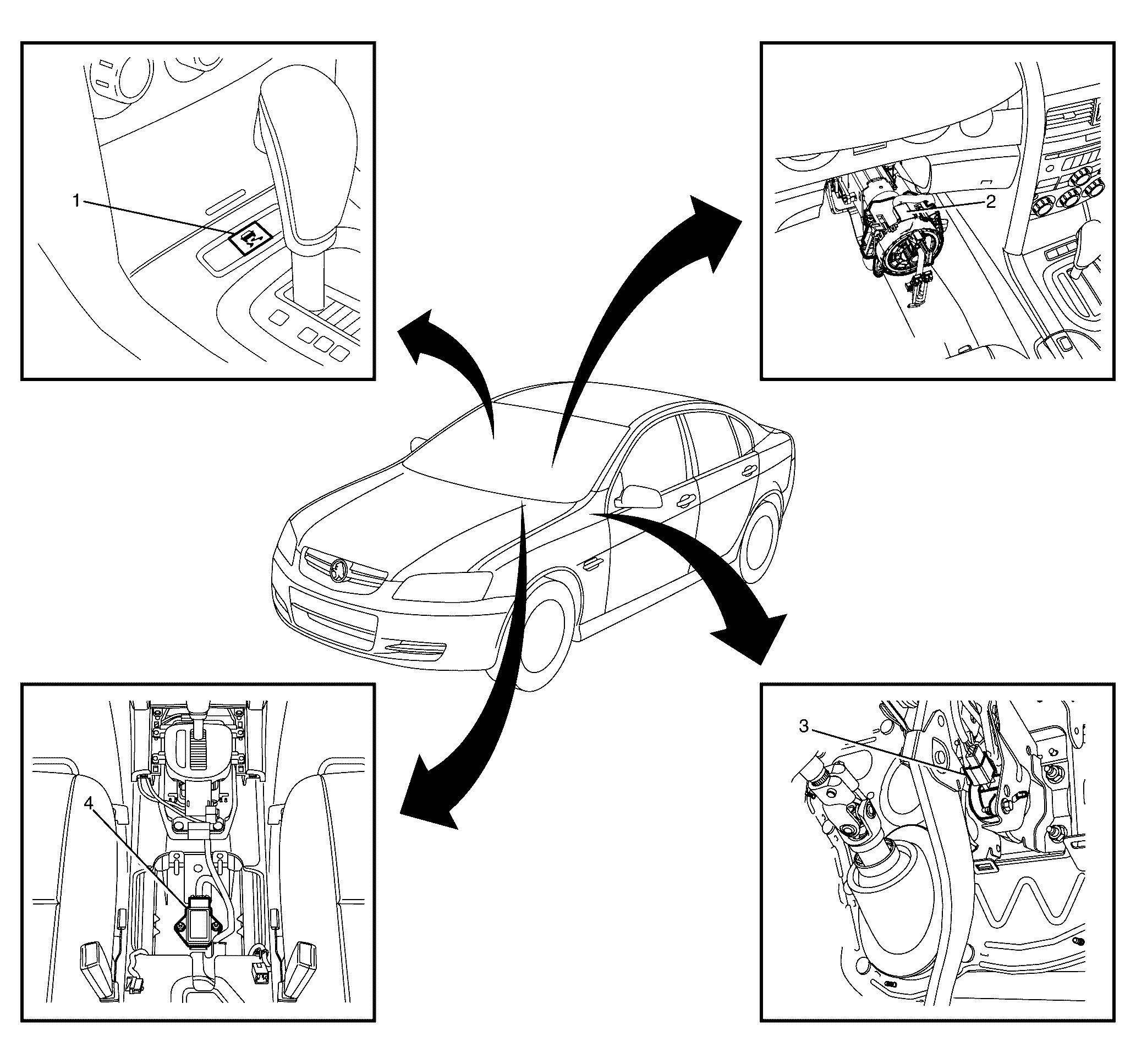

Fig 10: Steering Angle Sensor, Brake Pedal Position Sensor, ESP Switch and Yaw Rate/Lateral Accelerometer Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SRS Coil Assembly (Incorporates the Steering Angle Sensor, SRS Coil and Indicator Cancel Cam Assembly)
2	ESP Switch
3	Yaw Rate/Lateral Accelerometer Sensor
4	Brake Pedal Position Sensor
