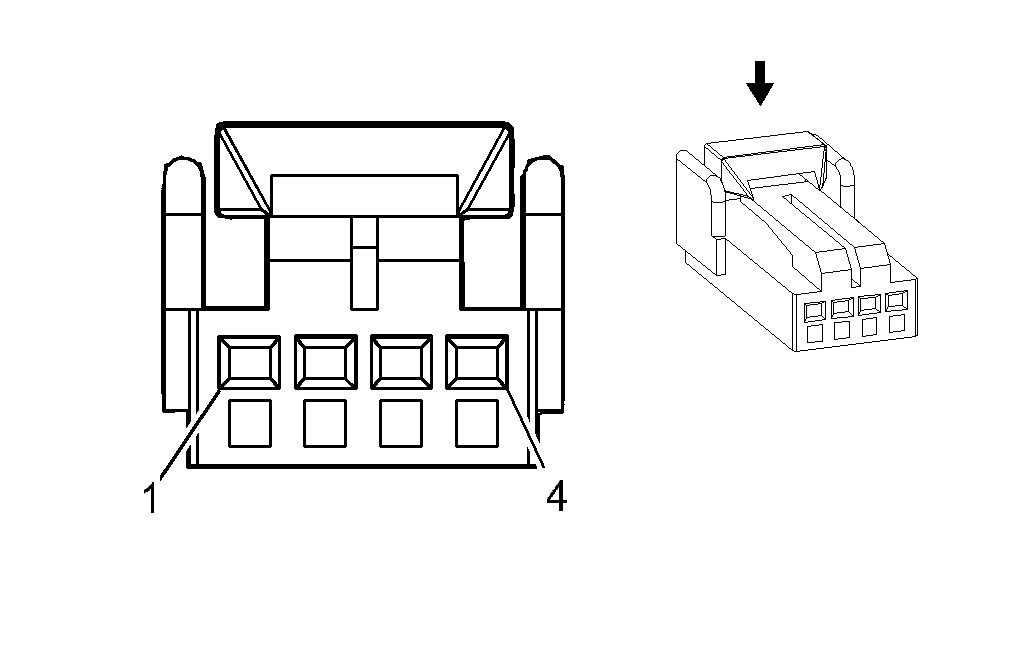

Remote Control Door Lock Receiver (RCDLR)
Courtesy of GENERAL MOTORS CORP. Remote Control Door Lock Receiver (RCDLR)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.5 OG/WH |
1840 |
Battery Positive Voltage |
| 2 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 3 |
- |
- |
Not Used |
| 4 |
0.5 BK |
1650 |
Ground |
Connector Part Information
- OEM: 7119-1142-60
- Service: See Catalog
- Description: 4-Way F (GN)
|
Terminal Part Information
- Pins: 1, 4
- Terminal/Tray: IL-AG5-C1-5000/20
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: J-38125-211/J-35616-64B (L-BU)
- Pin: 2
- Terminal/Tray: IL-AG5-C1-5000/20
- Core/Insulation Crimp: K/K
- Release Tool/Test Probe: J-38125-211/J-35616-64B (L-BU)
|
