Recirculation Actuator

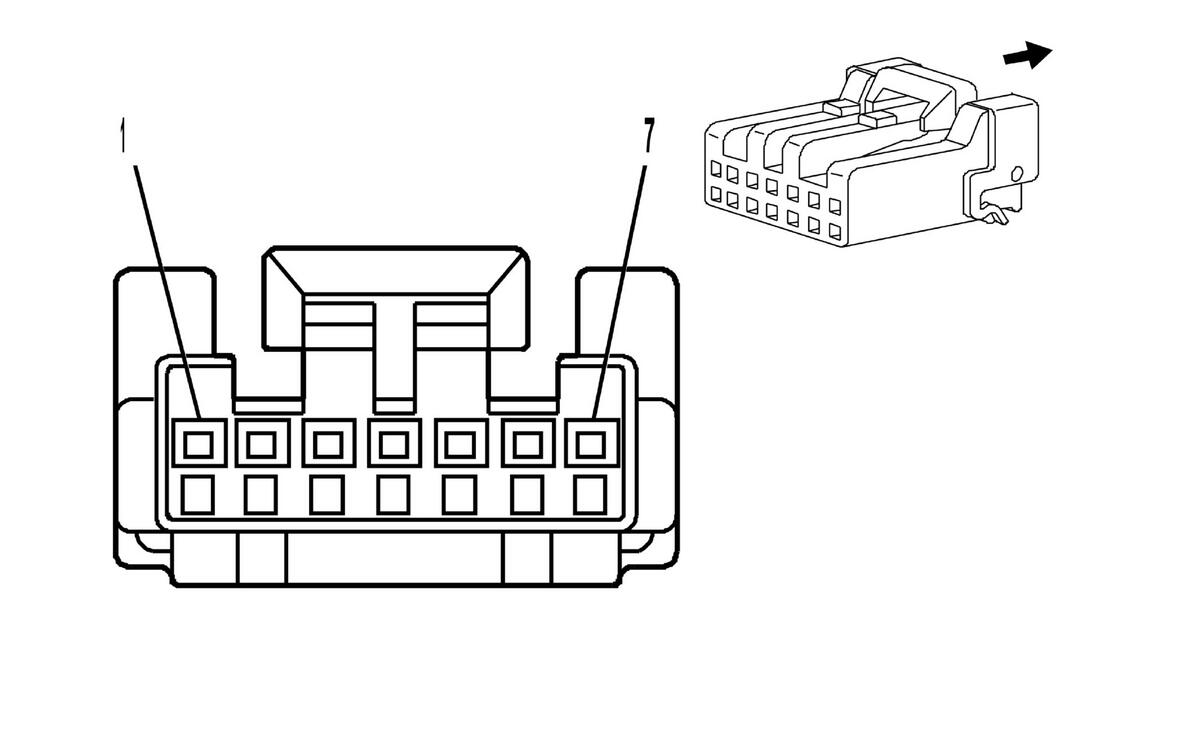

Fig 1: Recirculation Actuator Connector End View
GM826267Courtesy of GENERAL MOTORS CORP.
Recirculation Actuator

Pin Wire Color Circuit No. Function
1 0.5 YE 598 5-Volt Reference
2 - - Not Used
3 0.5 GY 1791 Low Referencel
4 - - Not Used
5 0.5 WH/OG 1838 Recirculation Door Position Signal
6 0.5 PU 2274 Recirculation Door Control Circuit
7 0.5 WH/BU 1614 Recirculation Door Control
Connector Part Information
  • OEM: IL-AG5-7S-S3C1
  • Service: See Catalog
  • Description: 7-Way F Yazaki (GN)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
