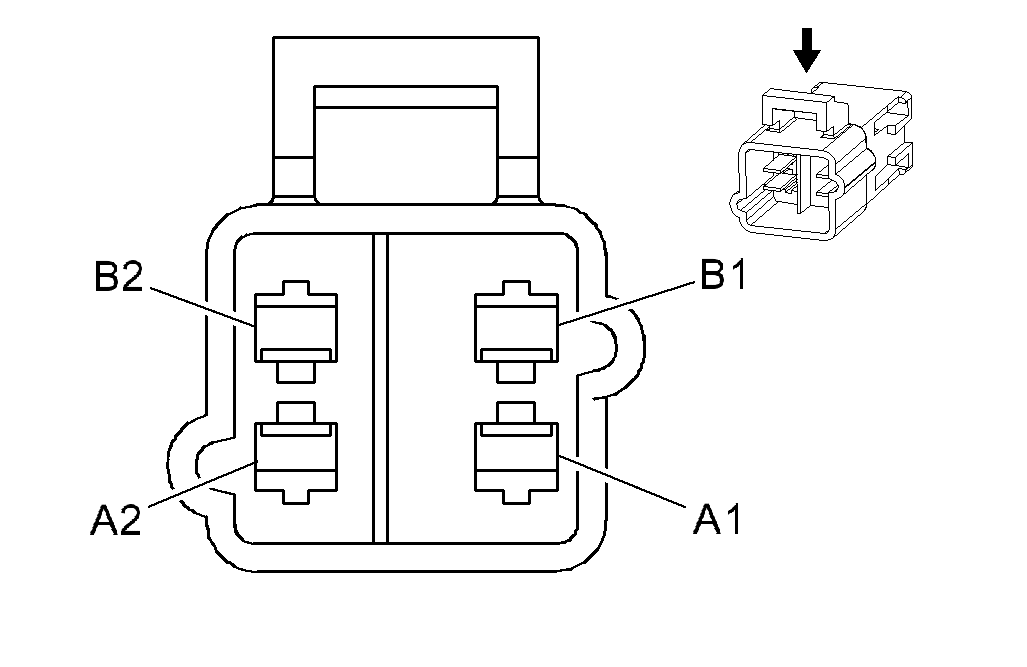

Inflatable Restraint Steering Wheel Module Coil X2
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Steering Wheel Module Coil X2
| Pin |
Wire Color |
Circuit No. |
Function |
| A1 |
0.3 BN/RD |
3021 |
Steering Wheel Module - Stage1 - High Control |
| A2 |
0.3 BN |
3020 |
Steering Wheel Module - Stage1 - Low Control |
| B1 |
0.3 WH |
3023 |
Steering Wheel Module - Stage2 - High Control |
| B2 |
0.3 PK |
3022 |
Steering Wheel Module - Stage2 - Low Control |
Connector Part Information
- OEM: 7182-7297-70
- Service: See Catalog
- Description: 4-Way M (YE)
|
Terminal Part Information
- Terminal/Tray: 12034047/2
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 12094430/J-35616-5 (PU)
|
