Generator X1 (L76)

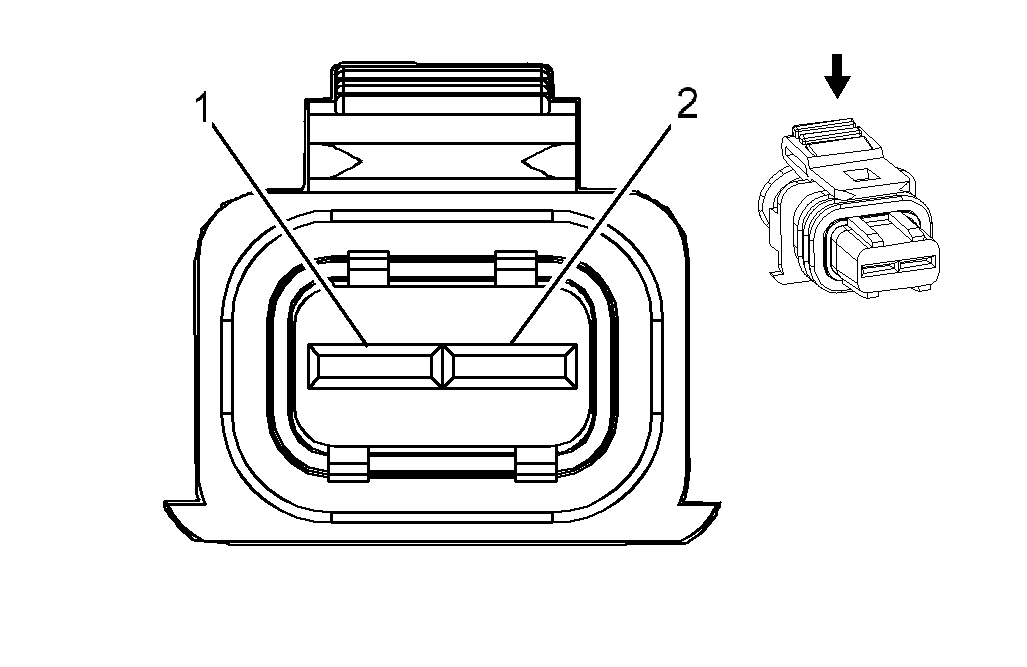

Fig 1: Generator X1 (L76) Connector End View
GM1989397Courtesy of GENERAL MOTORS CORP.
Generator X1 (L76)

Pin Wire Color Circuit No. Function
1 0.5 OG/WH 225 Generator Turn On Signal
2 0.5 PU/WH 23 Generator Field Duty Cycle Signal
Connector Part Information
  • OEM: 7283-5483-30
  • Service: See Catalog
  • Description: 2-Way F
Terminal Part Information
  • Terminal/Tray: 1928498056/8
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: J-38125-561/J-35616-35 (VT)
