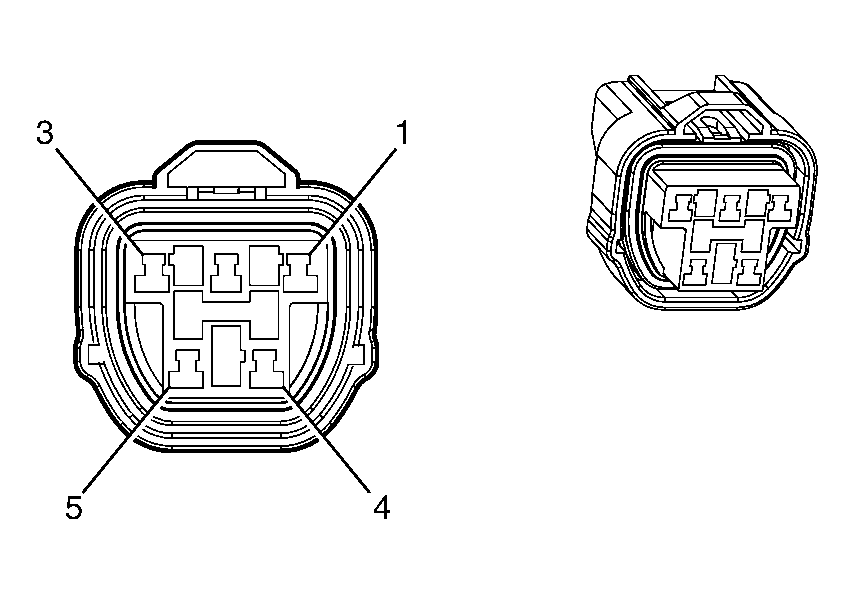

Fuel Pump and Sender Assembly
Courtesy of GENERAL MOTORS CORP. Fuel Pump and Sender Assembly
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
2 GY |
120 |
Fuel Pump Supply Voltage |
| 2 |
0.5 PU |
1589 |
Fuel Level Sensor Signal (Primary) |
| 3 |
2 BK |
1350 |
Ground |
| 4 |
0.5 BN/YE |
452 |
Low Reference |
| 5 |
- |
- |
Not Used |
Connector Part Information
- OEM: 15326631
- Service: 19152589
- Description: 4-Way F GT 280 5.8 Series Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
