Data Link Resistor

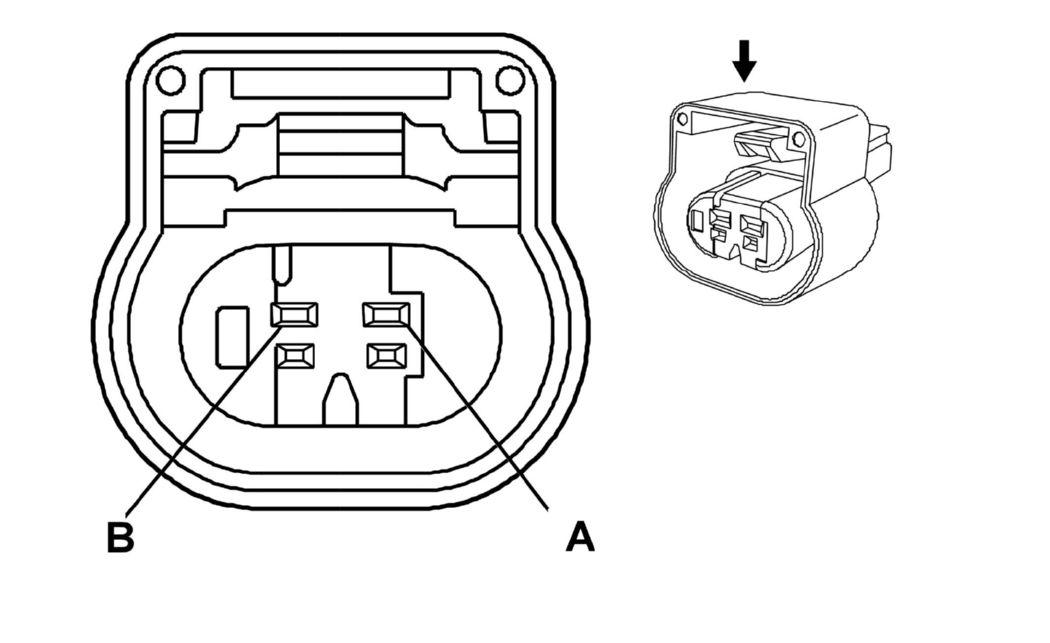

Fig 1: Data Link Resistor Connector End View
GM2091098Courtesy of GENERAL MOTORS CORP.
Data Link Resistor

Pin Wire Color Circuit No. Function
A 0.5 BN/BK 9010 High Speed GMLAN Serial Data Bus+
B 0.5 BN 9011 High Speed GMLAN Serial Data Bus-
Connector Part Information
  • OEM: 7282-9913-30
  • Service: See Catalog
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
