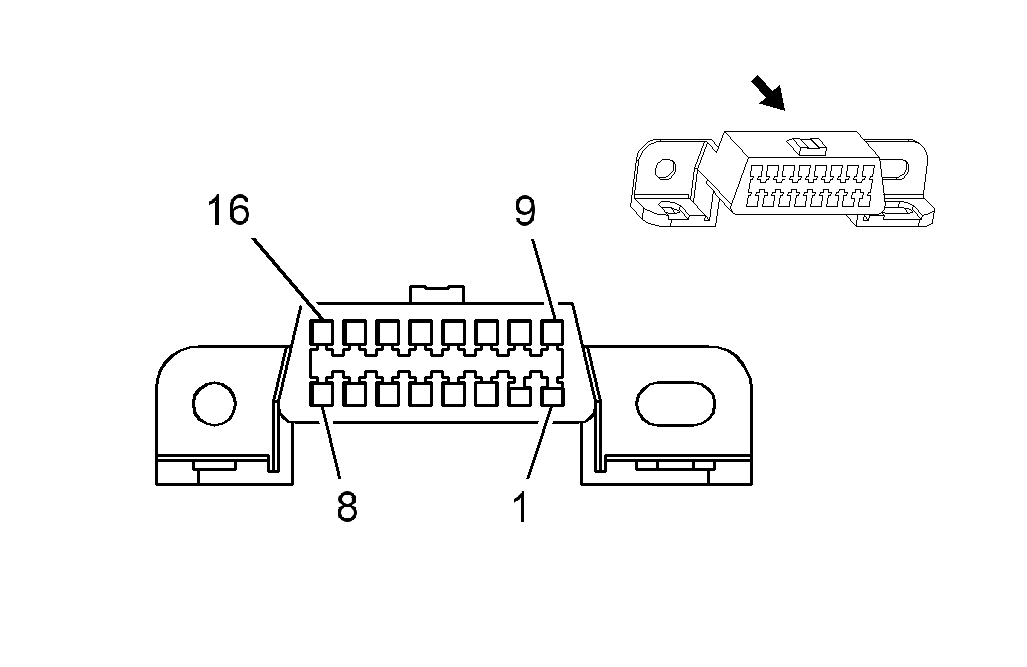

Data Link Connector (DLC)
Courtesy of GENERAL MOTORS CORP. Data Link Connector (DLC)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.35 D-GN |
9200 |
Low Speed GMLAN Serial Data |
| 2-3 |
- |
- |
Not Used |
| 4 |
0.3 BK |
850 |
Ground |
| 5 |
0.3 BK |
850 |
Ground |
| 6 |
0.5 BN/BK |
9004 |
High Speed GMLAN Serial Data Bus+ |
| 0.5 BN/BK |
9004 |
High Speed GMLAN Serial Data Bus+ |
| 7-13 |
- |
- |
Not Used |
| 14 |
0.5 BN |
9005 |
High Speed GMLAN Serial Data Bus- |
| 0.5 BN |
9005 |
High Speed GMLAN Serial Data Bus- |
| 15 |
- |
- |
Not Used |
| 16 |
0.5 OG/WH |
1840 |
Battery Positive Voltage |
Connector Part Information
- OEM: 7123-9265-30
- Service: See Catalog
- Description: 16-Way F (BK)
|
Terminal Part Information
- Pins: 1, 4, 5, 16
- Terminal/Tray: 12129484/19
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12094429/J-35616-14 (GN)
- Pins: 6, 14
- Terminal/Tray: 12129484/19
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12094429/J-35616-14 (GN)
|
