Camshaft Position (CMP) Sensor (L76)

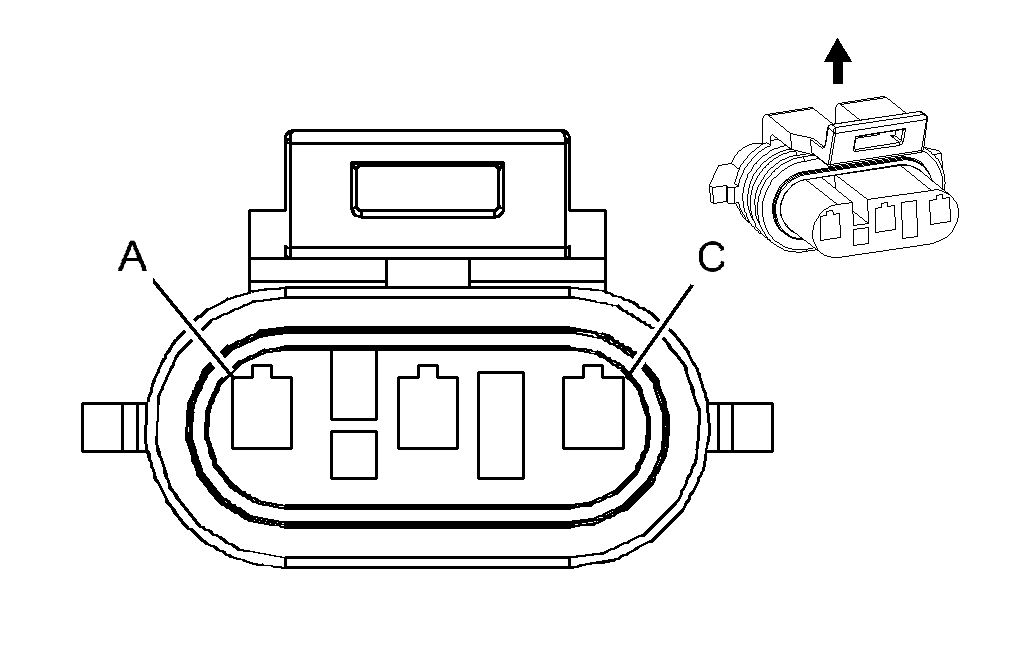

Fig 1: Camshaft Position (CMP) Sensor (L76) Connector End View
GM1989349Courtesy of GENERAL MOTORS CORP.
Camshaft Position (CMP) Sensor (L76)

Pin Wire Color Circuit No. Function
A 0.5 OG 631 5-Volt Reference
B 0.5 PK/BK 632 Low Reference
C 0.5 BN/WH 633 CMP Sensor Signal
Connector Part Information
  • OEM: 7223-9735-30
  • Service: 88986451
  • Description: 3-Way F
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-14 (GN)
