Brake Fluid Level Switch

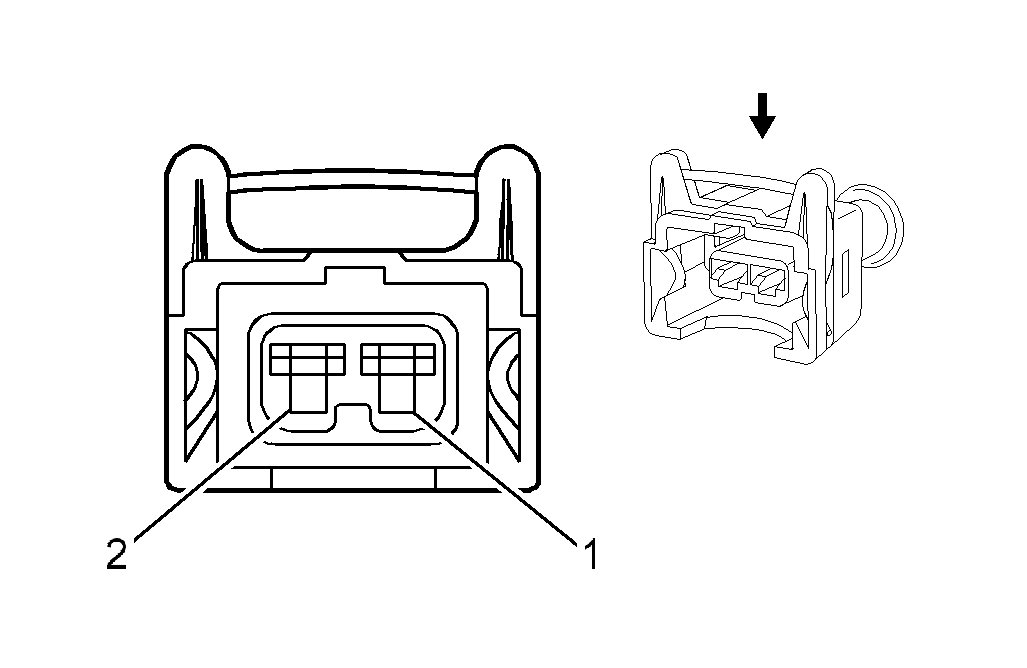

Fig 1: Brake Fluid Level Switch Connector End View
GM2091096Courtesy of GENERAL MOTORS CORP.
Brake Fluid Level Switch

Pin Wire Color Circuit No. Function
1 0.3 BK 350 Ground
2 0.3 BN/WH 33 Brake Warning Indicator Control
Connector Part Information
  • OEM: 7219-5226-30
  • Service: See Catalog
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
