Battery Current Sensor

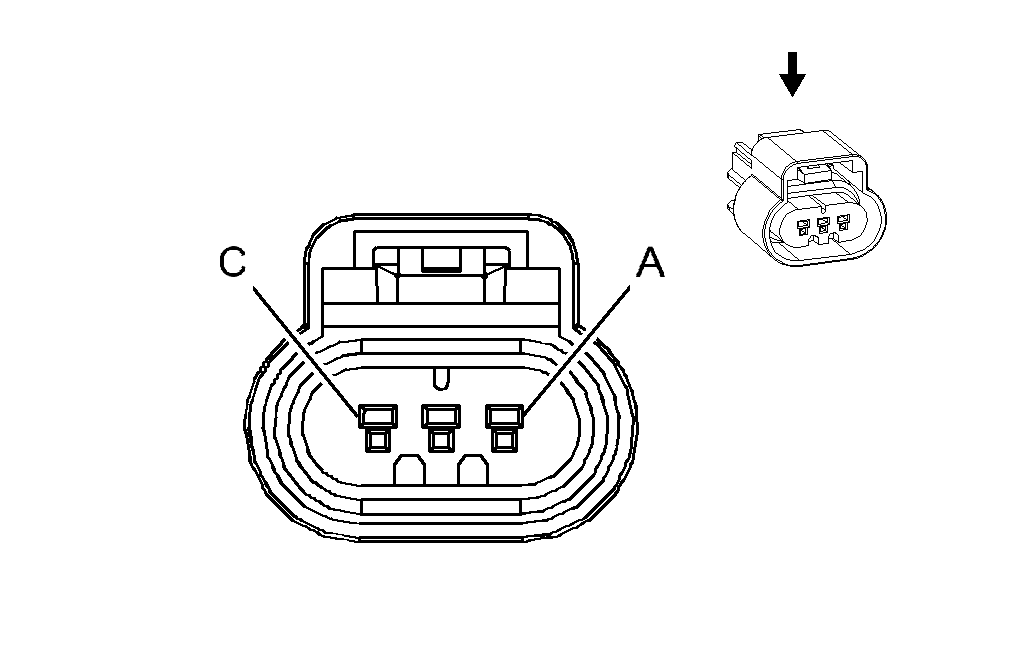

Fig 1: Battery Current Sensor Connector End View
GM1989591Courtesy of GENERAL MOTORS CORP.
Battery Current Sensor

Pin Wire Color Circuit No. Function
A 0.3 PK 5076 5-Volt Reference
B 0.3 BN 5077 Low Reference
C 0.3 WH/GN 5075 Battery Current Signal
Connector Part Information
  • OEM: 7283-6579-30
  • Service: See Catalog
  • Description: 3-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
