Automatic Transmission (MYC)
Courtesy of GENERAL MOTORS CORP. Automatic Transmission (MYC)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.75 OG/YE |
3640 |
Battery Positive Voltage |
| 2 |
0.75 BK |
450 |
Ground |
| 3 |
0.5 OG/BK |
1786 |
Park/Neutral Signal |
| 4 |
0.75 OG/YE |
3640 |
Battery Positive Voltage |
| 5 |
0.75 BK |
450 |
Ground |
| 6 |
0.5 WH/BU |
17 |
Stop Lamp Switch Signal |
| 7-8 |
- |
- |
Not Used |
| 9 |
0.5 D-BU |
5985 |
Accessory Wakeup Serial Data |
| 10 |
0.5 BN/BK |
9002 |
High Speed GMLAN Serial Data Bus+ |
| 11 |
0.5 BN |
9003 |
High Speed GMLAN Serial Data Bus- |
| 12 |
0.5 PK |
439 |
Ignition 1 Voltage |
| 13 |
0.5 BN |
9001 |
High Speed GMLAN Serial Data Bus- |
| 14 |
0.5 BN/BK |
9000 |
High Speed GMLAN Serial Data Bus+ |
| 15-16 |
- |
- |
Not Used |

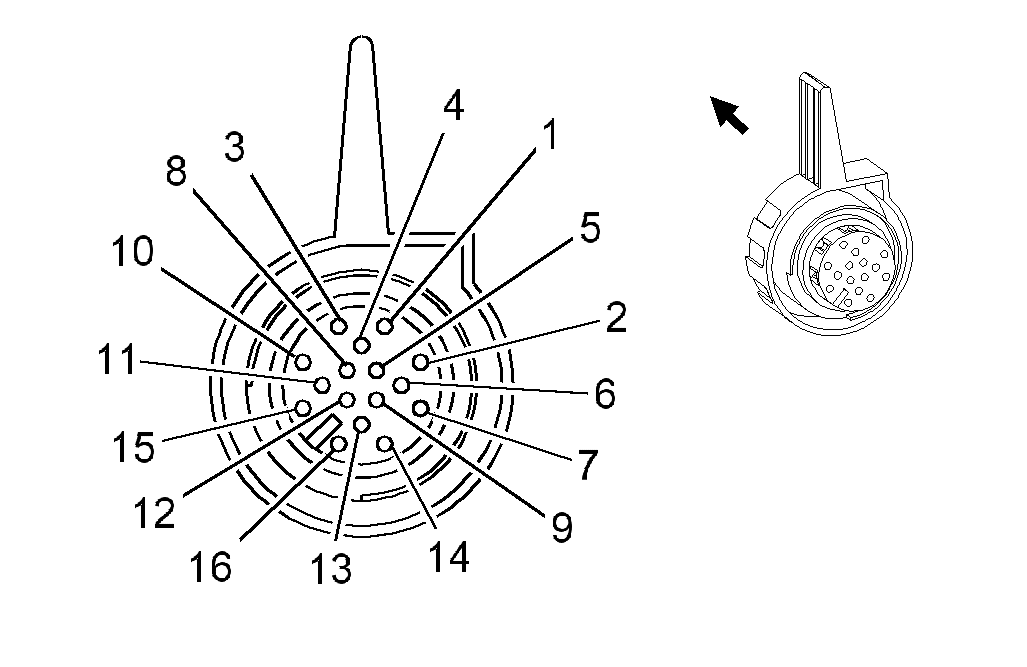

Connector Part Information
- OEM: 7229-4189-30
- Service: See Catalog
- Description: 16-Way F
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
