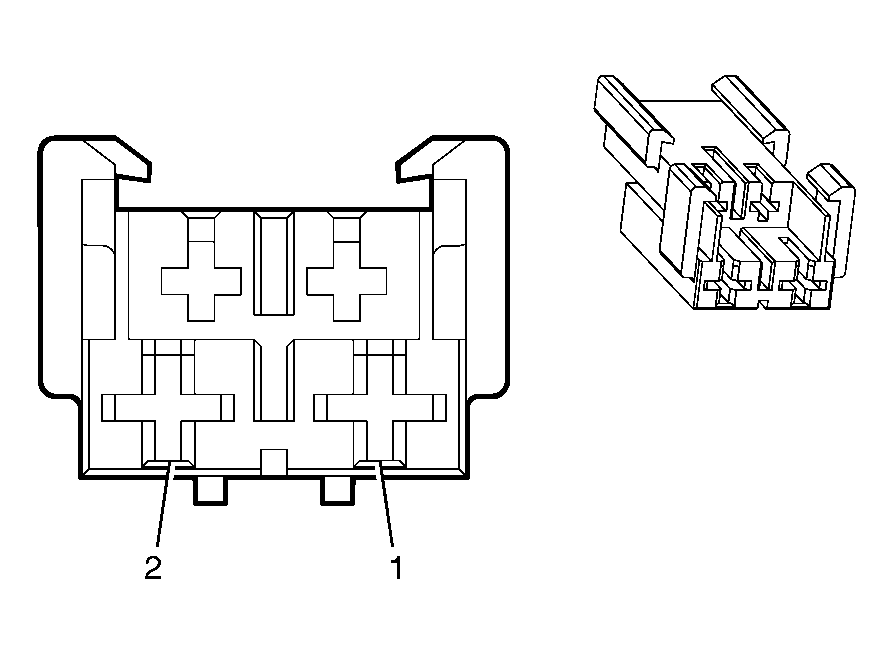

Seat Horizontal Motor - Driver (AJ6)
Courtesy of GENERAL MOTORS CORP. Seat Horizontal Motor - Driver (AJ6)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
2 GY |
285 |
Driver Seat Horizontal Motor Forward Control |
| 2 |
2 GY/RD |
284 |
Driver Seat Horizontal Motor Rearward Control |
Connector Part Information
- OEM: 968182
- Service: See Catalog
- Description: 2-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
