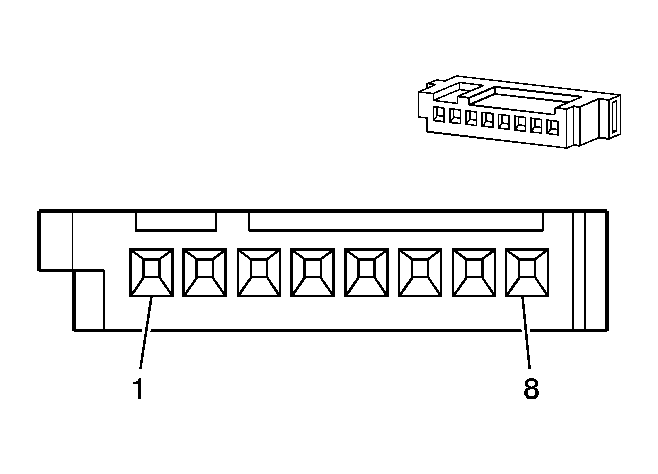

Multifunction Switch - Center Console X2 (KA1)
Courtesy of GENERAL MOTORS CORP. Multifunction Switch - Center Console X2 (KA1)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.5 PK/BU |
1339 |
Ignition 1 Voltage |
| 2 |
0.3 YE |
1685 |
Passenger Heated Seat High Temperature Indicator Control |
| 3 |
0.3 WH/BK |
6185 |
Passenger Heated Seat Intermediate Signal |
| 4 |
0.3 BN |
1686 |
Passenger Heated Seat Low Temperature Indicator Control |
| 5 |
0.3 PU/WH |
6816 |
Heated Seat Supply Voltage |
| 6 |
0.3 PK/BK |
1503 |
Passenger Heated Seat High/Low Signal |
| 7 |
- |
- |
Not Used |
| 8 |
0.5 BK |
850 |
Ground |
Connector Part Information
- OEM: 7119-1996-30
- Service: See Catalog
- Description: 8-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: 928999-5/15
- Core/Insulation Crimp: H/H
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
