A/C Refrigerant Pressure Sensor

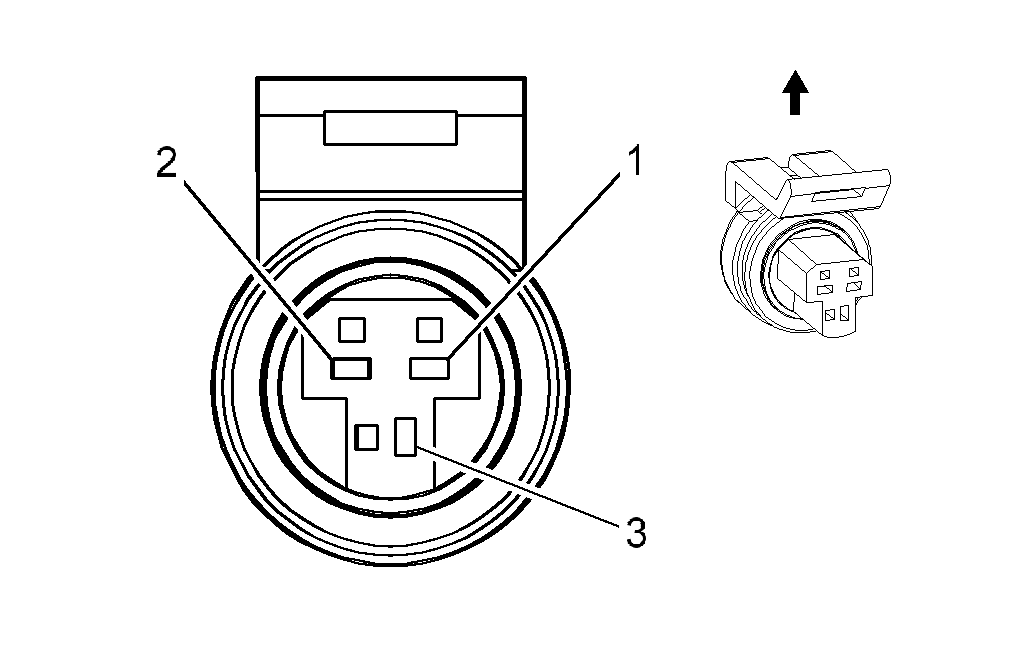

Fig 1: A/C Refrigerant Pressure Sensor Connector End View
GM1989348Courtesy of GENERAL MOTORS CORP.
A/C Refrigerant Pressure Sensor

Pin Wire Color Circuit No. Function
1 0.5 BN/GN 2759 Low Reference
2 0.5 GY 1688 5-Volt Reference
3 0.5 OG/BK 380 A/C Refrigerant Pressure Sensor Signal
Connector Part Information
  • OEM: 7283-2429
  • Service: See Catalog
  • Description: 3-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
