Removal Procedure

  1. Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
  2. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .

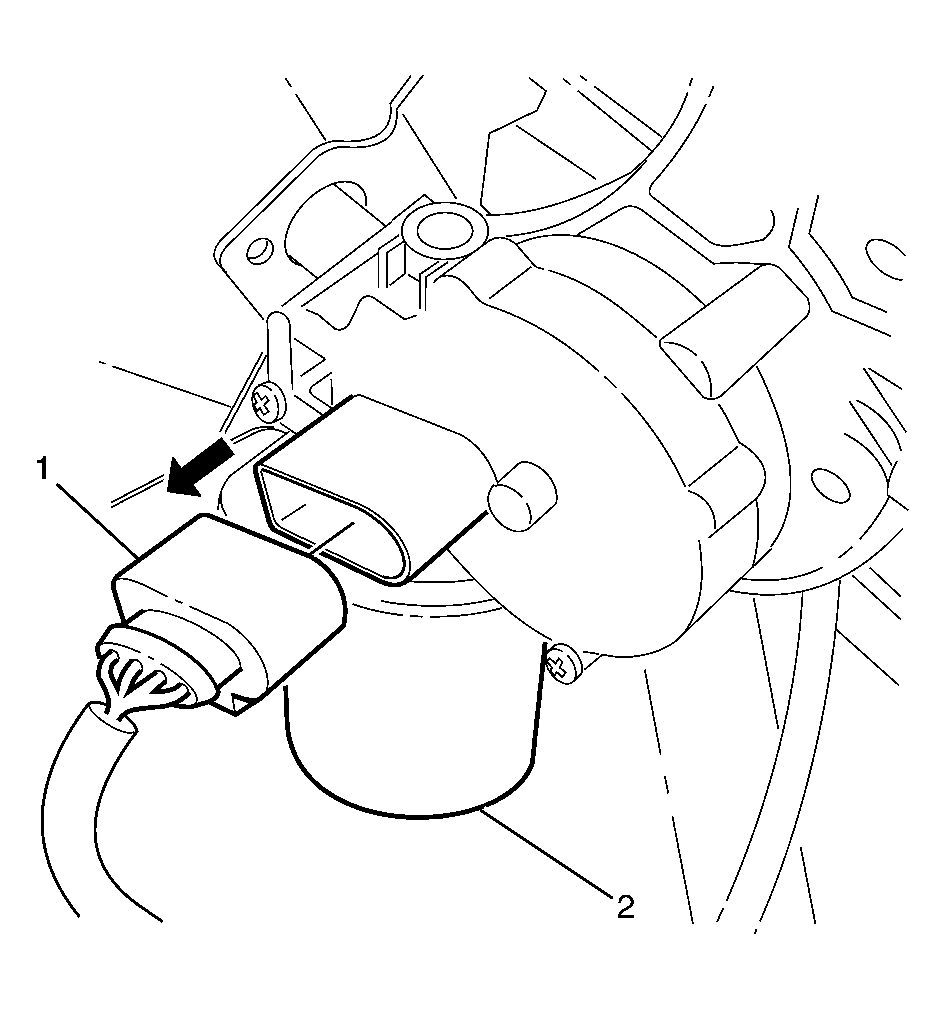

    3. Fig 1: Identifying Electrical Connector & Wiper Motor
    GM1940022Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector (1) from the wiper motor (2).
    4. Fig 2: Identifying Wiper Motor Module To Bulkhead Retaining Bolts
    GM1940027Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper motor module to bulk head retaining bolts (1).
  5. Remove the wiper motor module from the bulkhead.
