Installation Procedure

    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1311144Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft position sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the crankshaft position sensor bolt and tighten to 10 N.m (89 lb in).

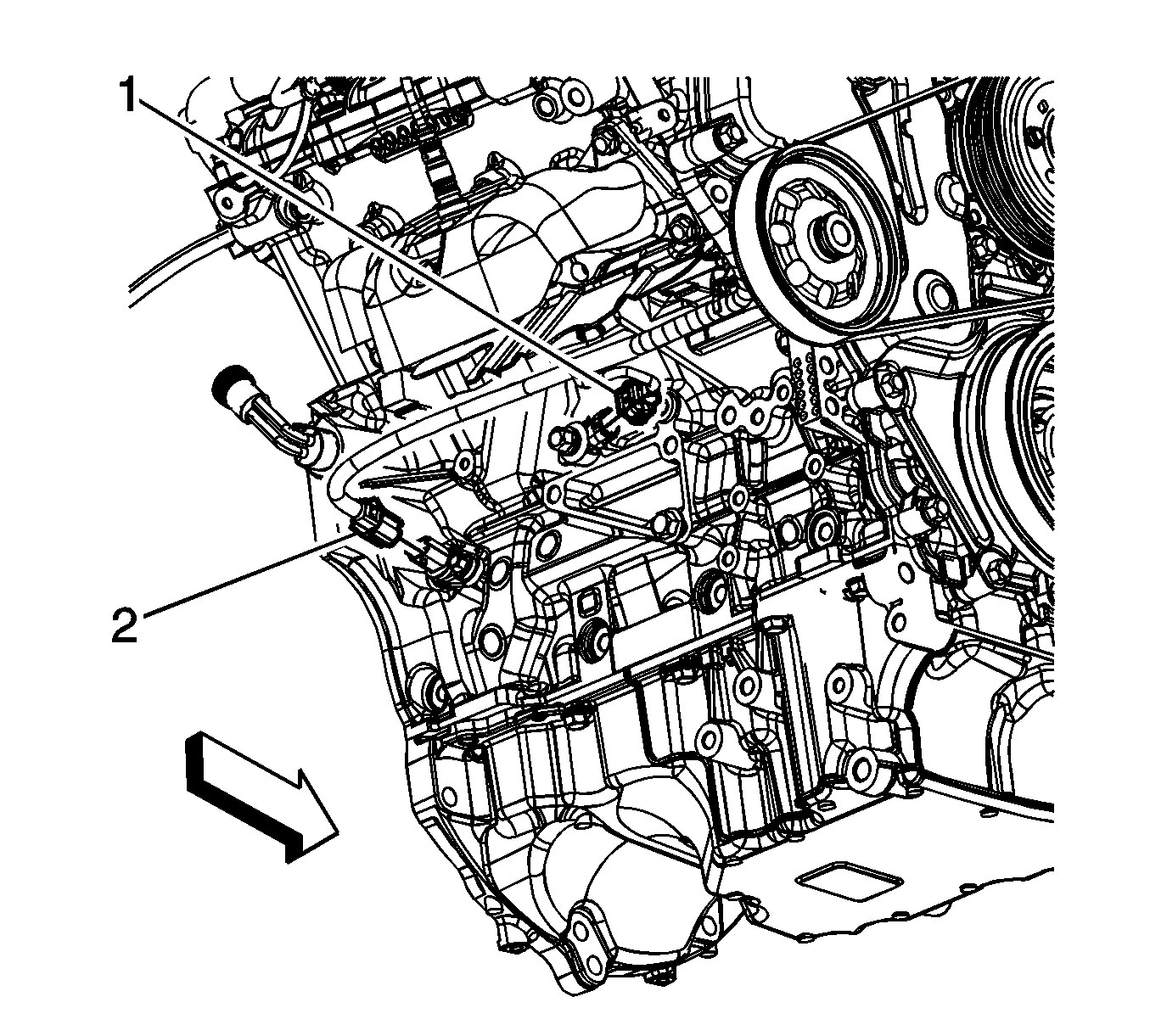

    3. Fig 2: Identifying CKP Sensor & Knock Sensor
    GM1839728Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (2) to the CKP sensor.
  4. Install the exhaust manifold lower heat shield. Refer to Exhaust Manifold Lower Heat Shield Replacement (LY7) .
  5. Perform the Crankshaft Position System Variation Learn procedure. Refer to Crankshaft Position System Variation Learn .
