Installation Procedure

    Fig 1: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coil(s).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ignition coil bolt(s) and tighten to 10 N.m (89 lb in).

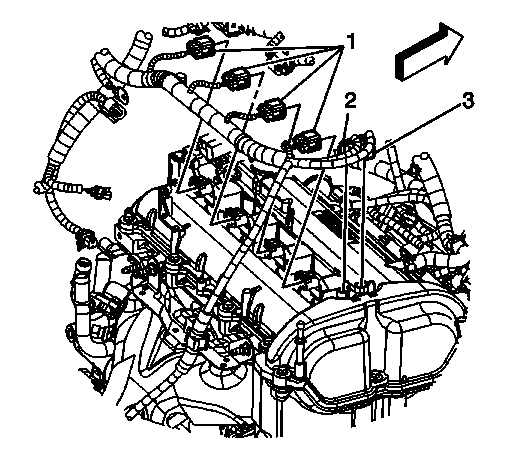

    3. Fig 2: Identifying Camshaft Position Actuator Solenoid Valve Electrical Connectors
    GM1647538Courtesy of GENERAL MOTORS CORP.
  3. Connect the ignition coil electrical connector(s) (1).
  4. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
