Generator Replacement

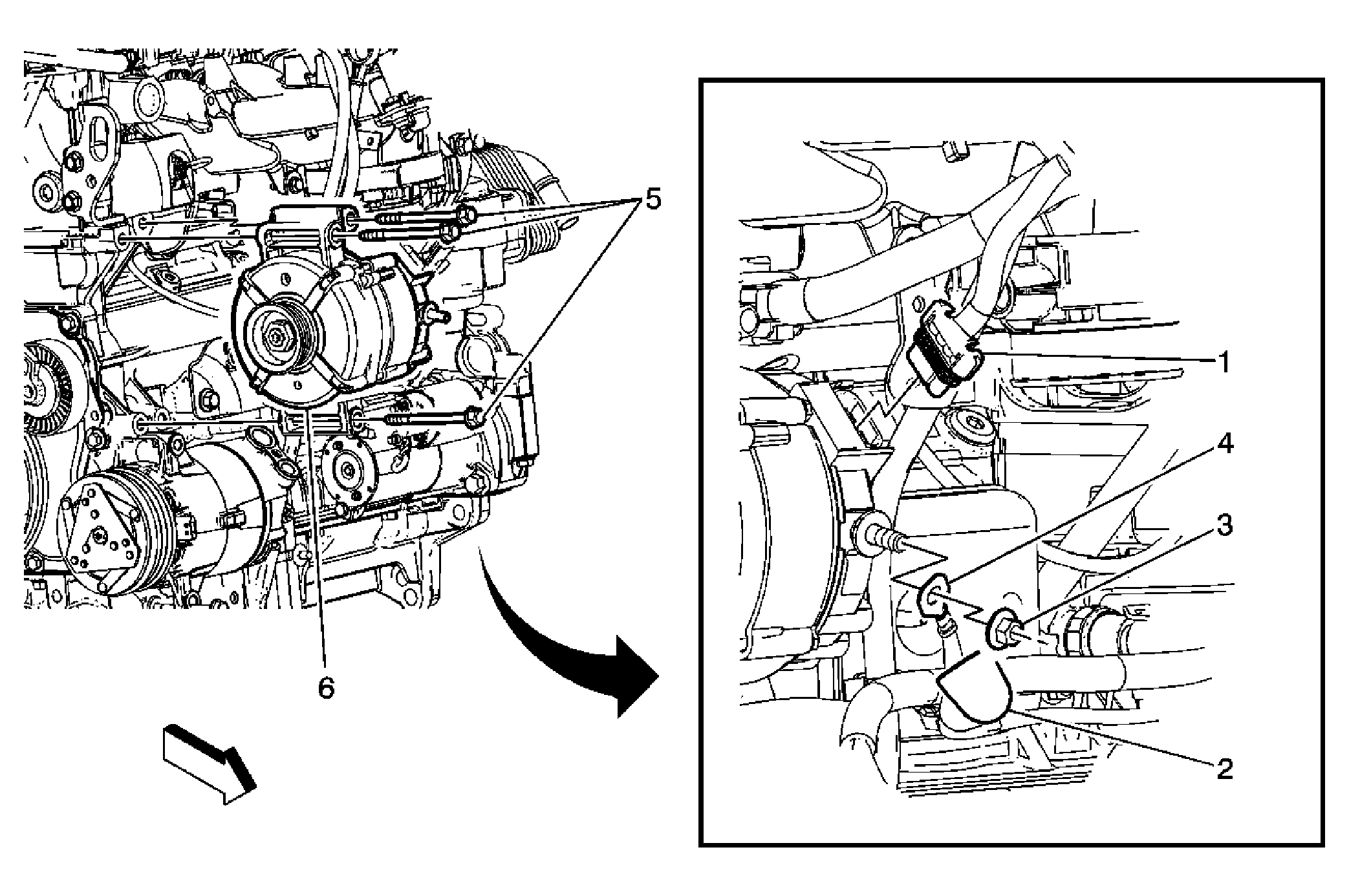

Fig 1: View Of Generator Mounts and Attachments

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the drive belt. Refer to Drive Belt Replacement .
1	Engine Harness Generator Connector
2	Engine Harness Generator Terminal Boot
3	Generator Terminal Nut CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (15 lb ft)
4	Engine Harness Generator Connector
5	Generator Bolt (Qty: 3) Tighten: 22 N.m (16 lb ft)
6	Generator
