Engine Splash Shield Replacement - Left Side

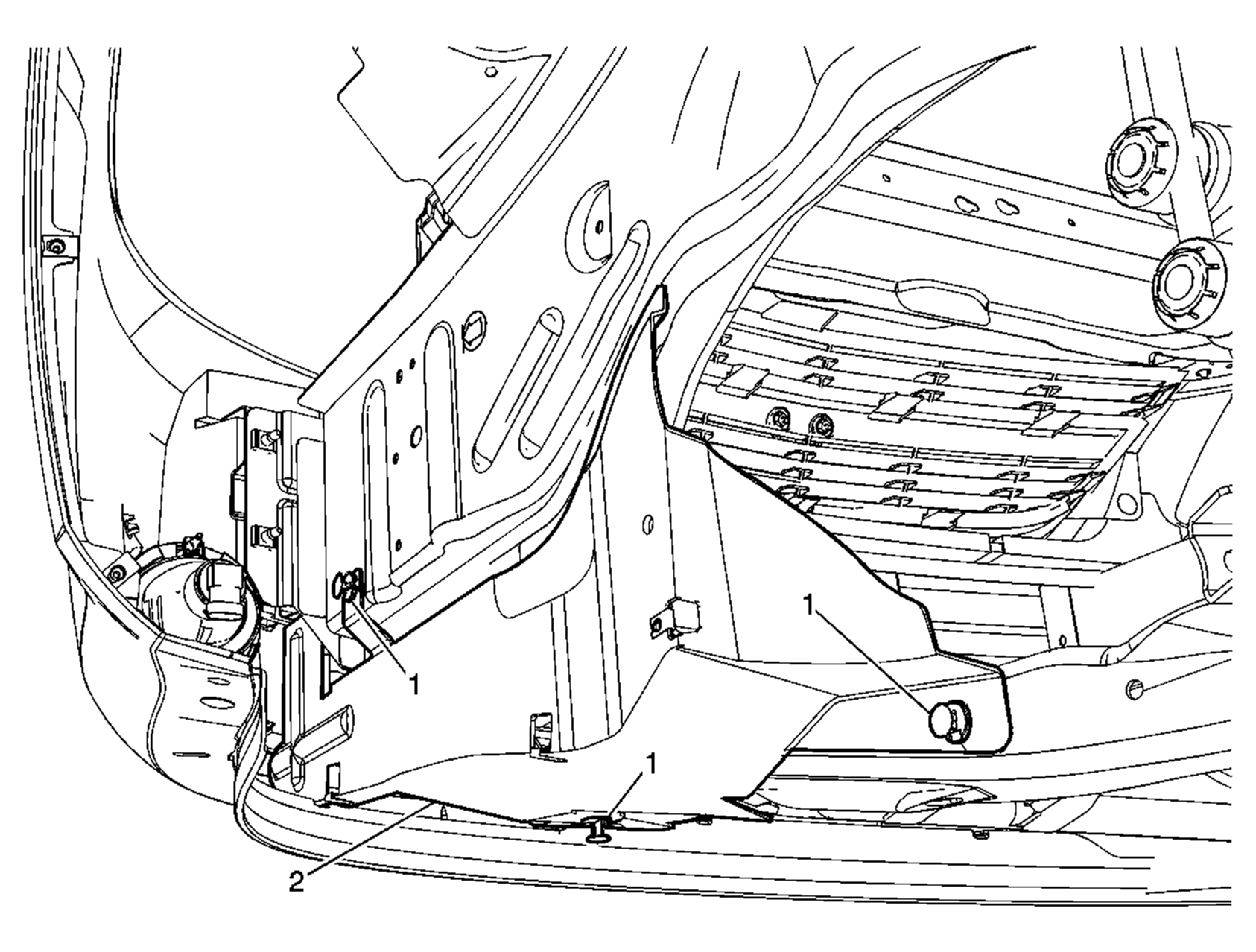

Fig 1: Identifying Engine Splash Shield Replacement & Bolts - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front fender liner. Refer to Front Fender Liner Replacement .
1	Engine Splash Shield Retainer (Qty: 3)
2	Engine Splash Shield - Left
