Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

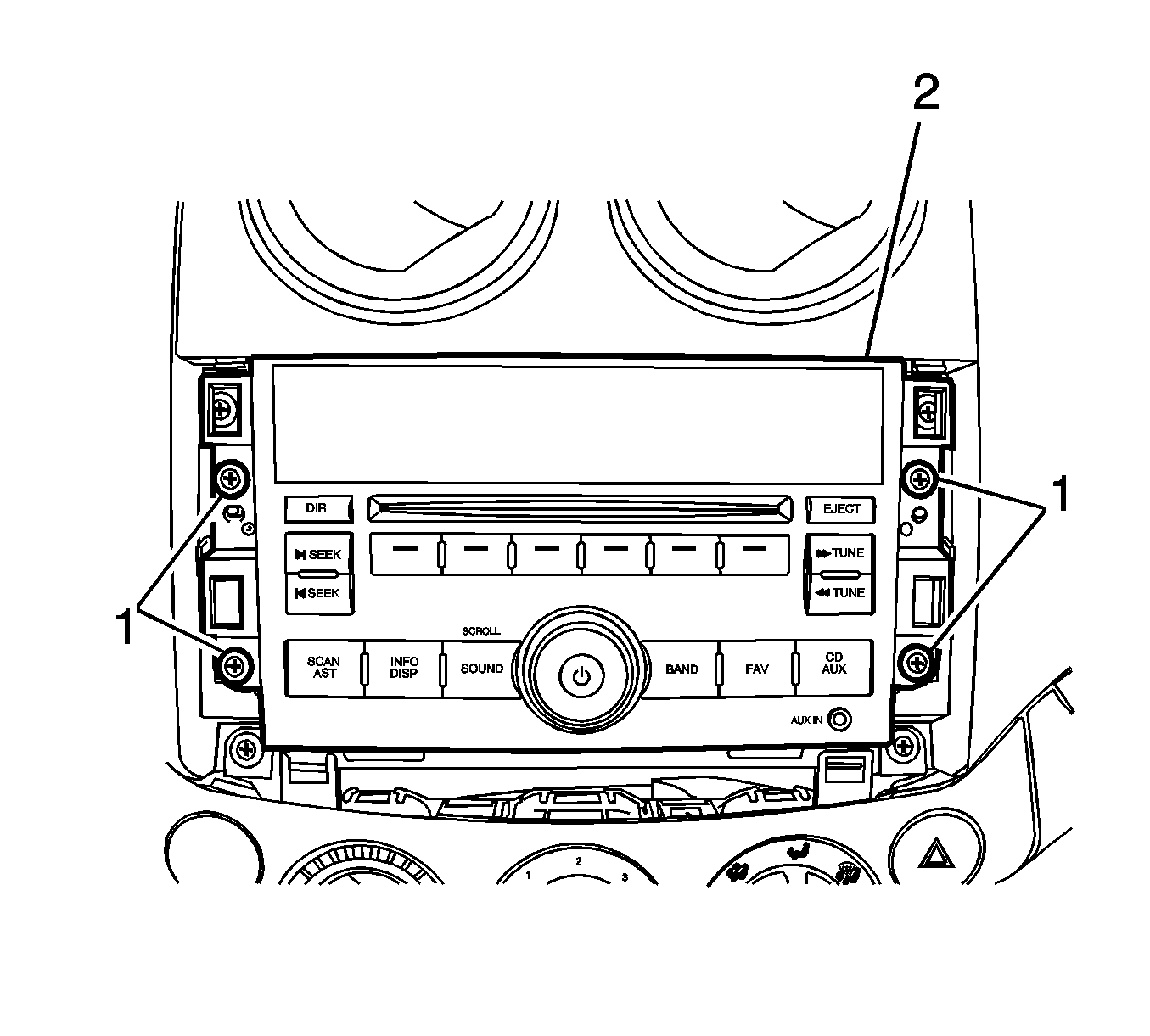

    Fig 1: Audio System & Screws
    GM2147284Courtesy of GENERAL MOTORS CORP.
  1. Connect the audio system electrical connector and the antenna cable.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the audio system (2) with the screws (1) and tighten to 6 N.m (53 lb in).
  3. Install the I/P lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
  4. Connect the negative battery cable.
