Installation Procedure

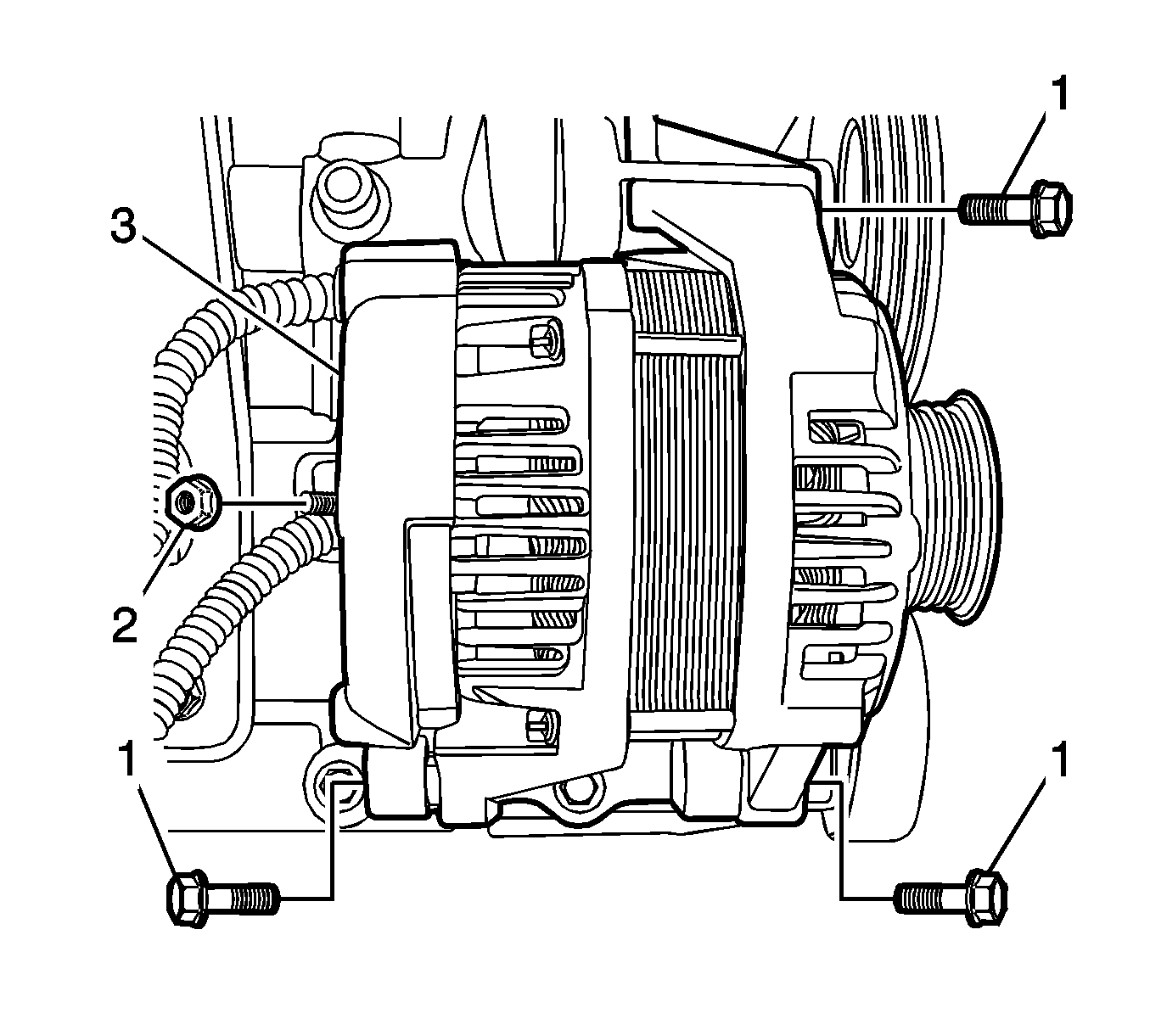

    Fig 1: Generator Connections
    GM2044938Courtesy of GENERAL MOTORS CORP.
  1. Install the generator (3).
    2. CAUTION: Refer to Fastener Caution.
  2. Install the generator retaining bolt (1) and nut. Tighten to 4.75 N.m (3.5 lb ft).
  3. Install the battery harness connector nut (2) to connect the battery positive connector.
  4. Connect the harness connector.

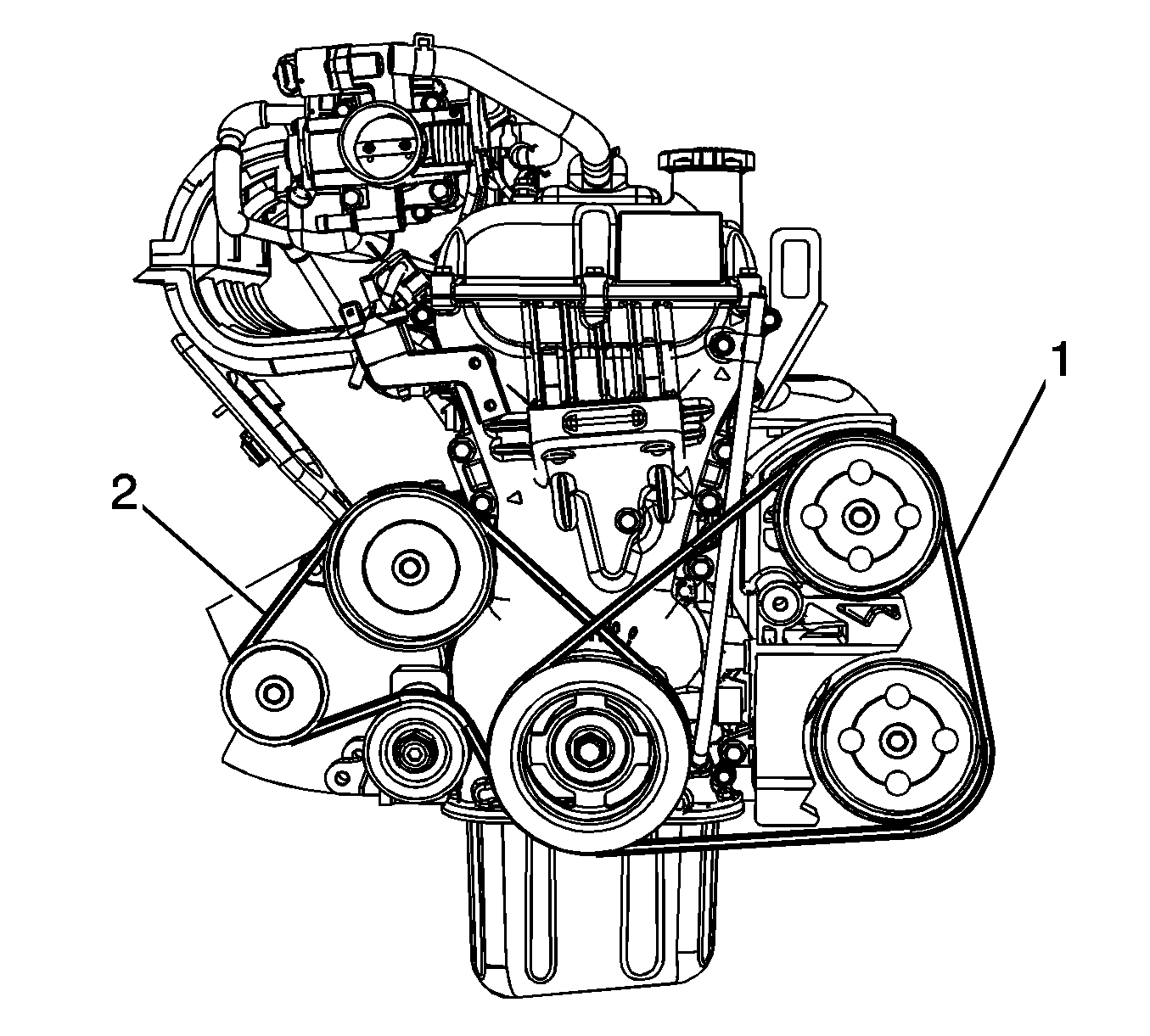

    5. Fig 2: Drive Belt
    GM2033780Courtesy of GENERAL MOTORS CORP.
  5. Install the accessory belt. Refer to Drive Belt Replacement.
  6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle.
  7. Connect the battery negative cable Refer to Battery Negative Cable Disconnection and Connection .
