Removal Procedure

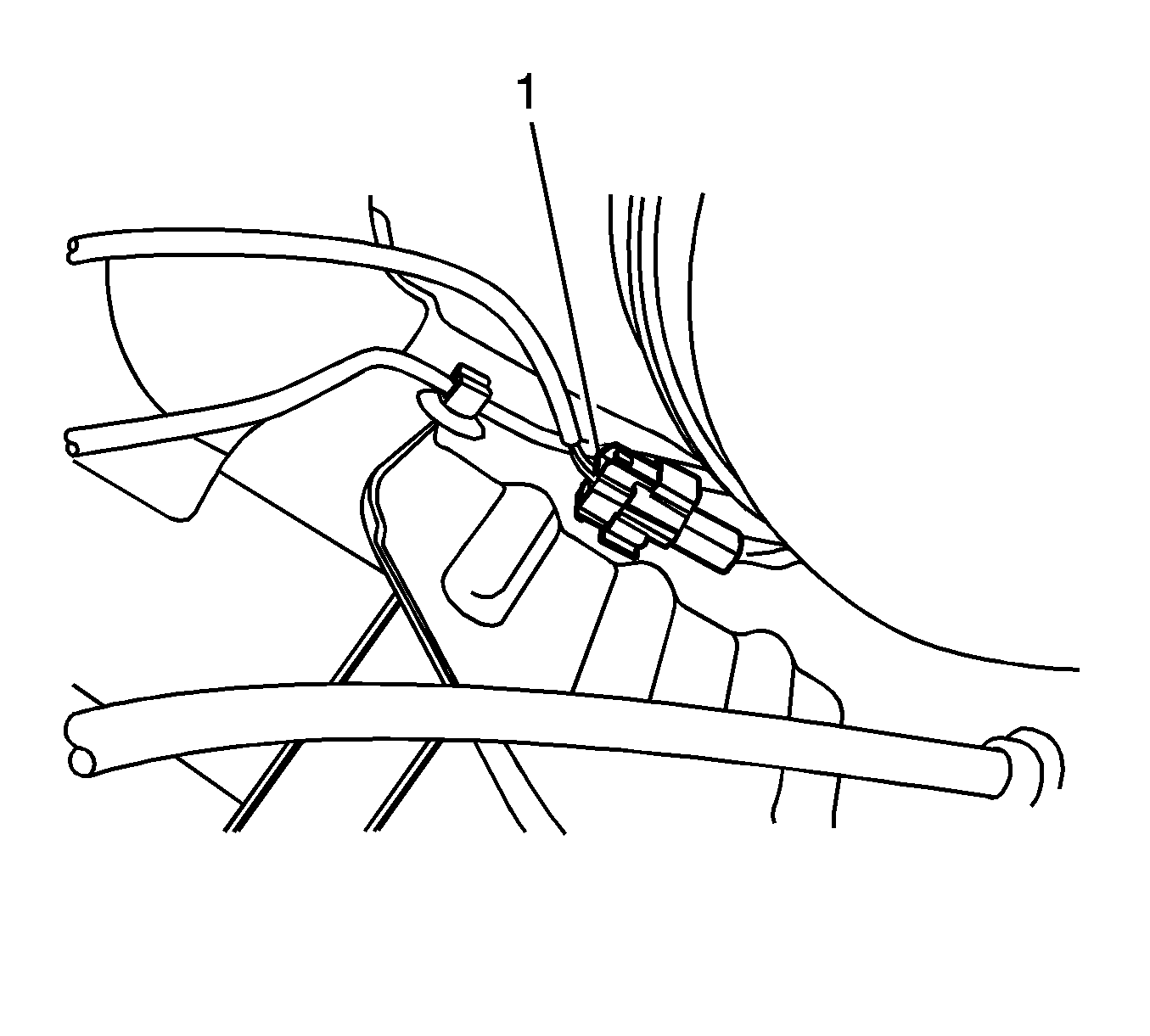

    Fig 1: Rear Wheel Speed Sensor Electrical Connector
    GM1618014Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to BATTERY DISCONNECT WARNING .
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the rear wheel speed sensor electrical connector (1).

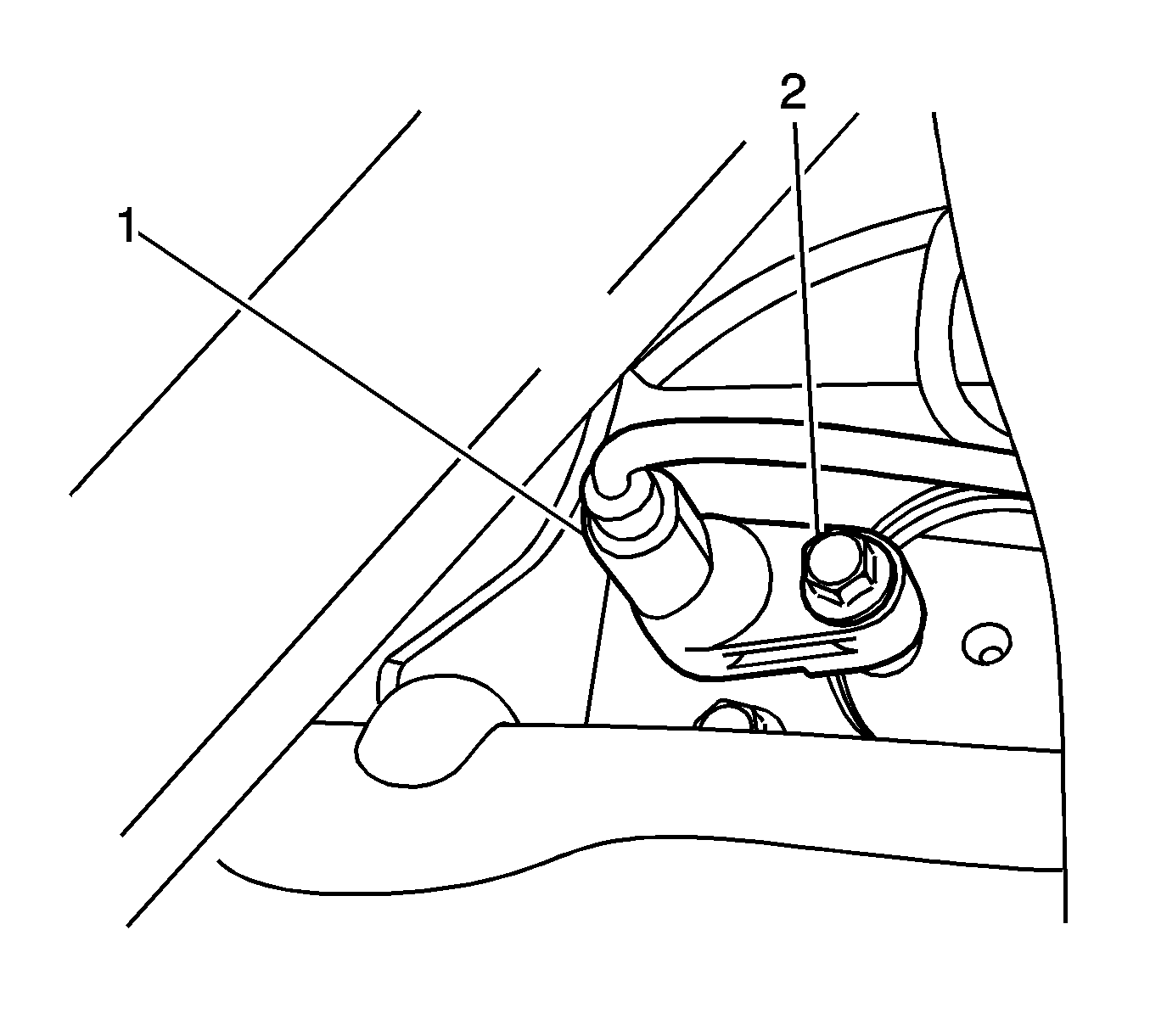

    3. Fig 2: Rear Wheel Speed Sensor Bolt
    GM1618016Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear wheel speed sensor bolt (2).
  4. Remove the rear wheel speed sensor (1) from the backing plate.
