Windshield Wiper/Washer Switch X2 (without WHB) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

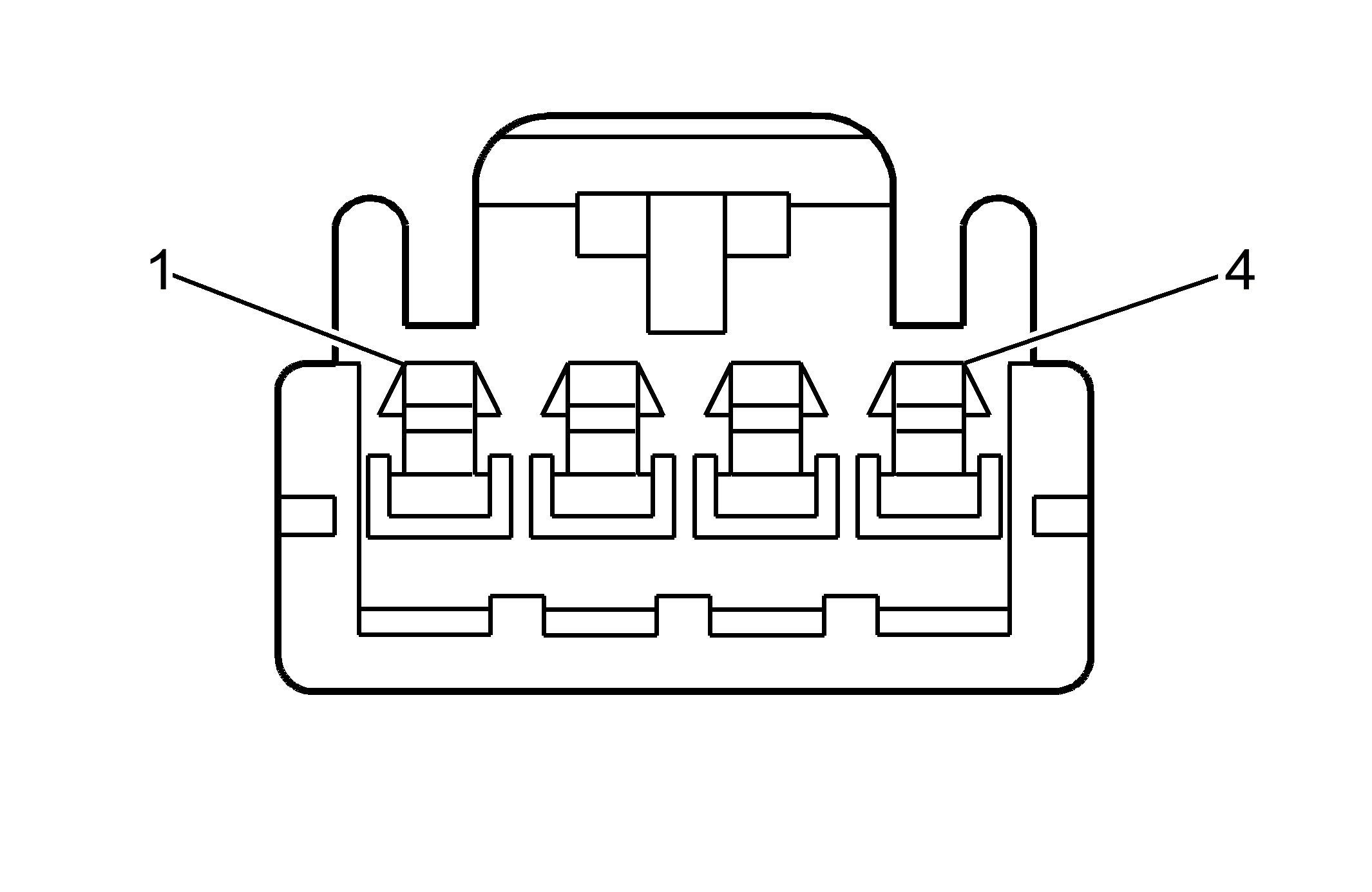

Fig 1: Windshield Wiper/Washer Switch X2 (without WHB) Connector End View
GM1908514Courtesy of GENERAL MOTORS CORP.
Windshield Wiper/Washer Switch X2 (without WHB)

Pin Wire Circuit Function
1 YE 112 Windshield Wiper Switch Signal 1
2 BK/RD 450 Ground
3 D-BU 1977 Rear Fog Lamp Relay Control (T9E)
4 BK/RD 450 Ground (T9E)
Connector Part Information
  • OEM: 0-0368501-1
  • Service: N/A
  • Description: 4-Way F, (WH)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
