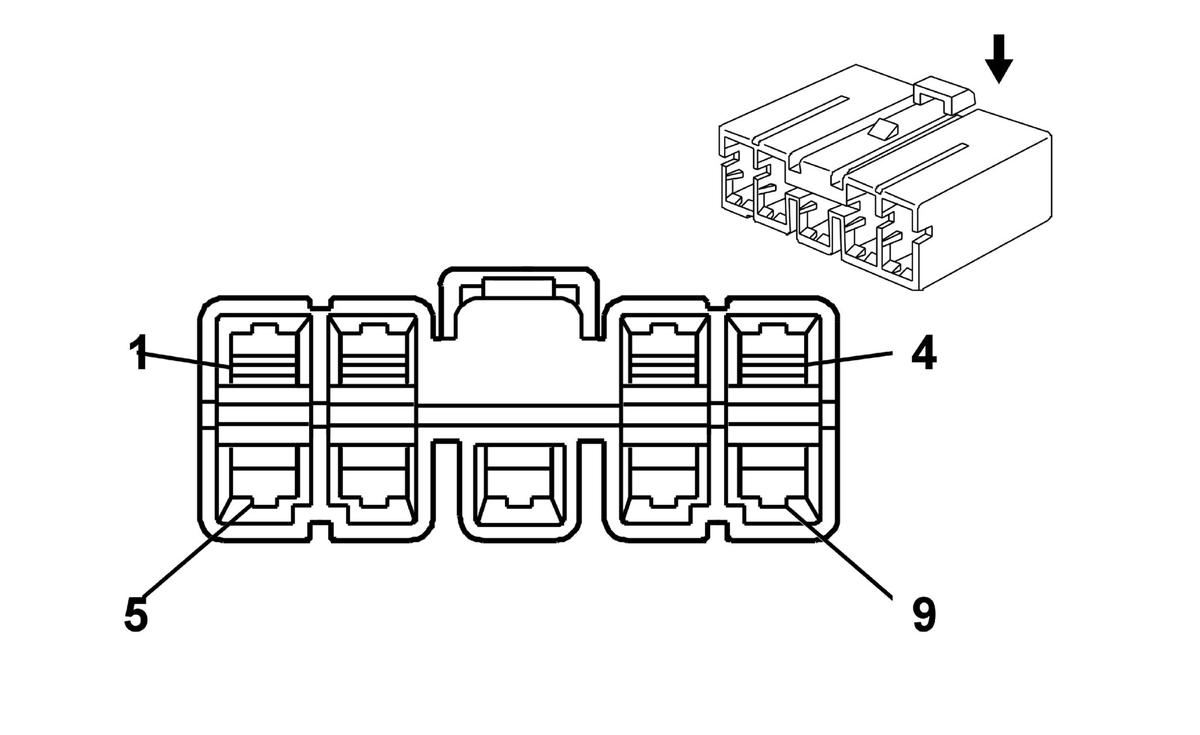

Windshield Wiper/Washer Switch X1 Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Windshield Wiper/Washer Switch X1
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | GY | 393 | Rear Window Wiper Motor Control (C25 without WHB) |
| 2 | L-GN/BK | 392 | Rear Window Washer Pump Control (C25 without WHB) |
| 3 | D-BU | 58 | Rear Window Wiper Auto Stop (C25 without WHB) |
| 4 | PK | 94 | Windshield Washer Switch Signal |
| 5 | PU | 92 | Windshield Wiper Motor High Speed |
| PU | 92 | Windshield Wiper Motor High Speed (C68) | |
| 6 | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal |
| 7 | D-GN/RD | 91 | Windshield Wiper Switch Signal 2 |
| 8 | PK | 639 | Ignition 1 Voltage |
| D-BU | 58 | Rear Window Wiper Auto Stop (without C98) | |
| 9 | D-GN | 95 | Windshield Wiper Motor High Speed |
