Windshield Wiper Motor Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

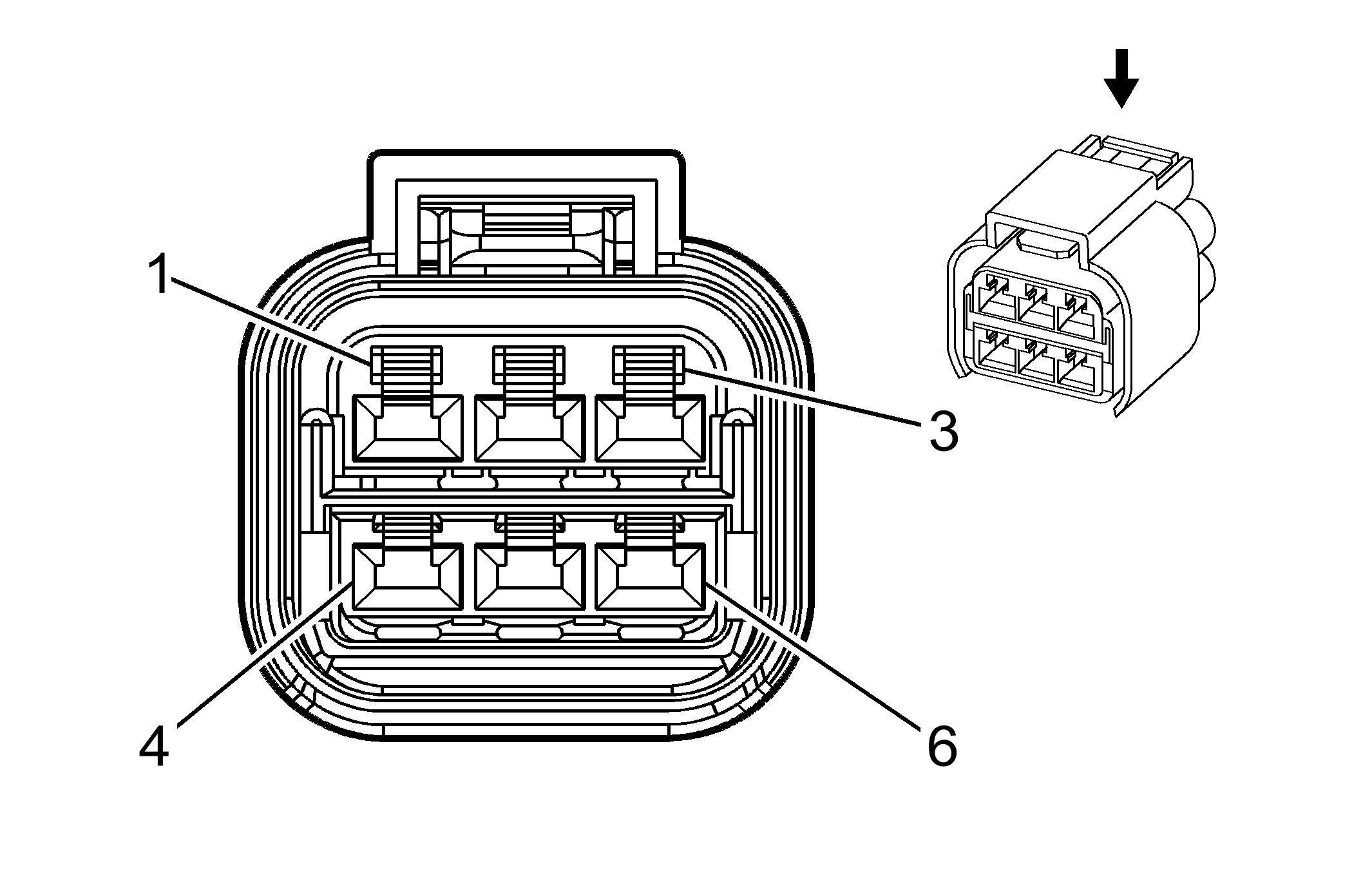

Fig 1: Windshield Wiper Motor Connector End View
GM2184098Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor

Pin Wire Circuit Function
1 - - Not Used
2 BN 96 Windshield Wiper Switch Pulse Delay Signal (CD4)
3 PK 639 Ignition 3 Voltage
4 BK 50 Ground
5 PU 92 Windshield Wiper Motor High Speed
6 D-GN 95 Windshield Wiper Motor Low Speed
Connector Part Information
  • OEM: 936257-2
  • Service: Not Available
  • Description: 6-Way F Sealed, (BK)
Terminal Part Information
  • Terminated Lead: Service by Terminal Replacement Only
  • Release Tool: 15315247
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
