Windshield Washer Fluid Pump Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

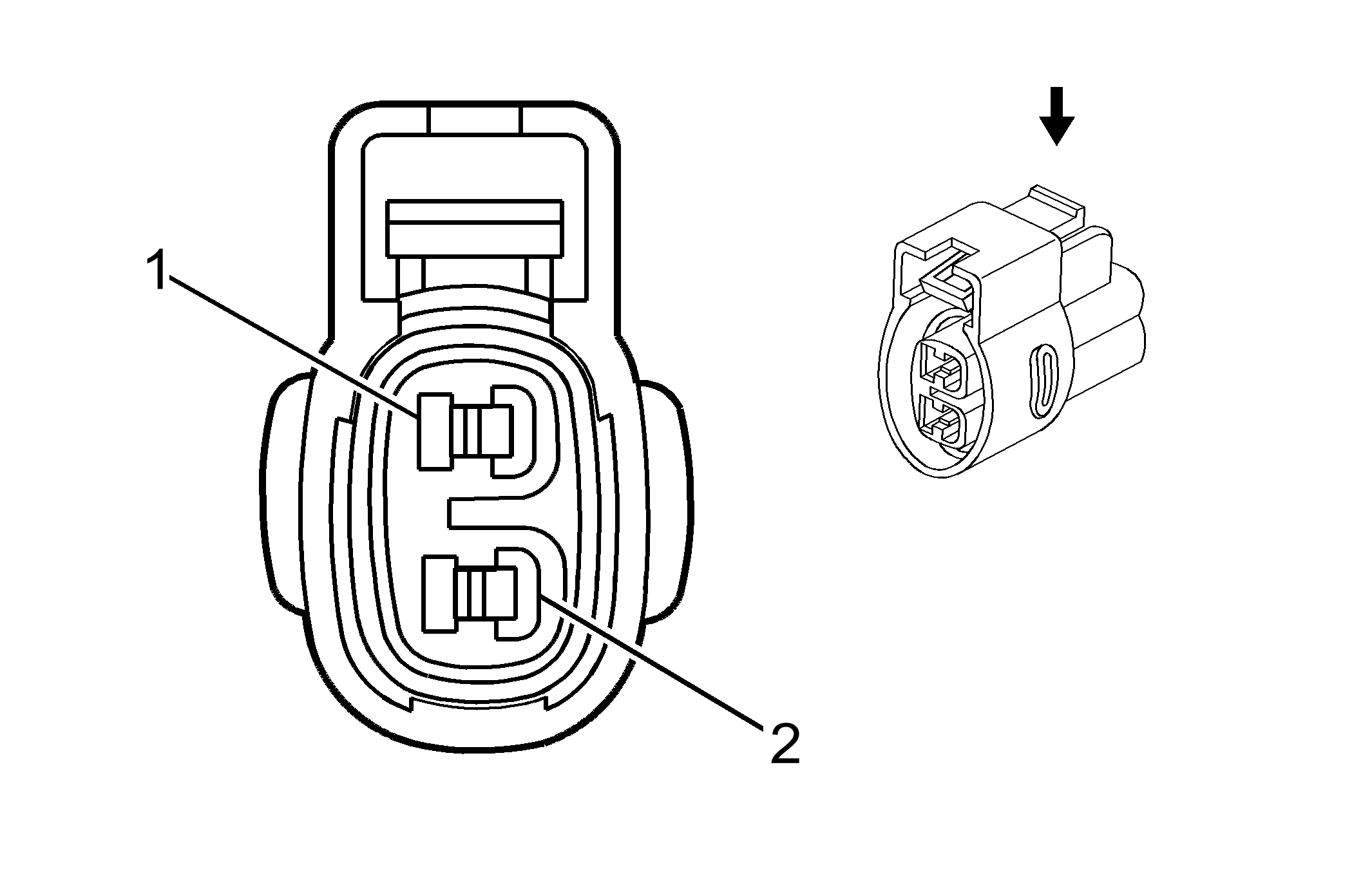

Fig 1: Windshield Washer Fluid Pump Connector End View
GM1467079Courtesy of GENERAL MOTORS CORP.
Windshield Washer Fluid Pump

Pin Wire Circuit Function
1 BK 50 Ground
2 PK 94 Windshield Washer Switch Signal
Connector Part Information
  • OEM: MG 640605-5
  • Service: See Catalog
  • Description: 2-Way F, (WH)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
