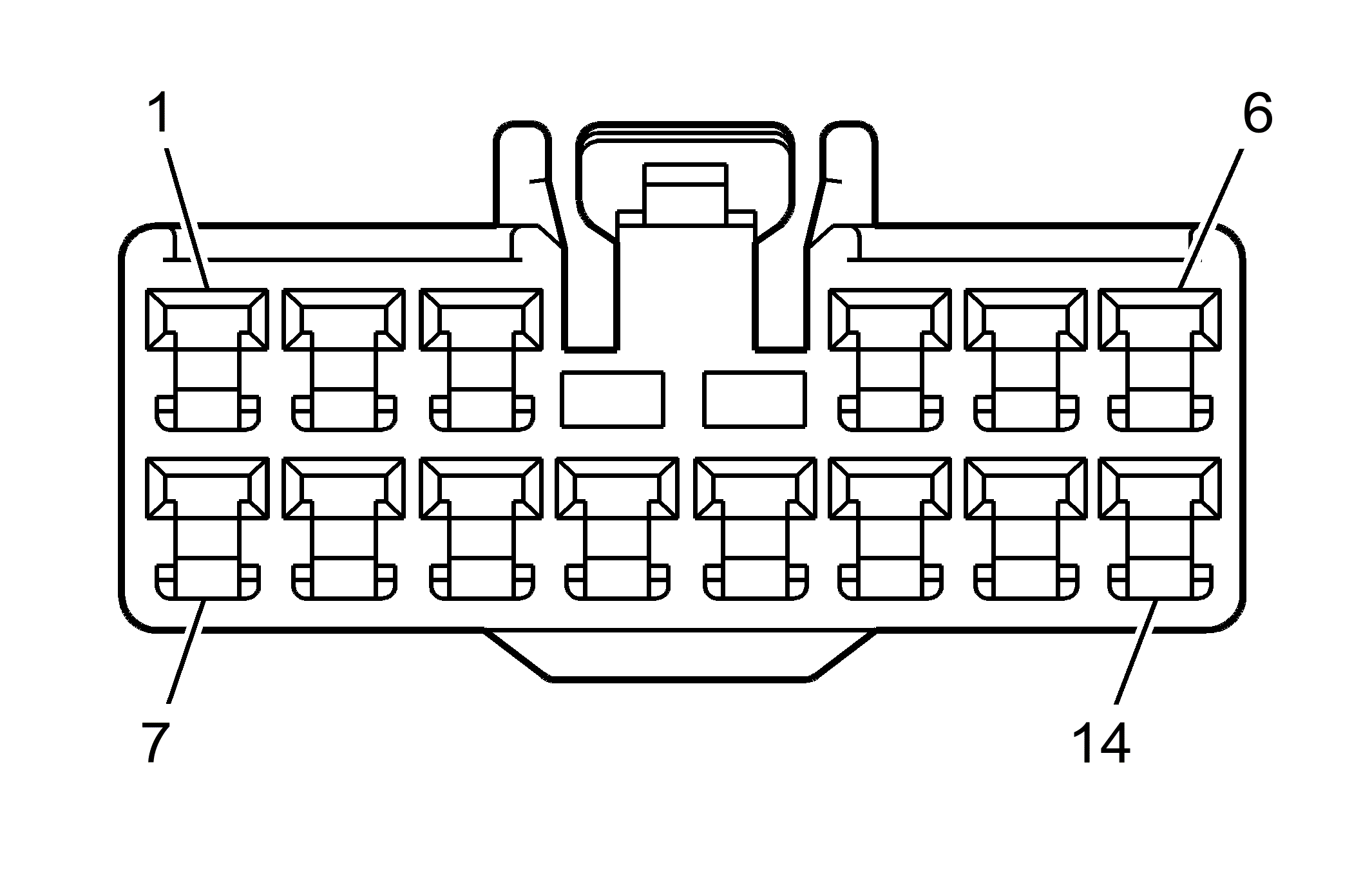

Window Switch - Driver (ABZ) Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Window Switch - Driver (ABZ)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | D-BU | 164 | Power Window Motor Left Front Up Control |
| 2 | BN | 165 | Power Window Motor Left Front Down Control |
| 3 | L-GN/BK | 580 | Battery Positive Voltage |
| 4 | L-BU | 166 | Power Window Master Switch Right Front Up Signal (LHD) |
| BN | 167 | Power Window Master Switch Right Front Down Signal (RHD) | |
| 5 | BN/WH | 6166 | Front Door Window Short Time Down Control |
| BN/WH | 6166 | Front Door Window Short Time Down Control | |
| 6 | BN | 167 | Power Window Master Switch Right Front Down Signal (LHD) |
| D-BU | 1307 | Power Window Master Switch Lockout Signal (RHD) | |
| 7 | D-BU | 1307 | Power Window Master Switch Lockout Signal (LHD) |
| L-BU | 166 | Power Window Motor Right Front Down Control (RHD) | |
| 8 | D-GN | 168 | Power Window Master Switch Left Rear Up Signal |
| 9 | BN/WH | 6166 | Front Door Window Short Time Down Control |
| 10 | L-GN/BK | 580 | Battery Positive Voltage |
| 11 | BK | 650 | Ground |
| 12 | PU | 169 | Power Window Master Switch Left Rear Down Signal |
| 13 | L-GN | 170 | Power Window Master Switch Right Rear Up Signal |
| 14 | PU | 171 | Power Window Master Switch Right Rear Down Signal |
Connector Part Information
|
Terminal Part Information
|
