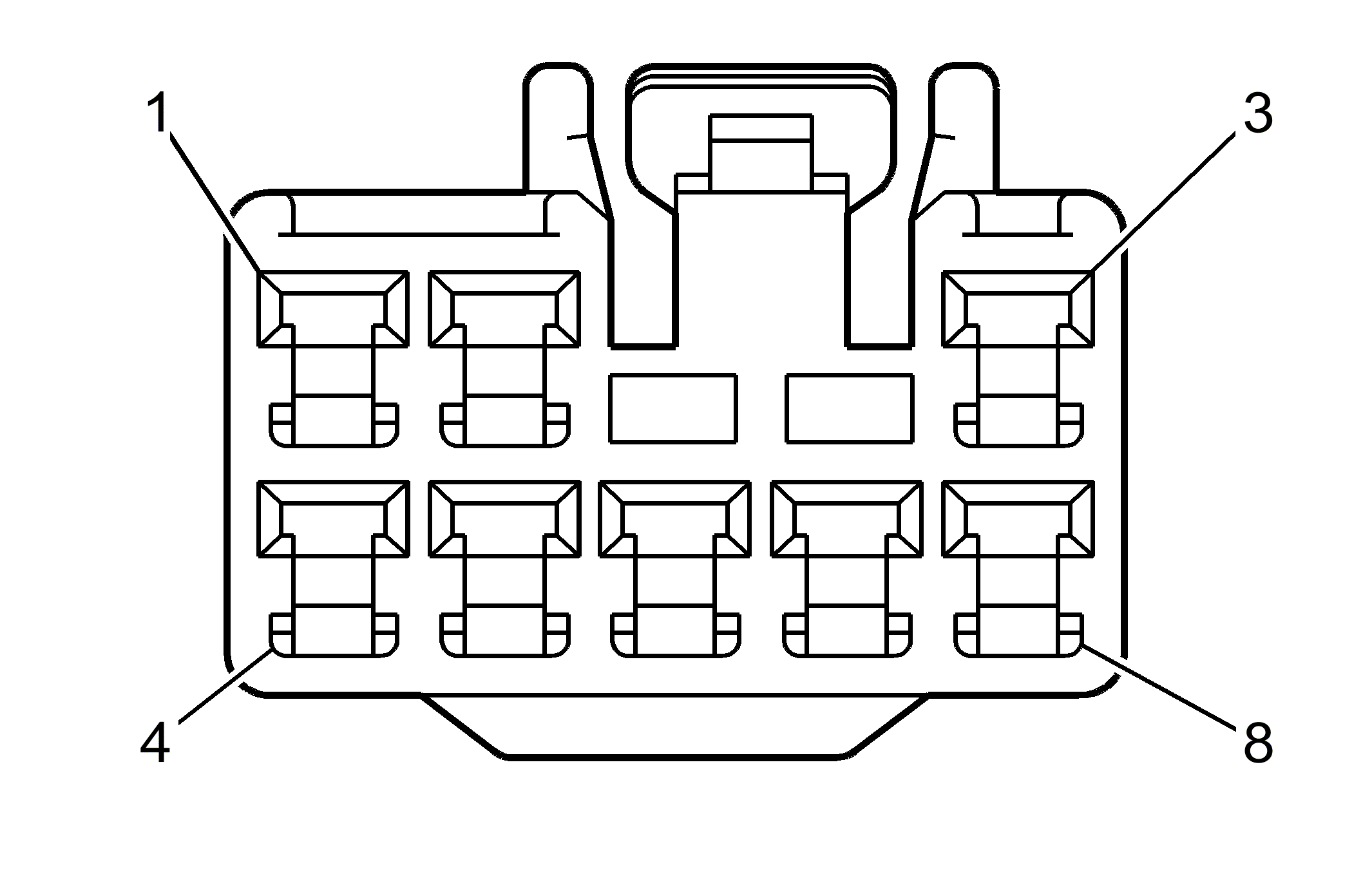

Window Switch - Driver (A32) Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Window Switch - Driver (A32)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | D-BU | 164 | Power Window Motor Left Front Up Control (LHD) |
| L-BU | 166 | Power Window Master Switch Right Front Up Signal (RHD) | |
| 2 | - | - | Not Used |
| 3 | BN | 167 | Power Window Master Switch Right Front Down Signal (LHD) |
| BN | 165 | Power Window Motor Left Front Down Control (RHD) | |
| 4 | - | - | Not Used |
| 5 | L-GN/BK | 580 | Battery Positive Voltage |
| 6 | BN | 165 | Power Window Motor Left Front Down Control (LHD) |
| BN | 167 | Power Window Master Switch Right Front Down Signal (RHD) | |
| 7 | L-BU | 166 | Power Window Master Switch Right Front Up Signal (LHD) |
| D-BU | 164 | Power Window Motor Left Front Up Control (RHD) | |
| 8 | BK | 650 | Ground |
Connector Part Information
|
Terminal Part Information
|
