Wheel Speed Sensor (WSS) - Left Front (JM4) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

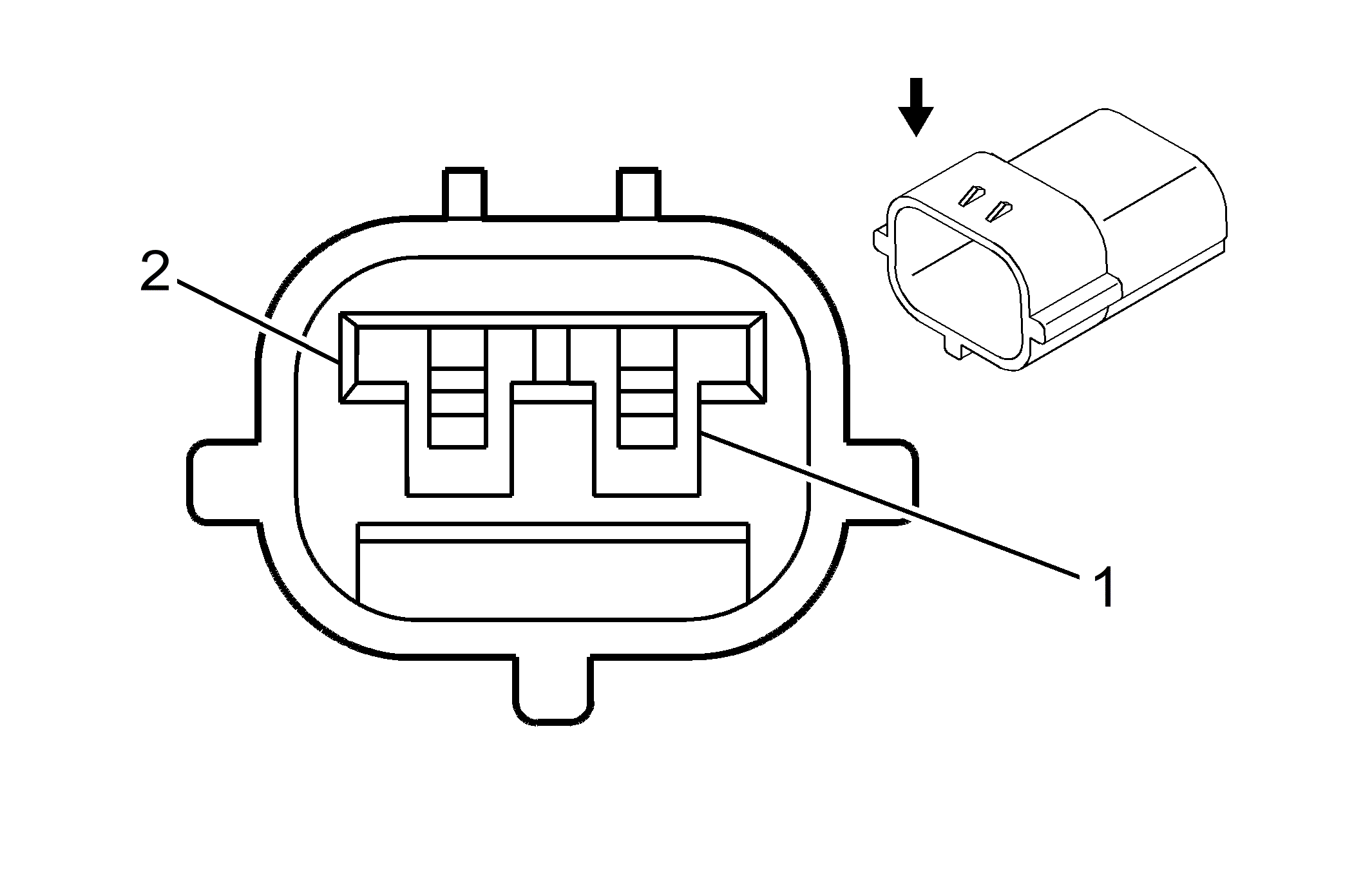

Fig 1: Wheel Speed Sensor (WSS) - Left Front (JM4) Connector End View
GM1466983Courtesy of GENERAL MOTORS CORP.
Wheel Speed Sensor (WSS) - Left Front (JM4)

Pin Wire Circuit Function
1 L-BU 830 Left Front Wheel Speed Sensor Signal
2 YE 873 Left Front Wheel Speed Sensor Low Reference
Connector Part Information
  • OEM: 174354-2
  • Service: N/A
  • Description: 2-Way M Sealed, (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
