Turn Signal/Multifunction Switch X2 Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

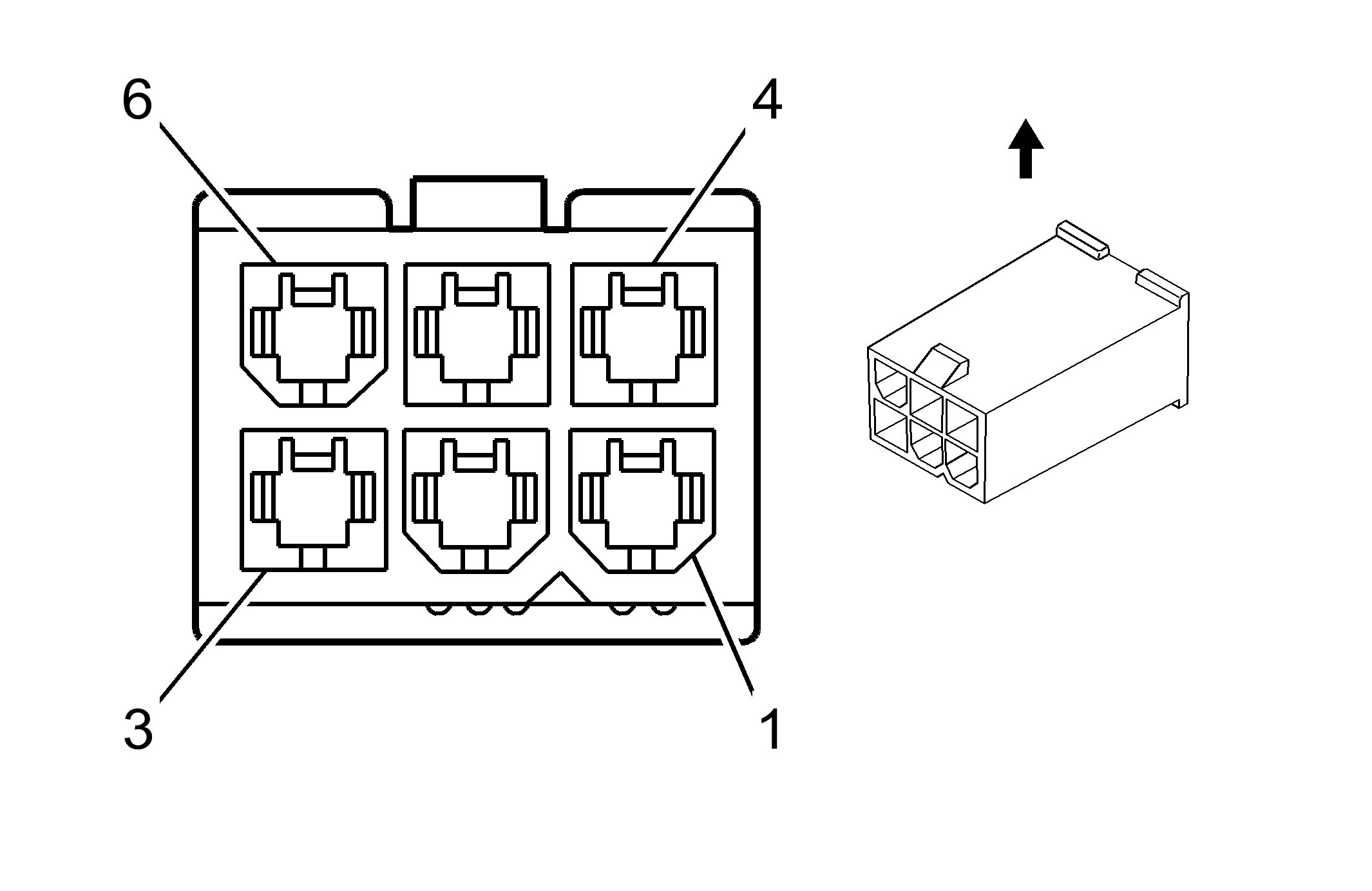

Fig 1: Turn Signal/Multifunction Switch X2 Connector End View
GM2182084Courtesy of GENERAL MOTORS CORP.
Turn Signal/Multifunction Switch X2

Pin Wire Circuit Function
1 BK 450 Ground
2 BK/WH 1352 Headlamp Control
3 BK/WH 450 Ground
4 - - Not Used
5 D-GN/WH 1317 Fog Lamp Relay Control (T96)
6 L-BU 74 Park Lamp Switch Signal
Connector Part Information
  • OEM: 5559-06P
  • Service: N/A
  • Description: 6-Way F, (NA)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: J-38125-560
  • Diagnostic Test Probe: J-35616-12
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
