Turn Signal/Multifunction Switch X1 Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

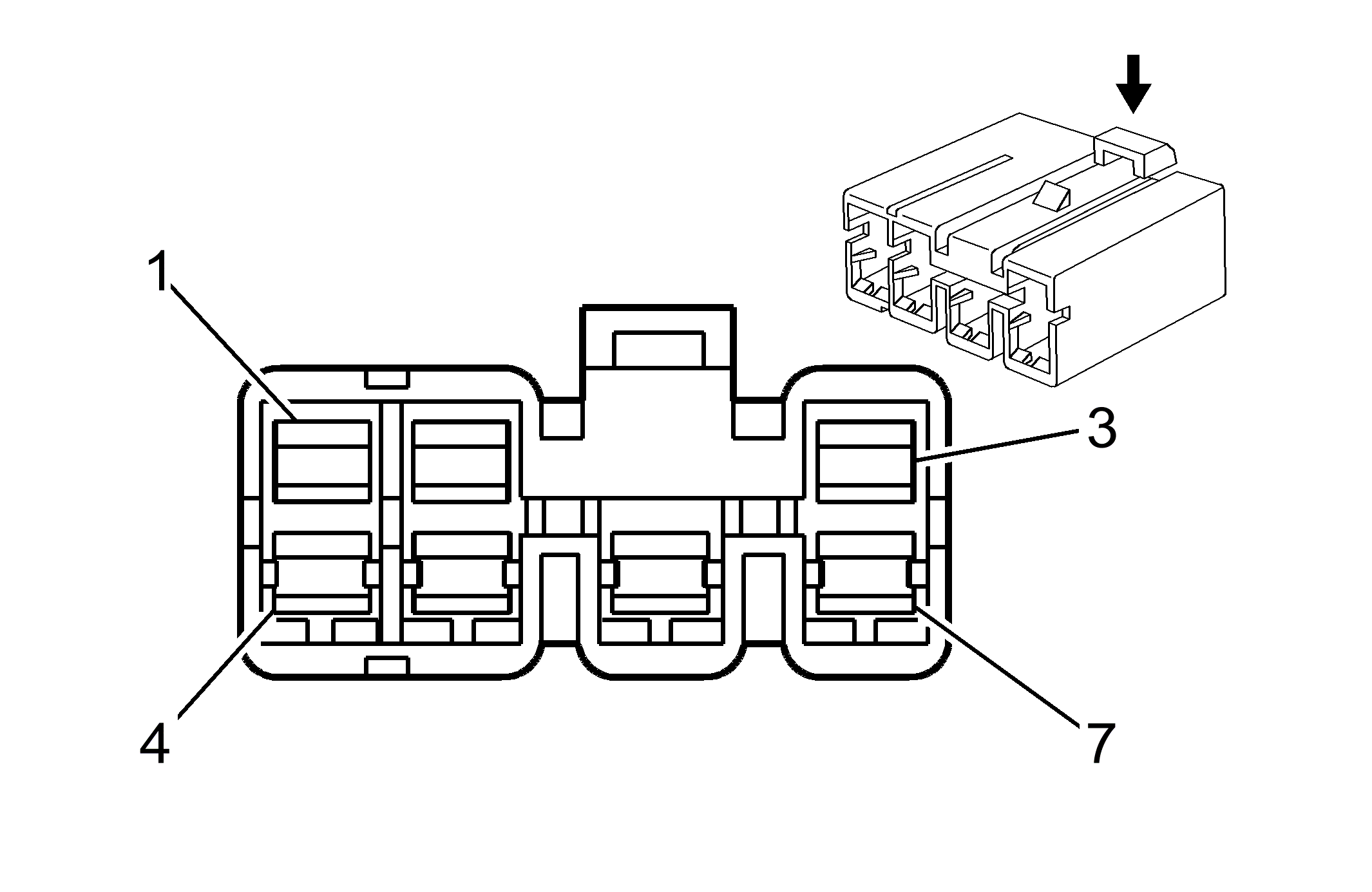

Fig 1: Turn Signal/Multifunction Switch X1 Connector End View
GM1467023Courtesy of GENERAL MOTORS CORP.
Turn Signal/Multifunction Switch X1

Pin Wire Circuit Function
1 L-BU 14 Left Turn Signal Lamps Supply Voltage
2 PU 16 Turn Signal Flasher Signal
3 D-BU 15 Right Turn Signal Lamps Supply Voltage
4 L-BU 1346 Headlamp Supply Voltage
L-BU 1346 Headlamp Supply Voltage (WHB)
5 WH 352 Headlamp Relay Coil Supply Voltage
6 BK/WH 1352 Headlamp Control
BK/WH 1352 Headlamp Control
7 BK 450 Ground
Connector Part Information
  • OEM: MG 610203
  • Service: N/A
  • Description: 7-Way F, (NA)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
