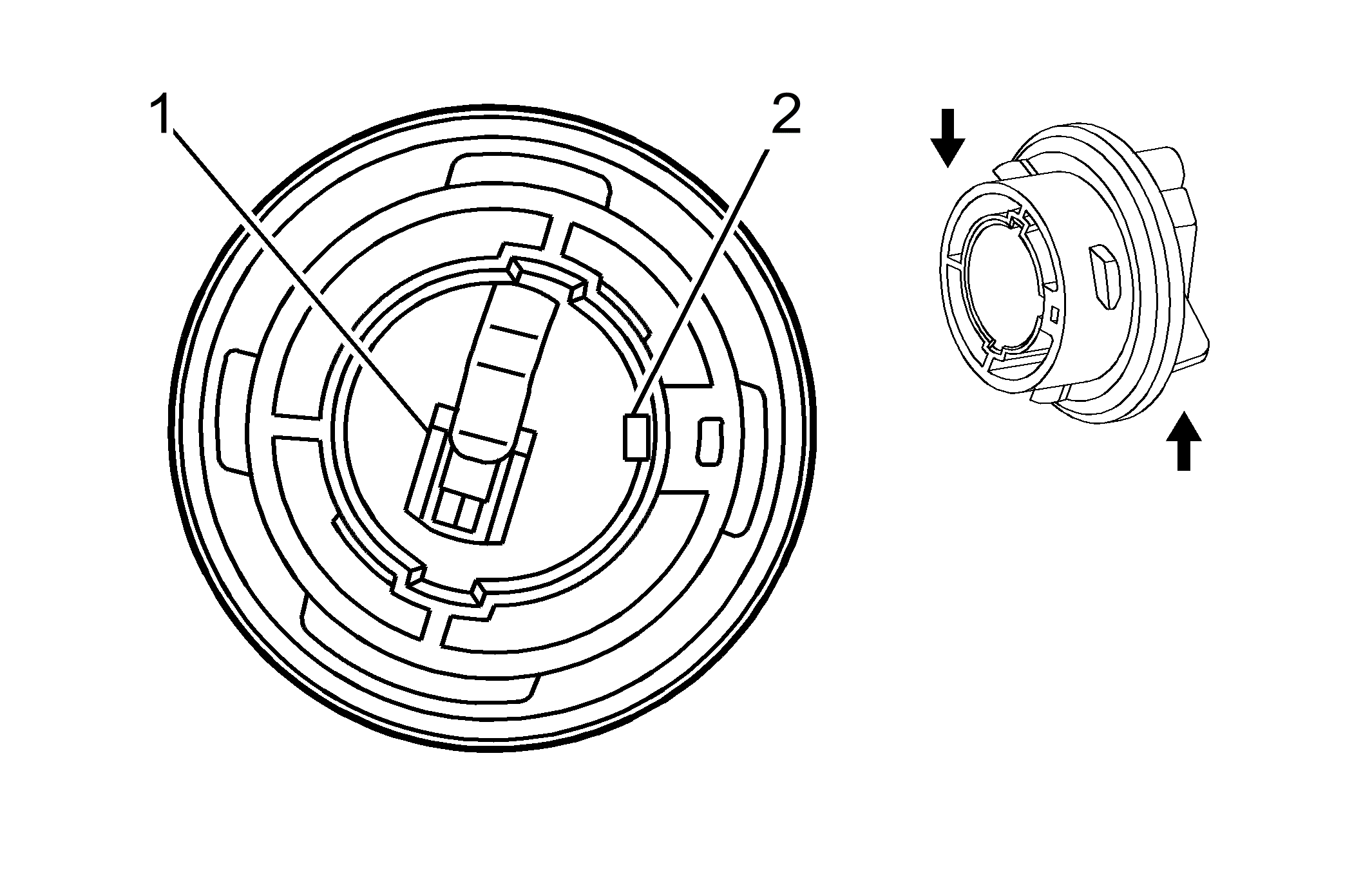

Turn Signal Lamp - Right Rear (Hatchback) Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP. Turn Signal Lamp - Right Rear (Hatchback)
| Pin |
Wire |
Circuit |
Function |
| 1 |
YE |
15 |
Right Turn Signal Supply Voltage |
| 2 |
BK/YE |
450 |
Ground |
Connector Part Information
- OEM: 35843
- Service: N/A
- Description: 2-Way Sealed, (GY)
|
