Turn Signal Lamp - Right Front (T84) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

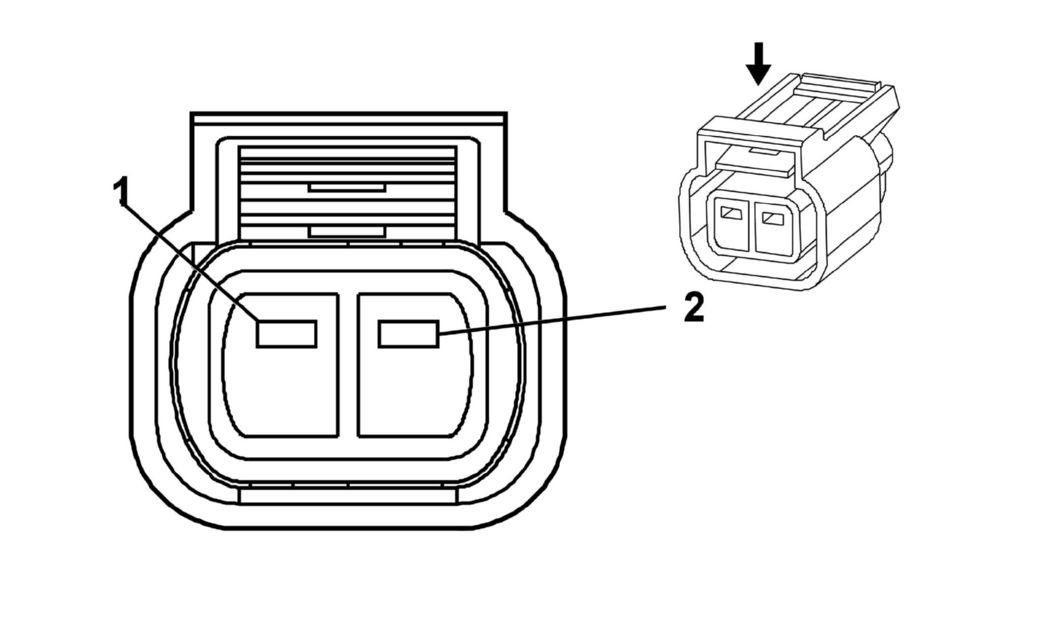

Fig 1: Turn Signal Lamp - Right Front (T84) Connector End View
GM1830934Courtesy of GENERAL MOTORS CORP.
Turn Signal Lamp - Right Front (T84)

Pin Wire Circuit Function
1 BK 250 Ground
2 D-BU 15 Right Turn Signal Supply Voltage
Connector Part Information
  • OEM: 936184-2
  • Service: N/A
  • Description: 2-Way F Sealed, (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
