Tire Pressure Module (UJ9) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

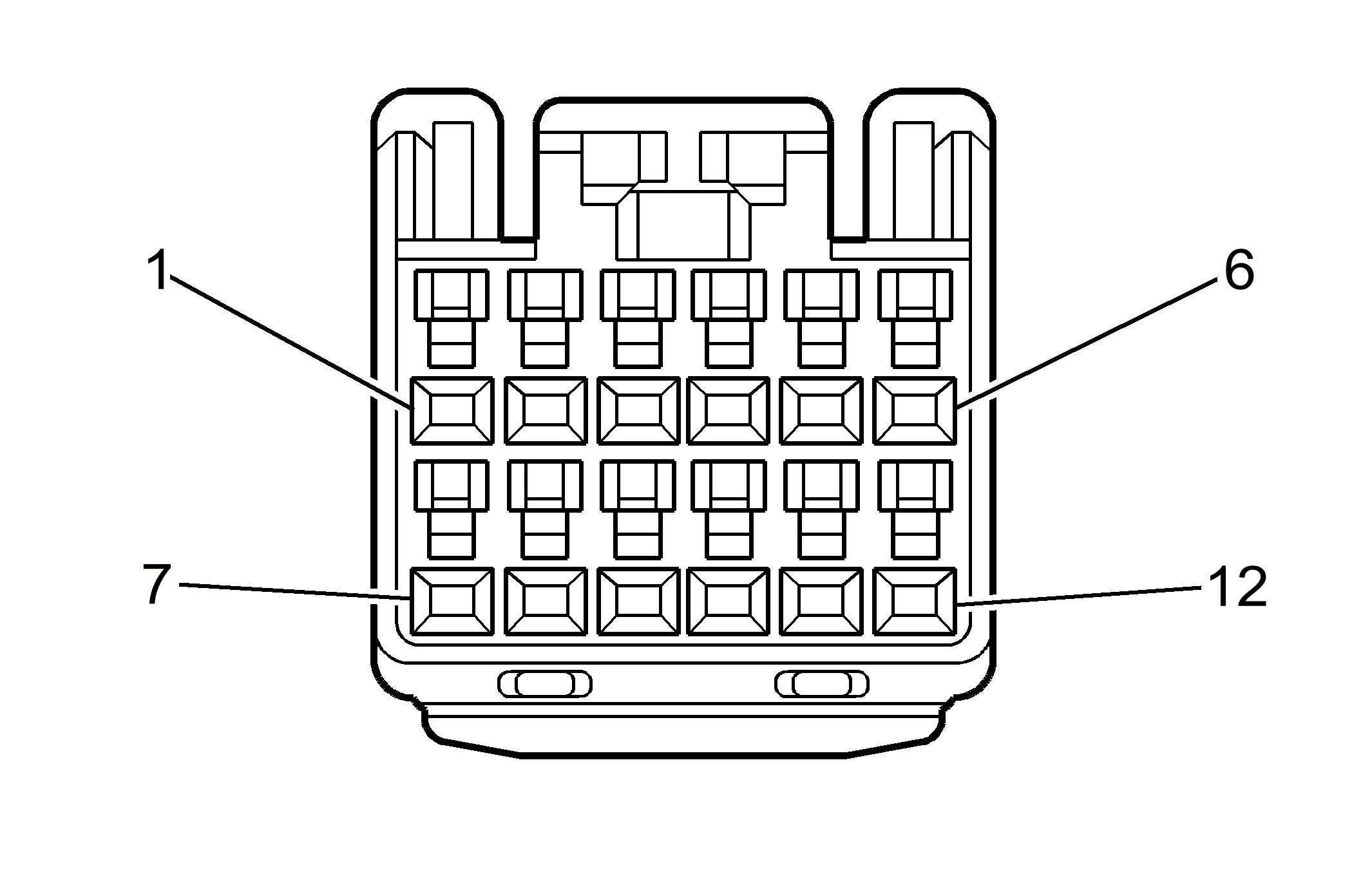

Fig 1: Tire Pressure Module (UJ9) Connector End View
GM1972923Courtesy of GENERAL MOTORS CORP.
Tire Pressure Module (UJ9)

Pin Wire Circuit Function
1 RD/WH 540 Battery Positive Voltage
2 D-GN/WH 817 Vehicle Speed Signal
3 BK/WH 2051 Serial Data Signal
4 BN/WH 33 Brake Warning Indicator Control
5 L-BU 74 Park Lamp Switch Signal
6 - - Not Used
7 BN 25 Charge Indicator Control
8 PK 239 Ignition 1 Voltage
9 D-GN 29 Horn Control
10 D-BU 7001 Low Tire Pressure Indicator Control
11 BK 450 Ground
12 - - Not Used
Connector Part Information
  • OEM: 64002-1215
  • Service: N/A
  • Description: 12-Way F, (GY)
Terminal Part Information
  • Terminated Lead: Service by Terminal Replacement Only
  • Release Tool: 15315247
  • Diagnostic Test Probe: J-35616-16 (L-GN)
  • Terminal/Tray: 175266-5/15
  • Core/Insulation Crimp: (0.35 wire) - J/J
  • Core/Insulation Crimp: (0.5 wire) - K/K
