Sunroof Control Module (CF5) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

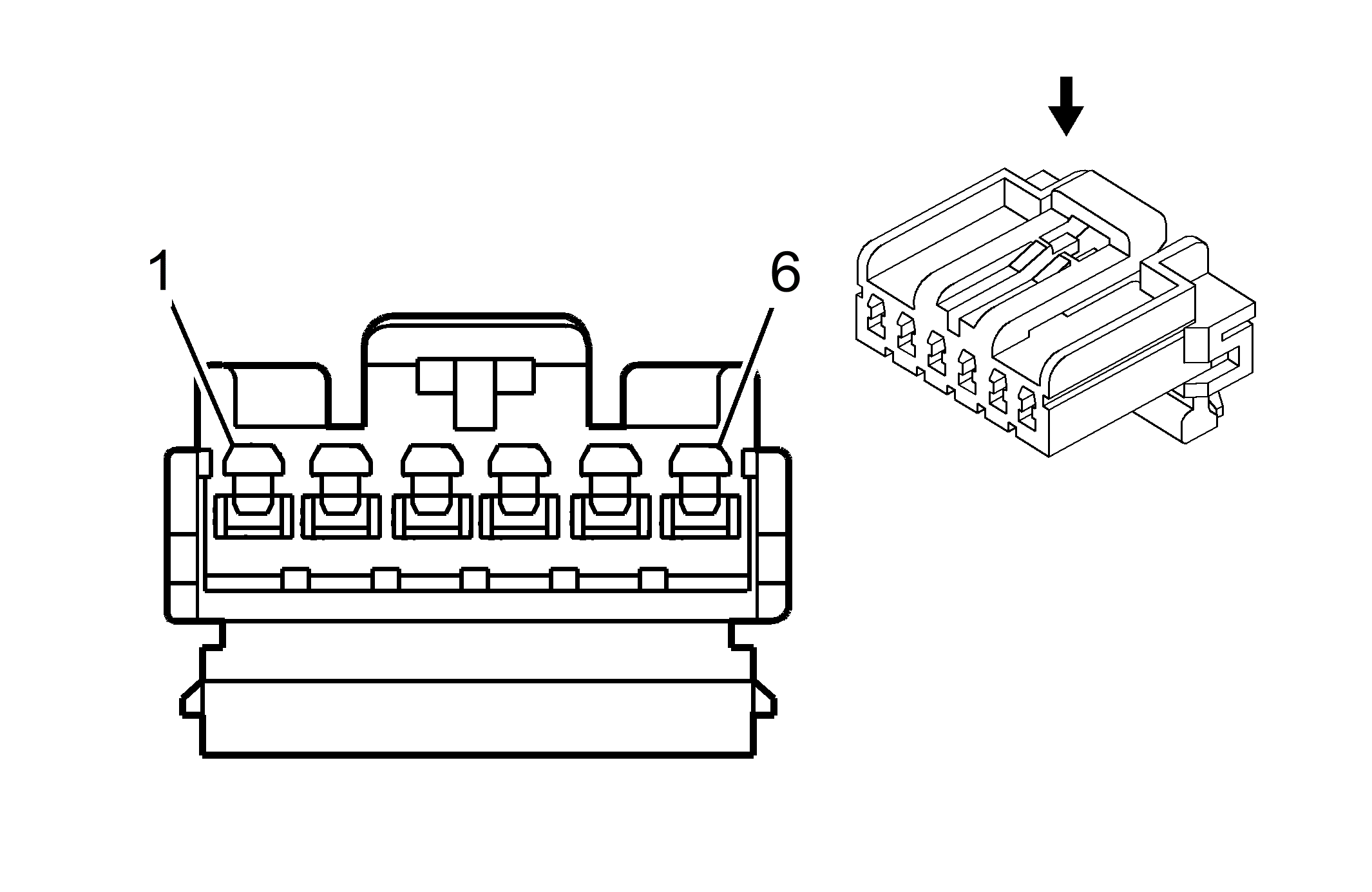

Fig 1: Sunroof Control Module (CF5) Connector End View
GM1468516Courtesy of GENERAL MOTORS CORP.
Sunroof Control Module (CF5)

Pin Wire Circuit Function
1 YE 110 Sunroof Switch Close Signal
2 - - Not Used
3 RD/WH 640 Battery Positive Voltage
4 BK 450 Ground
5 - - Not Used
6 BN 100 Sunroof Switch Open Signal
Connector Part Information
  • OEM: AMP 174923
  • Service: N/A
  • Description: 6-Way, (WH)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
