Steering Wheel Control Switch - Left (UK3) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

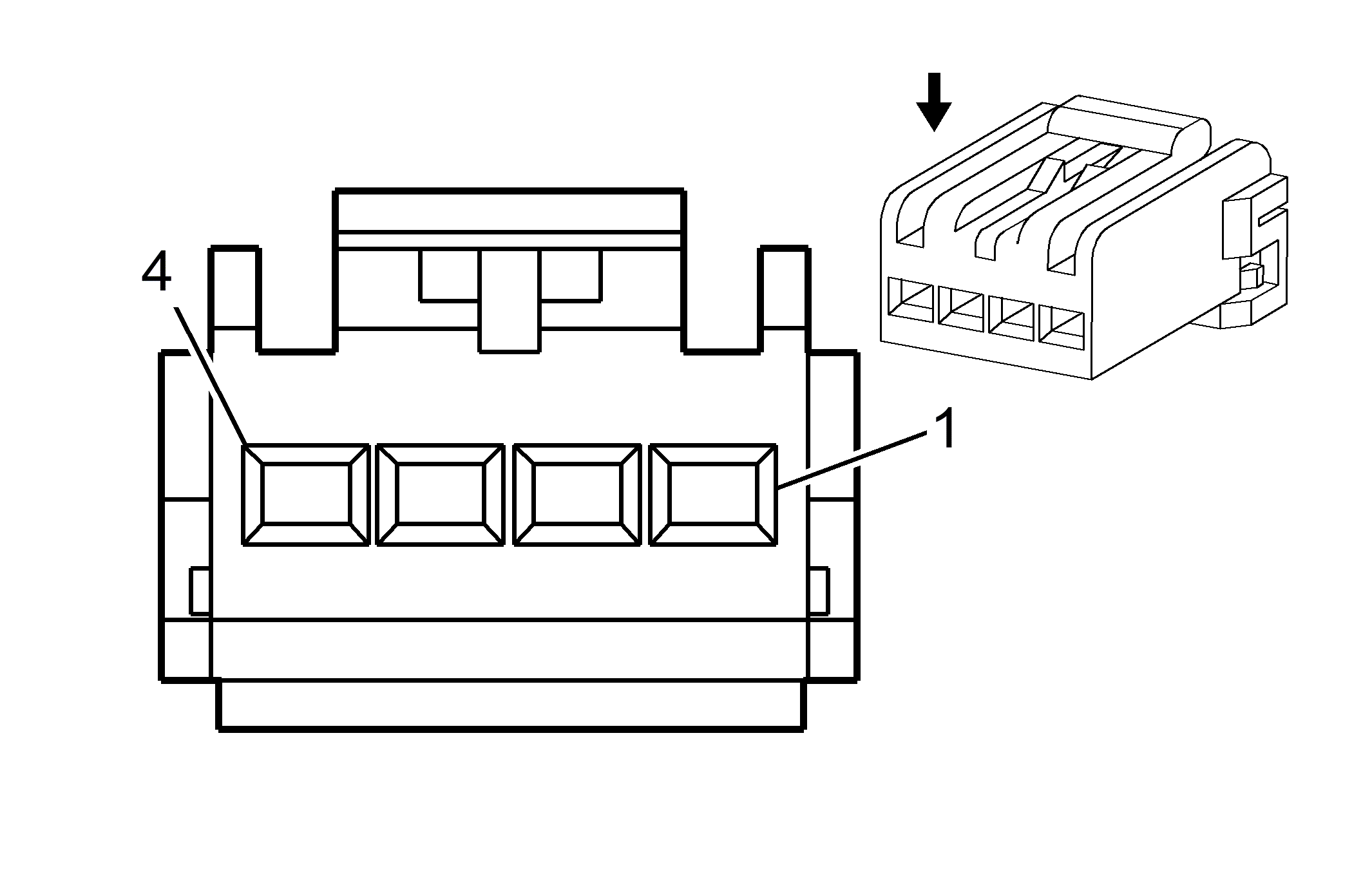

Fig 1: Steering Wheel Control Switch - Left (UK3) Connector End View
GM1835113Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch - Left (UK3)

Pin Wire Circuit Function
1 RD - Steering Wheel Controls Signal
2-3 - - Not Used
4 YE - Remote Radio Return - Audio
Connector Part Information
  • OEM: 652999
  • Service: N/A
  • Description: 4-Way F, (WH)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
