Inflatable Restraint Side Impact Module - Right (AJ7) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

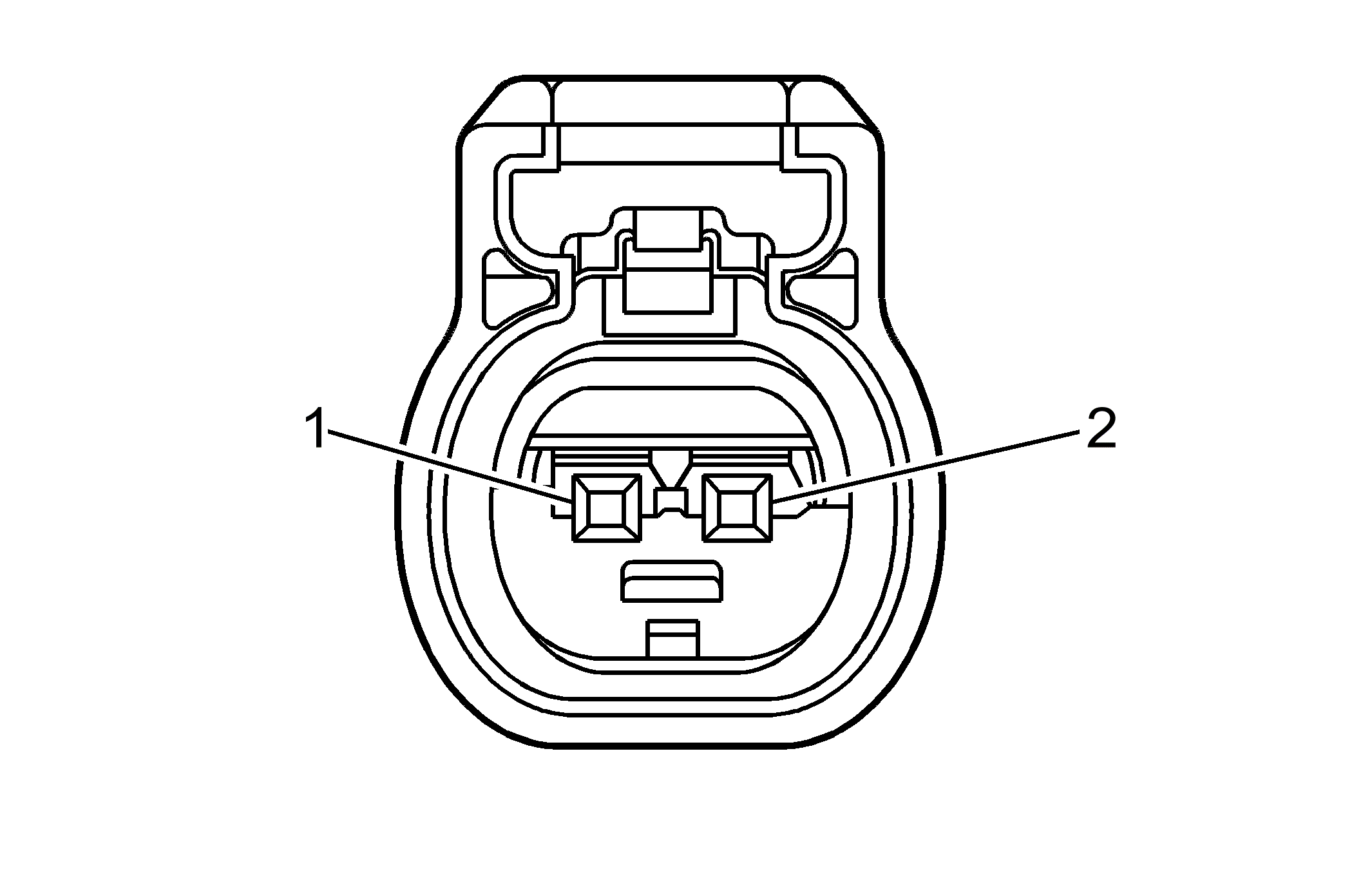

Fig 1: Inflatable Restraint Side Impact Module - Right (AJ7) Connector End View
GM1957570Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Module - Right (AJ7)

Pin Wire Circuit Function
1 D-BU 2104 Side Impact Module - Right - Low Control
2 GY 2103 Side Impact Module - Right - High Control
Connector Part Information
  • OEM: 7C83-5524-70
  • Service: N/A
  • Description: 2-Way F Sealed, (YE)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
