Inflatable Restraint I/P Module (AK5) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

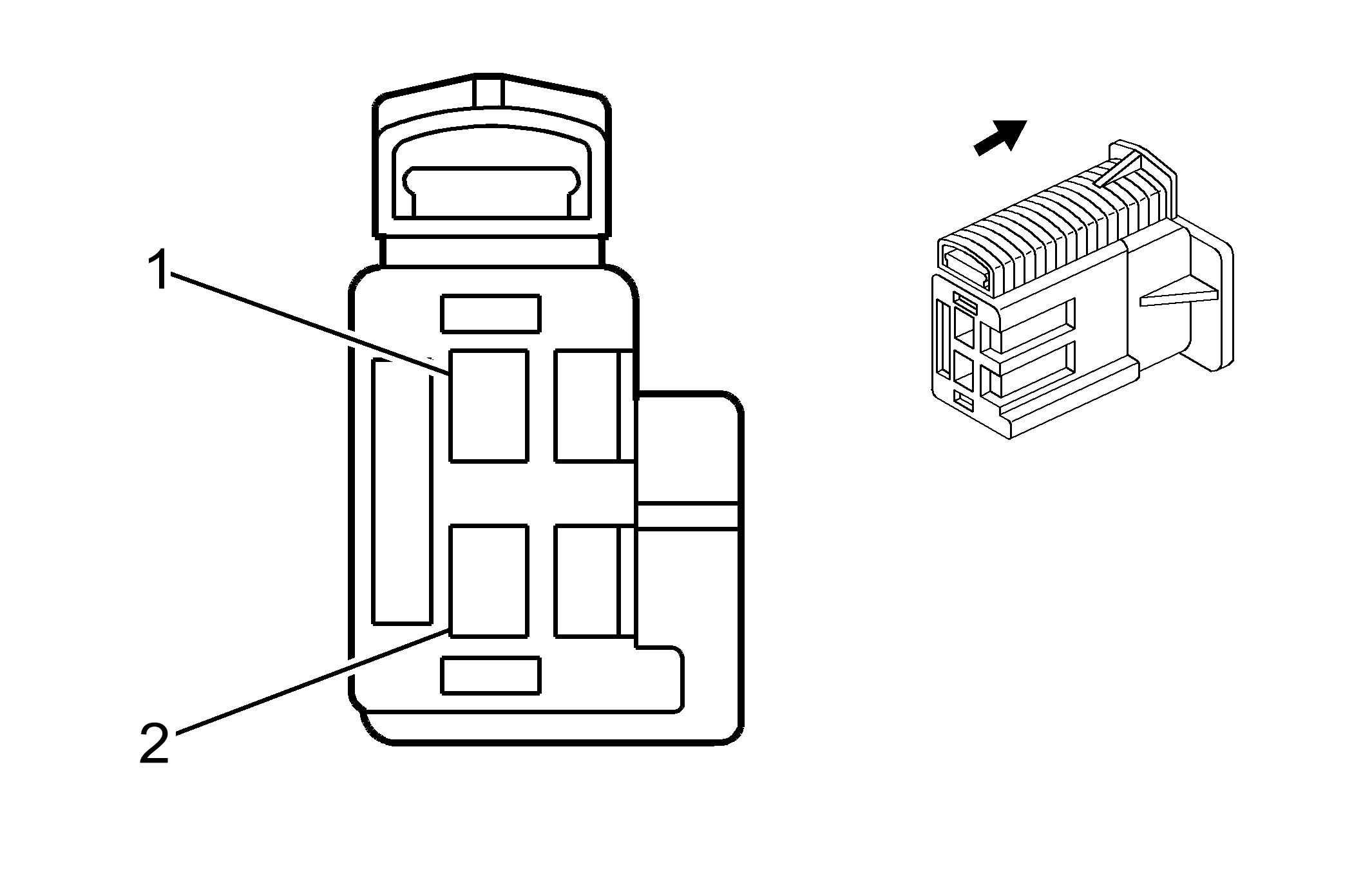

Fig 1: Inflatable Restraint I/P Module (AK5) Connector End View
GM1481288Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint I/P Module (AK5)

Pin Wire Circuit Function
1 WH/BK 1403 I/P Module - High Control
2 D-GN/WH 1404 I/P Module - Low Control
Connector Part Information
  • OEM: 60201724
  • Service: N/A
  • Description: 2-Way F, (YE)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
