Ignition Control Module (ICM) (LDT/LXV) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

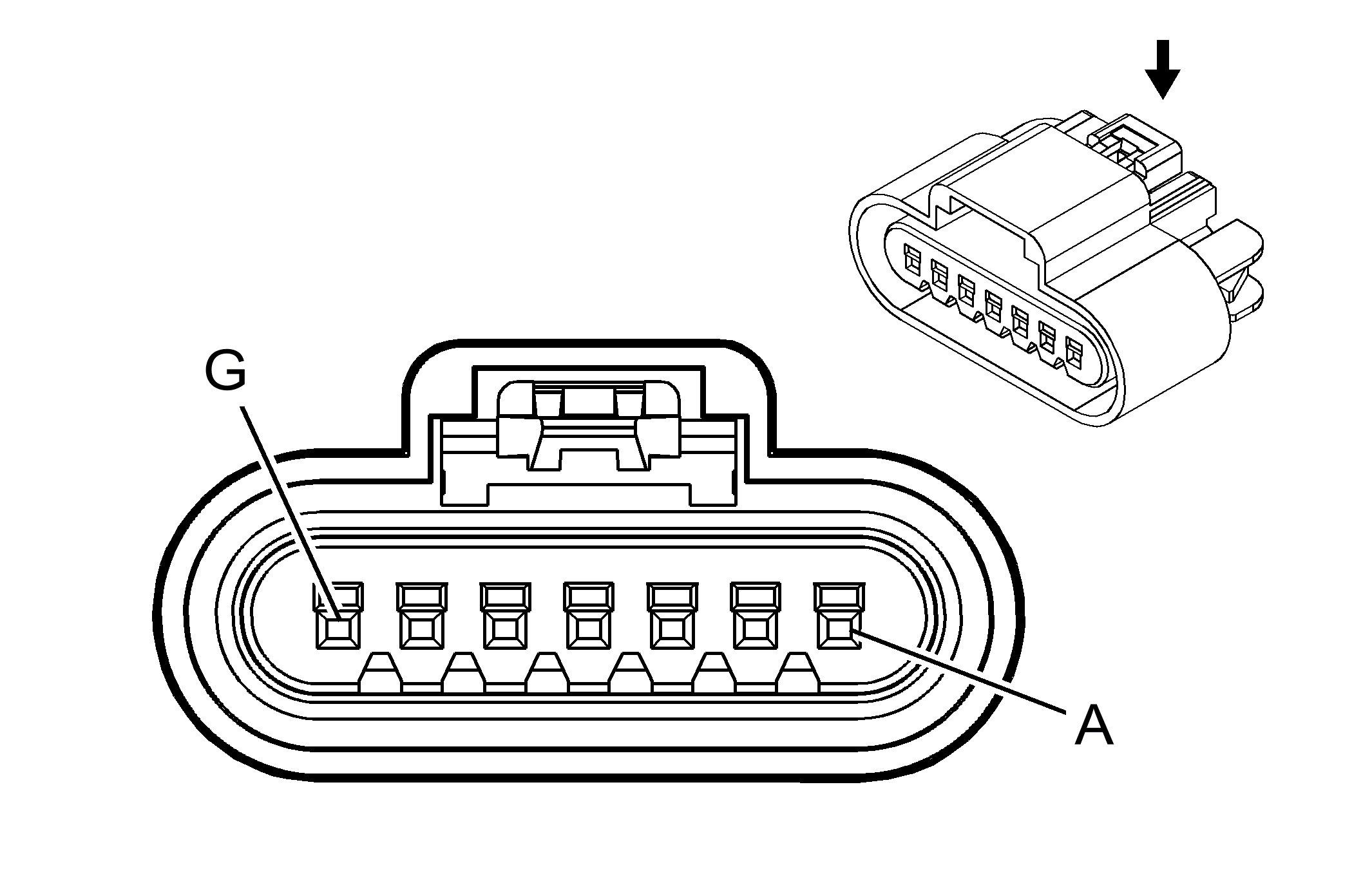

Fig 1: Ignition Control Module (ICM) (LDT/LXV) Connector End View

Courtesy of GENERAL MOTORS CORP.

Ignition Control Module (ICM) (LDT/LXV)

Pin	Wire	Circuit	Function
A	PK	539	Ignition 1 Voltage (WHB)
A	OG	1733	Ignition 1 Voltage (without WHB)
B	BK	51	Ground
C	YE	131	Low Reference (WHB)
D	RD	423	IC Timing Control
E	PU	406	IC Timing Control [B]
F	BK	405	Lower Air Temperature Sensor Signal
G	D-BU	424	IC Timing Signal

Connector Part Information

OEM: 13604541
Service: 15306317
Description: 7-Way F, Sealed (BK)

Terminal Part Information

Terminated Lead: Service by Connector Assembly - 15306317
Release Tool: 15315247
Diagnostic Test Probe: J-35616-2A (GY)
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
