IGN-1 Relay (with WHB) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

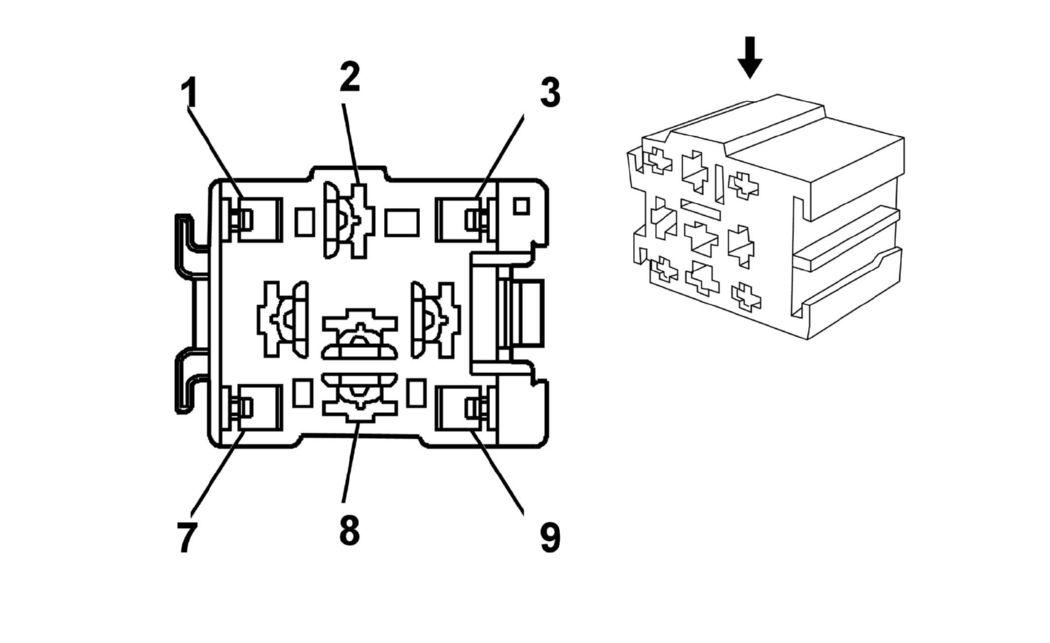

Fig 1: IGN-1 Relay (with WHB) Connector End View
GM1837413Courtesy of GENERAL MOTORS CORP.
IGN-1 Relay (with WHB)

Pin Wire Circuit Function
1 - - Not used
2 BK 450 Ground
3 - - Not used
4 RD/BK 142 Battery Positive Voltage
5 - - Not used
6 L-BU 7003 Ignition Relay Output
7 - - Not used
8 PK 3 Ignition 1 Voltage
9 - - Not used
Connector Part Information
  • OEM: DMT 303250-B
  • Service: N/A
  • Description: 9-Way, (GY)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
