Horn Switch (AJ3) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

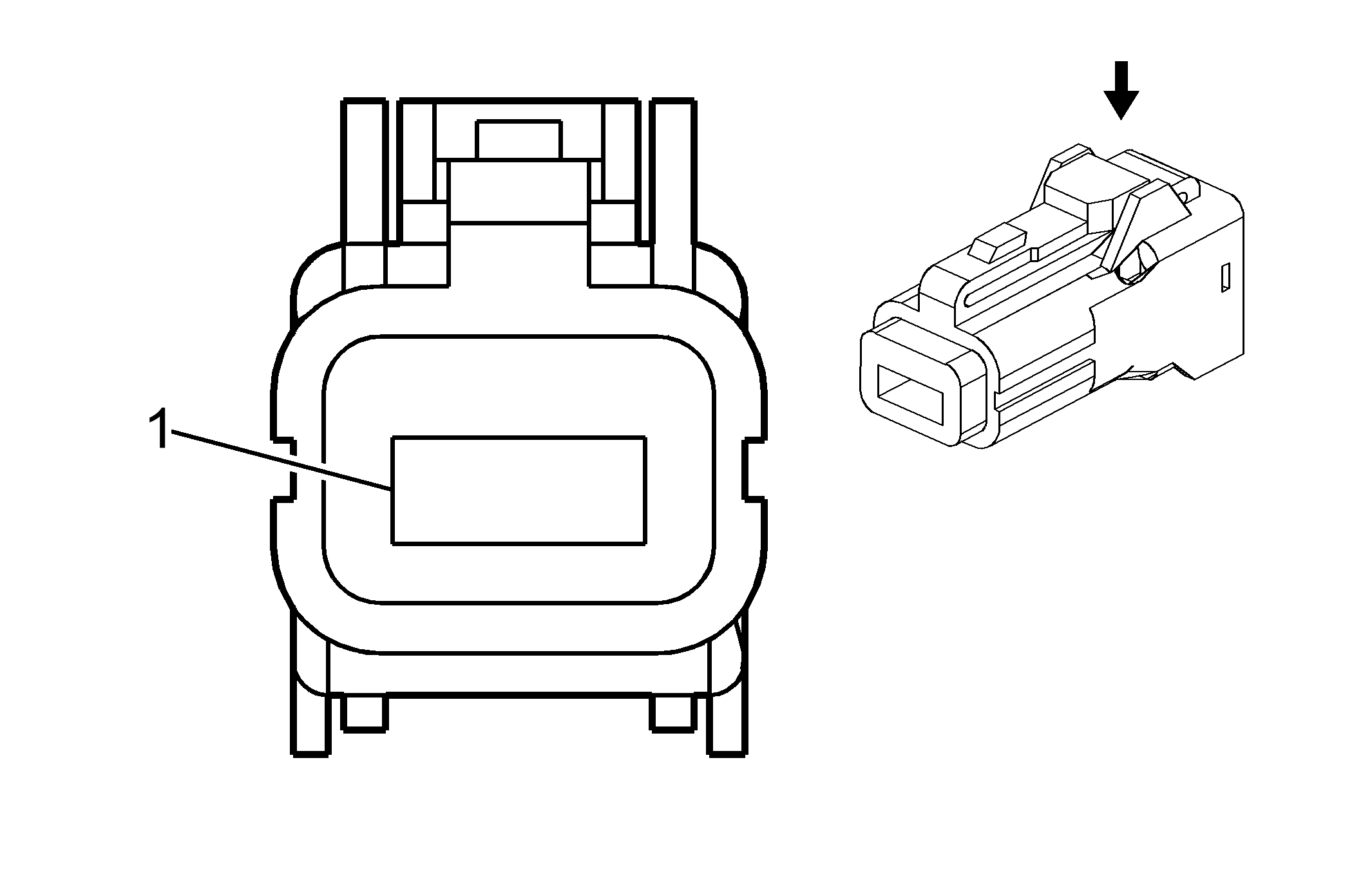

Fig 1: Horn Switch (AJ3) Connector End View
GM1856772Courtesy of GENERAL MOTORS CORP.
Horn Switch (AJ3)

Pin Wire Circuit Function
1 BK/WH 29 Horn Control
Connector Part Information
  • OEM: N/A
  • Service: N/A
  • Description: 1-Way F, (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
