Hood Ajar Switch Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

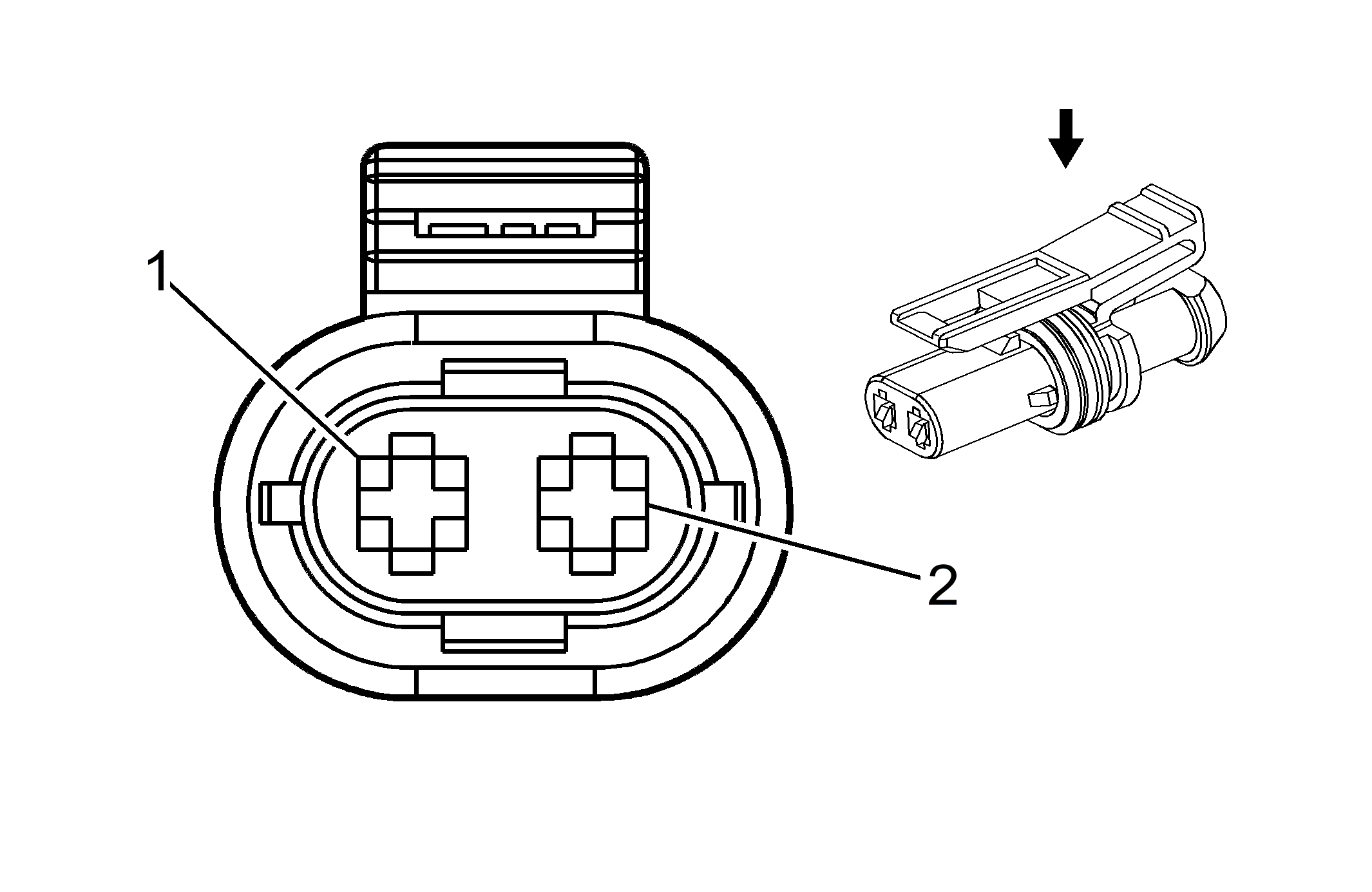

Fig 1: Hood Ajar Switch Connector End View
GM2170051Courtesy of GENERAL MOTORS CORP.
Hood Ajar Switch

Pin Wire Circuit Function
1 PK/BK 109 Hood Ajar Switch Signal
2 RD/WH 440 Battery Positive Voltage
Connector Part Information
  • OEM: 1743695-2
  • Service: N/A
  • Description: 2-Way F, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
